FX600V-AS18 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

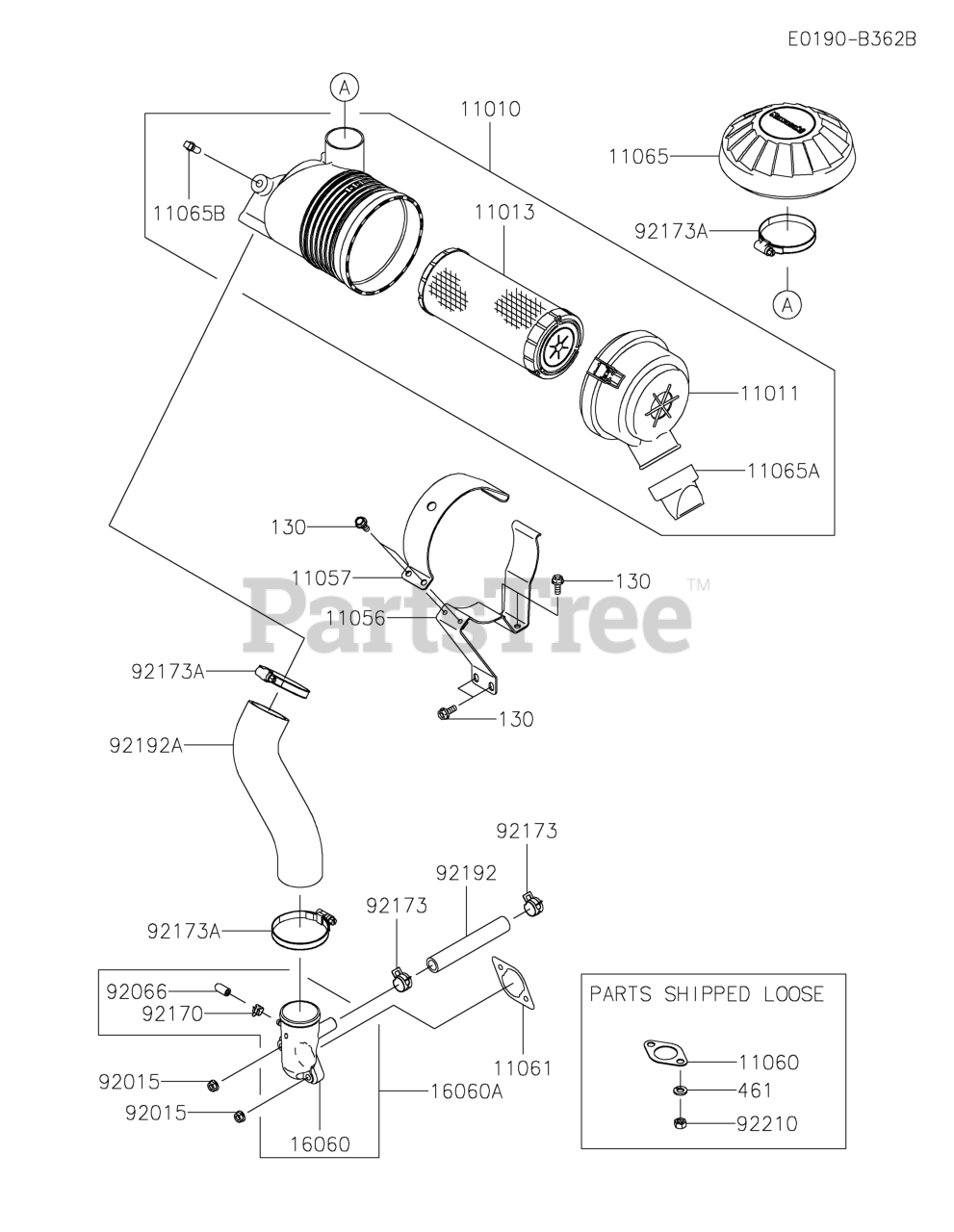

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 11010-7031

FILTER-ASSY-AIR

$94.99

$

In Stock, Qty 8

0

11011

Kawasaki 11011-7058

CASE-AIR FILTER

$45.99

$

In Stock, Qty 9

0

11013

Kawasaki 11013-7048

ELEMENT-AIR FILTER

$31.99

$

In Stock, Qty 20+

0

11056

Kawasaki 11056-7008-9H

BRACKET
(Superseded to 11055-7023-9H)

$

$

Not available

11057

Kawasaki 11057-1260

BRACKET,AIR FILTER

$5.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7016

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-7095

GASKET-AIR FILTER

$4.49

$

In Stock, Qty 20+

0

11065

Kawasaki 11065-1392

CAP,RAIN

$53.99

$

In Stock, only 3 left!

0

11065A

Kawasaki 11065-7031

CAP

$13.99

$

In Stock, Qty 20+

0

11065B

Kawasaki 11065-7032

CAP

$4.49

$

In Stock, only 2 left!

0

16060

Kawasaki 16060-0740

PIPE-INTAKE

$12.99

$

Usually ships in 2-5 days

0

16060A

Kawasaki 16060-0742

PIPE-INTAKE

$14.99

$

In Stock, Qty 7

0

92015

Kawasaki 92015-1367

NUT,FLANGED,6MM

$4.49

$

In Stock, Qty 20+

0

92066

Kawasaki 92066-0095

PLUG

$5.49

$

In Stock, Qty 14

0

92170

Kawasaki 92170-2042

CLAMP

$1.49

$

In Stock, Qty 15

0

92173

Kawasaki 92173-7003

CLAMP

$2.49

$

In Stock, Qty 20+

0

92173A

Kawasaki 92173-7009

CLAMP

$8.49

$

In Stock, only 2 left!

0

92192

Kawasaki 92192-7146

TUBE,12.6X18.6X118

$1.99

$

In Stock, Qty 20+

0

92192A

Kawasaki 92192-7154

TUBE,A/C

$41.99

$

In Stock, Qty 6

0

92210

Kawasaki 92210-7027

NUT,M8

$1.99

$

In Stock, Qty 20+

0

130

Kawasaki 130BA0616

BOLT-FLANGED,6X16
(Superseded to 92002-1090)

$1.49

$

In Stock, only 2 left!

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
