FX600V-AS09 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

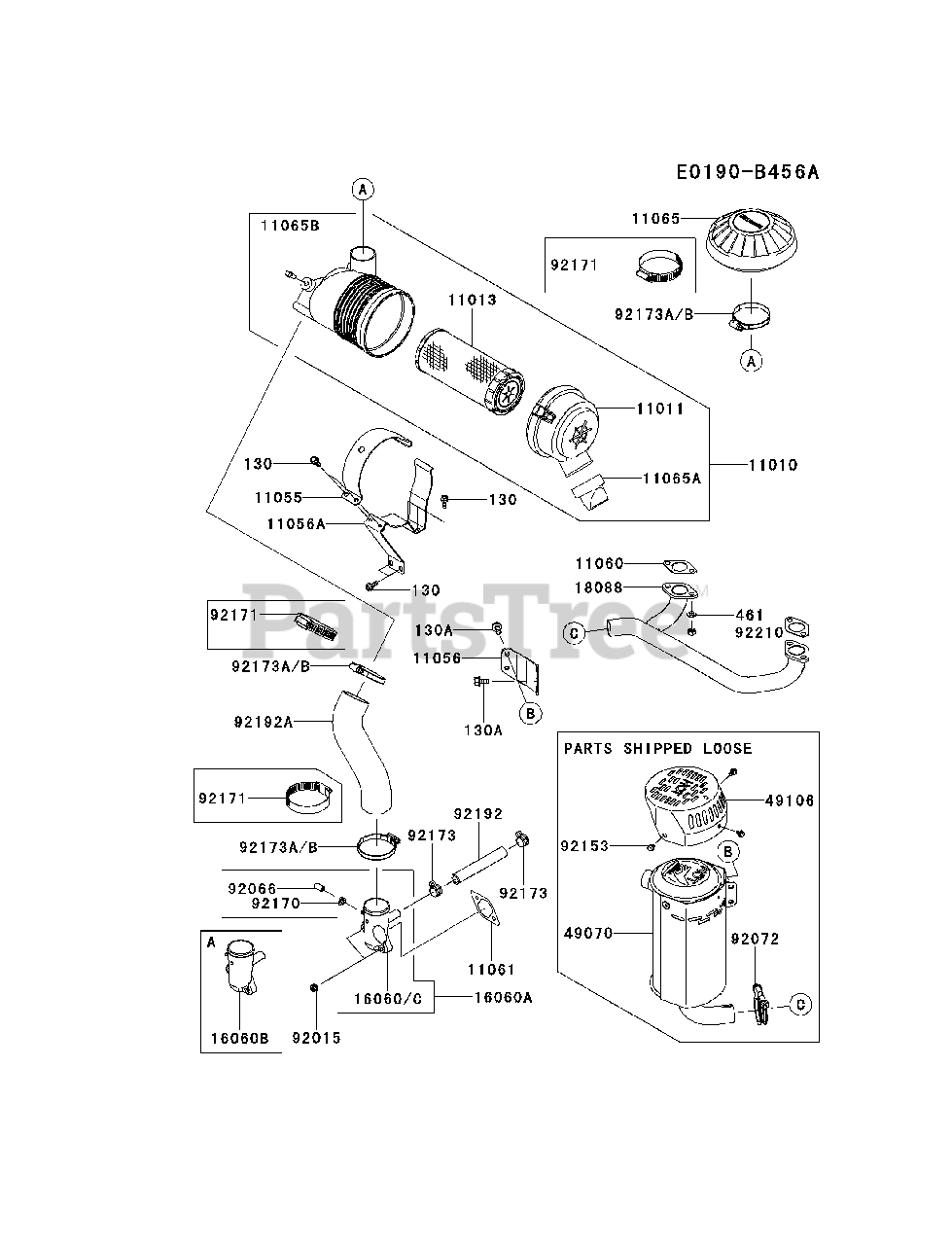

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11010

Kawasaki 11010-7031

FILTER-ASSY-AIR

$94.99

$

In Stock, Qty 8

0

11011

Kawasaki 11011-7058

CASE-AIR FILTER

$45.99

$

In Stock, Qty 9

0

11013

Kawasaki 11013-7048

ELEMENT-AIR FILTER

$31.99

$

In Stock, Qty 20+

0

11055

Kawasaki 11055-7024-9H

BRACKET

$5.99

$

Usually ships in 2-5 days

0

11056

Kawasaki 11056-7007-9H

BRACKET
(Superseded to 99999-0393)

$13.99

$

Usually ships in 2-5 days

0

11056A

Kawasaki 11056-7008-9H

BRACKET
(Superseded to 11055-7023-9H)

$

$

Not available

11060

Kawasaki 11060-7016

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-7095

GASKET,AIR CLEANER

$4.49

$

In Stock, Qty 20+

0

11065

Kawasaki 11065-7026

CAP
(Superseded to 11065-7011)

$

$

Not available

11065A

Kawasaki 11065-7031

CAP

$13.99

$

In Stock, Qty 20+

0

11065B

Kawasaki 11065-7032

CAP

$4.49

$

In Stock, only 2 left!

0

16060B

Kawasaki 16060-7036

PIPE-INTAKE
(Superseded to 160600742)

$14.99

$

In Stock, Qty 7

0

18088

Kawasaki 18088-7010

PIPE-EXHAUST

$

$

Not available

49070

Kawasaki 49070-7033

MUFFLER-COMP
(Superseded to 49070-0039)

$186.99

$

Usually ships in 2-5 days

0

49106

Kawasaki 49106-7023

COVER-MUFFLER

$15.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1367

NUT

$4.49

$

In Stock, Qty 20+

0

92072

Kawasaki 92072-7013

BAND

$8.99

$

In Stock, only 1 left!

0

92153

Kawasaki 92153-7029

BOLT

$1.49

$

In Stock, Qty 12

0

92171

Kawasaki 92171-7010

CLAMP

$8.49

$

In Stock, only 2 left!

0

92173

Kawasaki 92173-7003

CLAMP

$2.49

$

In Stock, Qty 20+

0

92173B

Kawasaki 92173-7009

CLAMP

$8.49

$

In Stock, only 2 left!

0

92192

Kawasaki 92192-7146

TUBE,12.6X18.6X118

$1.99

$

In Stock, Qty 20+

0

92192A

Kawasaki 92192-7154

TUBE,A/C

$41.99

$

In Stock, Qty 6

0

92210

Kawasaki 92210-7027

NUT,M8

$1.99

$

In Stock, Qty 20+

0

130

Kawasaki 130AA0616

BOLT-FLANGED,6X16
(Superseded to 130B0616)

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130AA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
