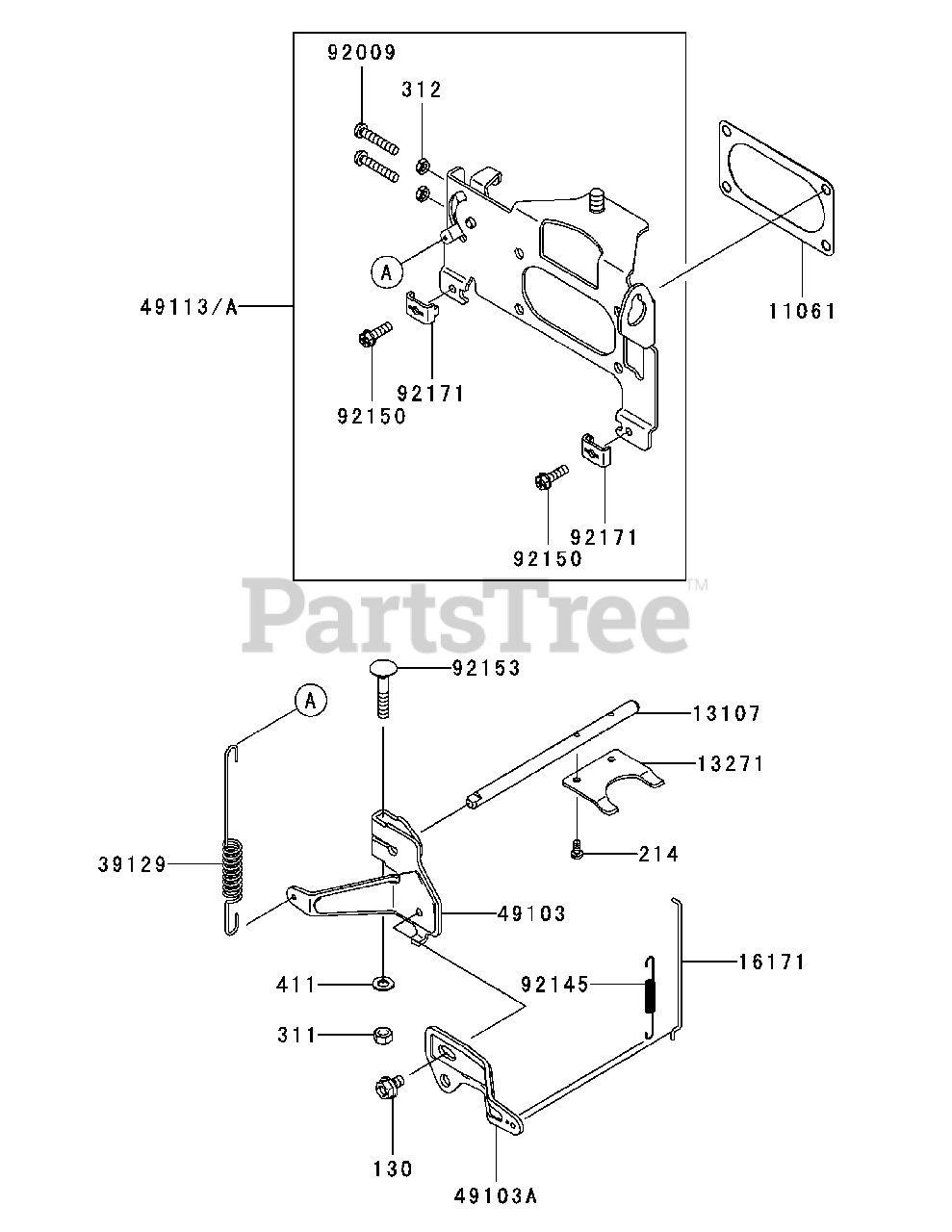

FX1000V-AS04 - Kawasaki Engine Control Equipment Parts Diagram

Engine

Control Equipment Parts Diagram

  • Title

11061

Cub Cadet KM-11061-7056

Gasket,Pipe-Intake

$1.49

$

In Stock, Qty 20+

0

13107

Cub Cadet KM-13107-7040

Shaft
(Superseded to KM-13107-7050)

$11.99

$

Usually ships in 2-5 days

0

13271

Cub Cadet KM-13271-7038

Plate

$3.49

$

In Stock, Qty 11

0

16171

Cub Cadet KM-16171-7018

Link
(Superseded to KM-16171-0038)

$0.99

$

In Stock, only 4 left!

0

39129

Cub Cadet KM-39129-7017

Spring-Governor
(Superseded to KM-39129-7027)

$4.99

$

In Stock, Qty 20+

0

49103

Cub Cadet KM-49103-7009

Arm-Governor

$4.49

$

In Stock, only 1 left!

0

49103A

Cub Cadet KM-49103-7010

Arm-Governor

$3.49

$

Usually ships in 2-5 days

0

49113

Cub Cadet KM-49113-7042

Panel-Comp-Control
(Superseded to KM-49113-0008)

$28.99

$

Usually ships in 2-5 days

0

49113A

Cub Cadet KM-49113-7048

Panel-Comp-Control
(Superseded to KM-49113-0008)

$28.99

$

Usually ships in 2-5 days

0

92009

Cub Cadet KM-92009-2381

Screw,5x30

$0.99

$

In Stock, Qty 5

0

92145

Cub Cadet KM-92145-7050

Spring

$1.49

$

In Stock, only 2 left!

0

92150

Cub Cadet KM-92150-2182

Bolt,5x18

$0.99

$

In Stock, Qty 20+

0

92153

Cub Cadet KM-92153-7033

Bolt,6x35
(Superseded to KM-92154-2697)

$0.99

$

In Stock, Qty 9

0

92171

Cub Cadet KM-92171-7018

Clamp

$2.99

$

In Stock, Qty 12

0

130

Cub Cadet KM-130BA0610

Bolt-Flanged, 6x10

$1.49

$

In Stock, only 4 left!

0

214

Cub Cadet KM-214AA0408

Screw-pan

$3.99

$

In Stock, Qty 15

0

311

Cub Cadet KM-311AA0600

Nut-Hex, 6MM

$0.99

$

In Stock, Qty 20+

0

312

Cub Cadet KM-312B0500

Nut-Hex, 5MM

$

$

Not available

411

Cub Cadet KM-411B0600

Washer-Plain, 6MM
(Superseded to KM-411AA0600)

$4.49

$

In Stock, Qty 12

0
