FX1000V-AS00 - Kawasaki Engine Electric Equipment Parts Diagram

Engine

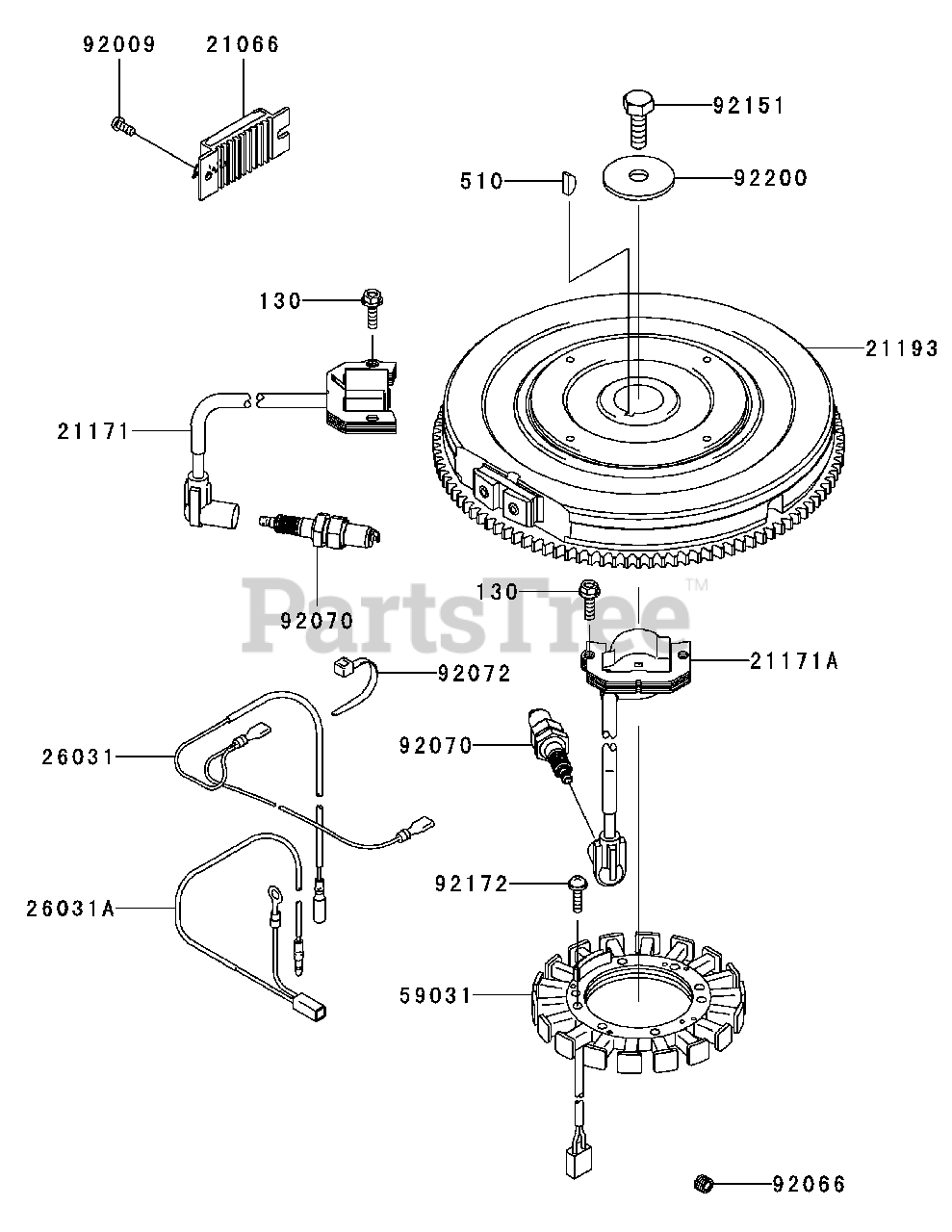

Electric Equipment Parts Diagram

  • Title

21066

Cub Cadet KM-21066-7011

REGULATOR-VOLTAGE

$77.99

$

In Stock, Qty 20+

0

21171

Cub Cadet KM-21171-7028

COIL-ASSY-IGNITION,#1 CYL
(Superseded to KM-21171-0743)

$77.99

$

In Stock, Qty 20+

0

21171A

Cub Cadet KM-21171-7029

COIL-ASSY-IGNITION,#2 CYL
(Superseded to KM-21171-0744)

$77.99

$

In Stock, Qty 20+

0

21193

Cub Cadet KM-21193-7034

FLYWHEEL-ASSY

$

$

Not available

26031

Cub Cadet KM-26031-7033

HARNESS

$6.99

$

In Stock, Qty 13

0

26031A

Cub Cadet KM-26031-7034

HARNESS

$8.99

$

In Stock, Qty 8

0

59031

Cub Cadet KM-59031-7009

COIL-CHARGING

$128.99

$

In Stock, Qty 18

0

92009

Cub Cadet KM-92009-2308

SCREW

$0.99

$

In Stock, Qty 10

0

92066

Cub Cadet KM-92066-7002

PLUG

$

$

Not available

92070

Cub Cadet KM-92070-2088

PLUG-SPARK,BPR5ES(NGK),SOLID
(Superseded to KM-BPR5ES)

$3.99

$

In Stock, Qty 20+

0

92072

Cub Cadet KM-92072-7003

BAND

$1.49

$

In Stock, Qty 5

0

92151

Cub Cadet KM-92151-2097

BOLT,12X30
(Superseded to KM-92154-7003)

$4.99

$

In Stock, Qty 19

0

92172

Cub Cadet KM-92172-7018

SCREW,5X20

$0.99

$

In Stock, Qty 20+

0

92200

Cub Cadet KM-92200-7040

WASHER,12.2X46X3

$3.49

$

Usually ships in 2-5 days

0

130

Cub Cadet KM-130B0620

BOLT-FLANGED,6X20

$

$

Not available

510

Cub Cadet KM-510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
