FX1000V-AS00 - Kawasaki Engine Cylinder Crankcase Parts Diagram

Engine

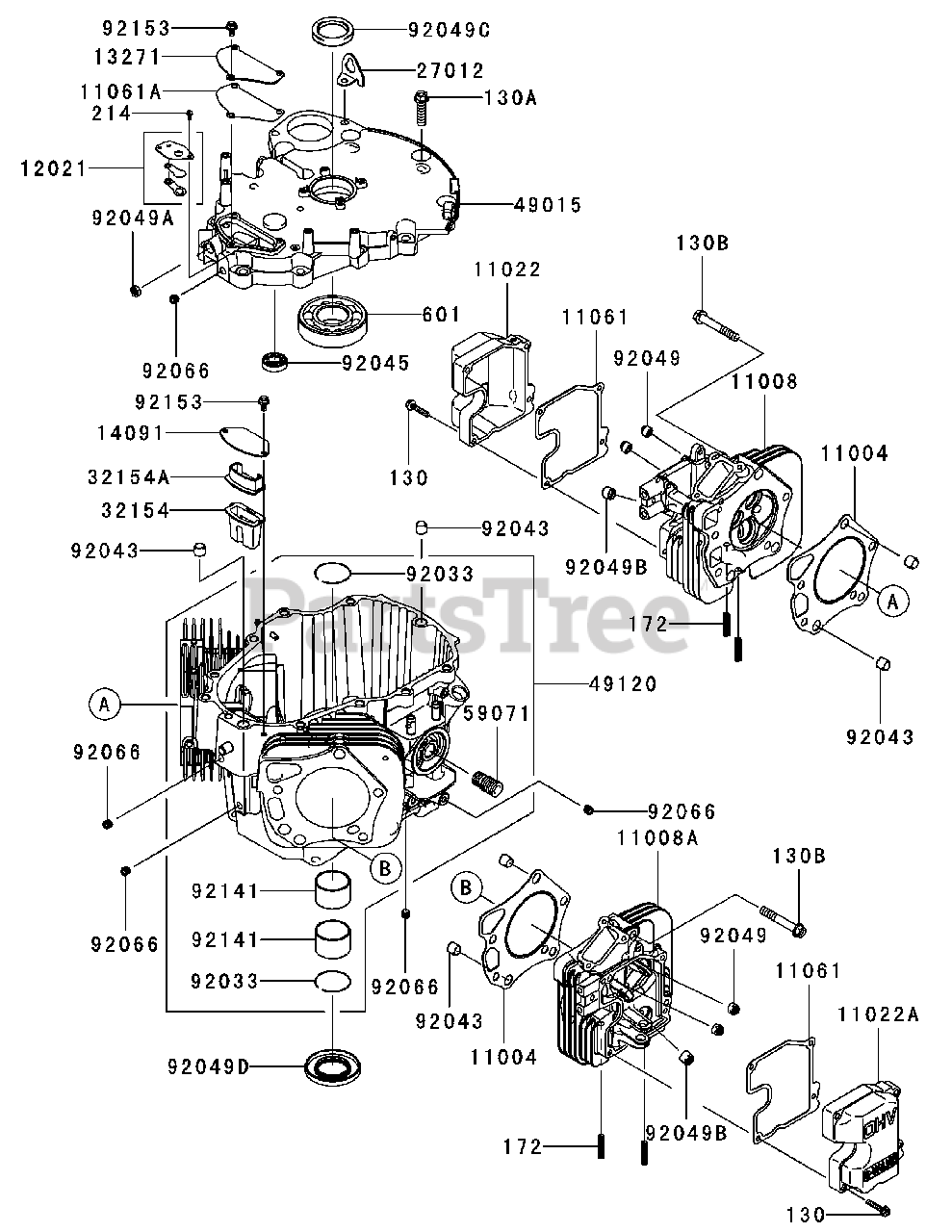

Cylinder Crankcase Parts Diagram

  • Title

11004

Cub Cadet KM-11004-7023

GASKET-HEAD

$40.99

$

In Stock, Qty 20+

0

11008

Cub Cadet KM-11008-7034

HEAD-COMP-CYLINDER,#1
(Superseded to KM-99999-0331)

$

$

Not available

11008A

Cub Cadet KM-11008-7035

HEAD-COMP-CYLINDER,#2
(Superseded to KM-99999-0331)

$

$

Not available

11022

Cub Cadet KM-11022-7012

CASE-ROCKER,#1

$

$

Not available

11022A

Cub Cadet KM-11022-7013

CASE-ROCKER,#2

$

$

Not available

11061

Cub Cadet KM-11061-7055

GASKET,CASE-ROCKER

$14.99

$

In Stock, Qty 20+

0

11061A

Cub Cadet KM-11061-7065

GASKET,BREATHER-COVER

$6.99

$

In Stock, only 1 left!

0

12021

Cub Cadet KM-12021-7003

VALVE-ASSY-REED,BREATHER

$6.49

$

Usually ships in 2-5 days

0

13271

Cub Cadet KM-13271-7037

PLATE,BREATHER-COVER

$2.99

$

Usually ships in 2-5 days

0

14091

Cub Cadet KM-14091-7052

COVER,BREATHER

$

$

Not available

27012

Cub Cadet KM-27012-7004

HOOK

$1.49

$

Usually ships in 2-5 days

0

32154

Cub Cadet KM-32154-7014

PIPE,BREATHER

$2.49

$

Usually ships in 2-5 days

0

32154A

Cub Cadet KM-32154-7015

PIPE,BREATHER

$1.99

$

Usually ships in 2-5 days

0

49015

Cub Cadet KM-49015-7060

COVER-CRANKCASE

$136.99

$

Usually ships in 2-5 days

0

49120

Cub Cadet KM-49120-6169

CRANKCASE-COMP

$682.99

$

Usually ships in 2-5 days

0

59071

Cub Cadet KM-59071-2079

JOINT

$6.49

$

In Stock, Qty 8

0

92033

Cub Cadet KM-92033-7011

RING-SNAP

$0.99

$

Usually ships in 2-5 days

0

92043

Cub Cadet KM-92043-1266

PIN

$1.49

$

Usually ships in 2-5 days

0

92045

Cub Cadet KM-92045-7002

BEARING-BALL,A 15X32X9 6002

$9.49

$

Usually ships in 2-5 days

0

92049

Cub Cadet KM-92049-7001

SEAL-OIL,RVC2 6X11X10.2

$8.49

$

Usually ships in 2-5 days

0

92049A

Cub Cadet KM-92049-7005

SEAL-OIL,SO 8X14X5 HS
(Superseded to KM-92049-7019)

$2.49

$

In Stock, Qty 20+

0

92049B

Cub Cadet KM-92049-7020

SEAL-OIL

$4.49

$

In Stock, Qty 20+

0

92049C

Cub Cadet KM-92049-7024

SEAL-OIL,SD 40X54X9 R HS

$6.49

$

In Stock, Qty 20+

0

92049D

Cub Cadet KM-92049-7025

SEAL-OIL,SD 40X72X8 L VS

$16.99

$

In Stock, Qty 7

0

92066

Cub Cadet KM-92066-7002

PLUG

$

$

Not available

92141

Cub Cadet KM-92141-7002

BEARING-PLANE

$21.99

$

Usually ships in 2-5 days

0

92153

Cub Cadet KM-92153-7043

BOLT,6X12
(Superseded to KM-92154-2938)

$0.99

$

In Stock, Qty 20+

0

130

KM-130B0630

BOLT-FLANGED,6X30

$

$

Not available

130A

Cub Cadet KM-130P1040

BOLT-FLANGED,10X40

$

$

Not available

130B

Cub Cadet KM-130P1065

BOLT-FLANGED,10X65

$

$

Not available

172

Cub Cadet KM-172G0818

BOLT-STUD,8X18
(Superseded to KM-172BA0818)

$1.99

$

In Stock, Qty 20+

0

214

Cub Cadet KM-214B0408

SCREW-PAN,4X8
(Superseded to KM-214AA0408)

$3.99

$

In Stock, Qty 15

0

601

Cub Cadet KM-601A6308

BEARING-BALL
(Superseded to KM-92045-0712)

$

$

Not available

Cub Cadet 02003521P

Replacement Engine
(Superseded to KM-FXT00V-CS00S)

Note: Not shown

$5729.99

$

Usually ships in 3-6 days

0
