FW 45 (5901988) - Ferris FW45 Series 48" Walk-Behind Mower, 26hp Briggs & Stratton, Rear-Discharge Hydraulic Group Parts Diagram

FW45 Series 48" Walk-Behind Mower, 26hp Briggs & Stratton, Rear-Discharge

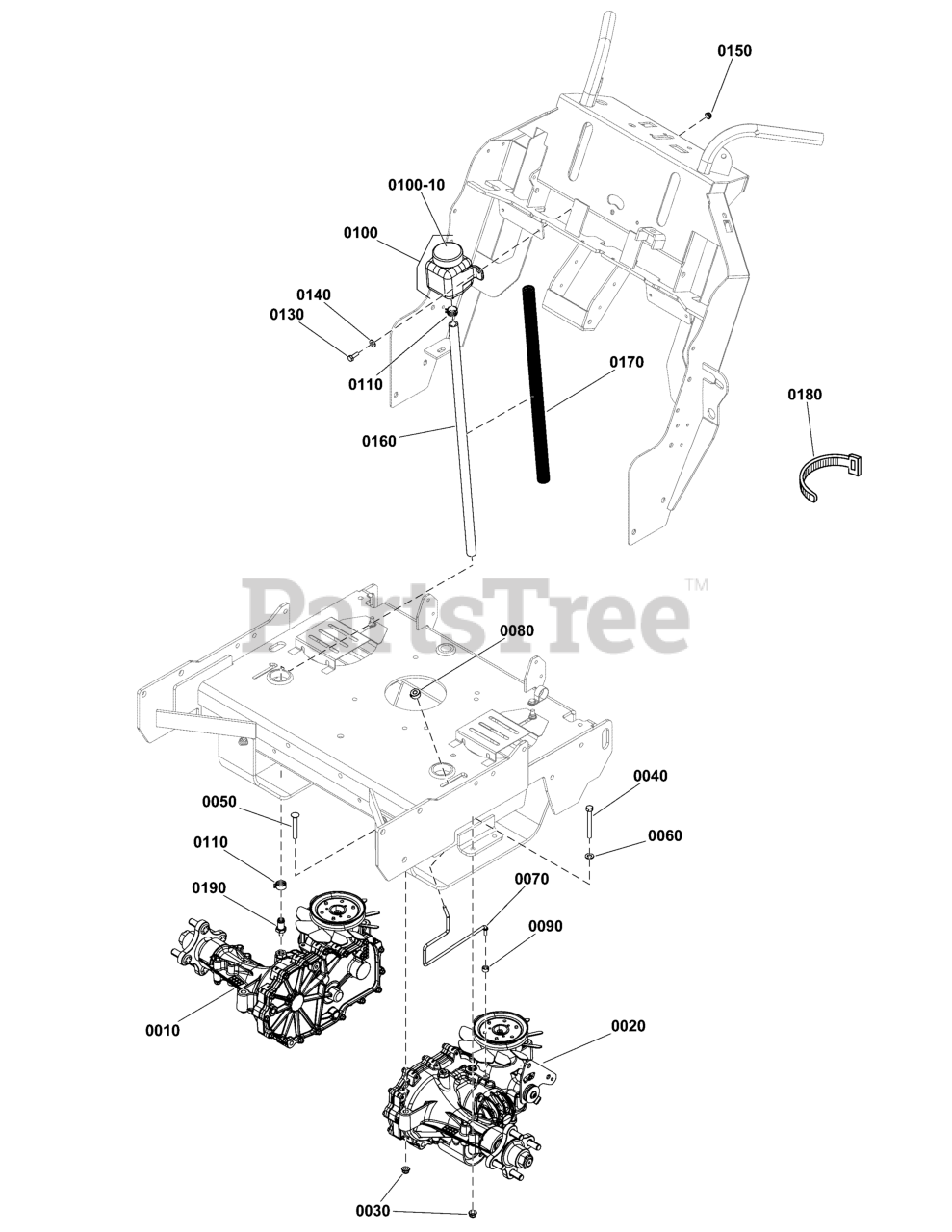

Hydraulic Group Parts Diagram

  • Title

0010

Ferris 5109241

TRANSAXLE, ZT-3100, RH,ZL-KMFE-SL5C-1PXX
(Superseded to 84006964)

$1267.99

$

Usually ships in 2-12 days

0

0020

Ferris 5109240

TRANSAXLE, ZT-3100, LH,ZL-GMFE-SL5B-1PXX
(Superseded to 84006963)

$1288.99

$

Usually ships in 2-12 days

0

0030

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0040

Ferris 5025011X22

BOLT, 5/16-18 X 2-3/4, GD 5, YZ
(Superseded to 5025011X22YP)

$3.49

$

Usually ships in 2-12 days

0

0050

Ferris 5025145X18

BOLT, 5/16-18 X 2-1/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X18FS)

$4.99

$

Usually ships in 2-12 days

0

0060

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0070

Ferris 5104532

ROD, HYDRO RELEASE, WALKS
(Superseded to 5104532FS)

$14.99

$

Usually ships in 2-12 days

0

0080

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

0090

Ferris 5022481

COLLAR, Set, 1/4"
(Superseded to 5022481SM)

$6.99

$

Usually ships in 2-12 days

0

0100

Ferris 5100473

RESERVOIR, HYDRO OIL, 350 ML
(Superseded to 5100473SM)

$40.99

$

In Stock, only 1 left!

0

0100-10

Ferris 5100778X1

RESERVIOR CAP

Note: (SV)

$20.99

$

Usually ships in 2-12 days

0

0110

Ferris 5025474

CLAMP, HOSE, .75 FREE DIA.
(Superseded to 5025474SM)

$3.49

$

Usually ships in 2-12 days

0

0130

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0140

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0150

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0160

Ferris 5050857X24

HOSE, 1/2" PUSH-ON, 24.00"
(Superseded to 5050857X24YP)

$21.99

$

Usually ships in 2-12 days

0

0170

Ferris 5050862X20

WIRE LOOM, 3/4 ID X 20 IN
(Superseded to 5050862X20FS)

$4.49

$

Usually ships in 2-12 days

0

0180

Ferris 5100772

TIE, SELF-LOCKING, 15"

$

$

Currently unavailable

0190

Ferris 5103687

FITTING, #6 O-RING 1/2 HOSE BARB, STRAIGHT
(Superseded to 5103687YP)

$30.99

$

Usually ships in 2-12 days

0
