FW 45 (5901969) - Ferris FW45 CC Series 61" Walk-Behind Mower, 28hp Briggs & Stratton, Side-Discharge Front Frame Group Parts Diagram

FW45 CC Series 61" Walk-Behind Mower, 28hp Briggs & Stratton, Side-Discharge

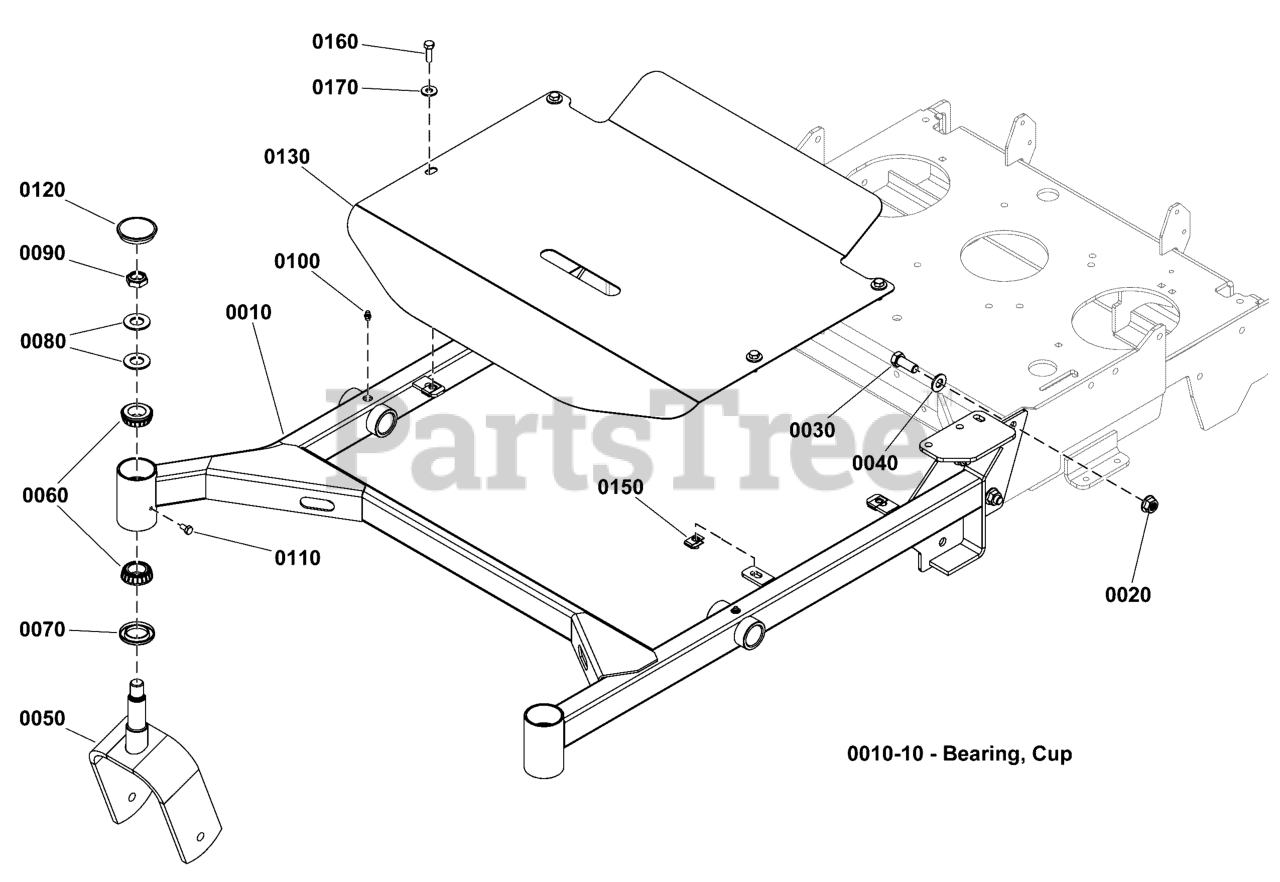

Front Frame Group Parts Diagram

  • Title

0010

Ferris 5422119B

WELD, FRONT FRAME, W45, 61 - RED

$

$

Currently unavailable

0010-10

Ferris 5020883

CUP, BEARING (SV)

Note: (SV)

$8.99

$

Usually ships in 2-12 days

0

0020

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

0030

Ferris 5025017X10

BOLT, 1/2-13 X 1-1/4 GD5 CZ
(Superseded to 5025017X10YP)

$3.99

$

Usually ships in 2-12 days

0

0040

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

0050

Ferris 5401759B

WELD., FRONT CASTER YOKES - RED
(Superseded to 5401759BFS)

$201.99

$

Usually ships in 2-12 days

0

0060

Ferris 5020884

BEARING, TAPERED ROLLER, 1"
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

0070

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, Qty 5

0

0080

Ferris 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

0090

Ferris 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

0100

Ferris 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

0110

Ferris 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

Usually ships in 2-12 days

0

0120

Ferris 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

0130

Ferris 5420467B

PLATE, FRONT GUARD, W45 - RED
(Superseded to 5420467BFS)

$111.99

$

Usually ships in 2-12 days

0

0150

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

0160

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0170

Ferris 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0
