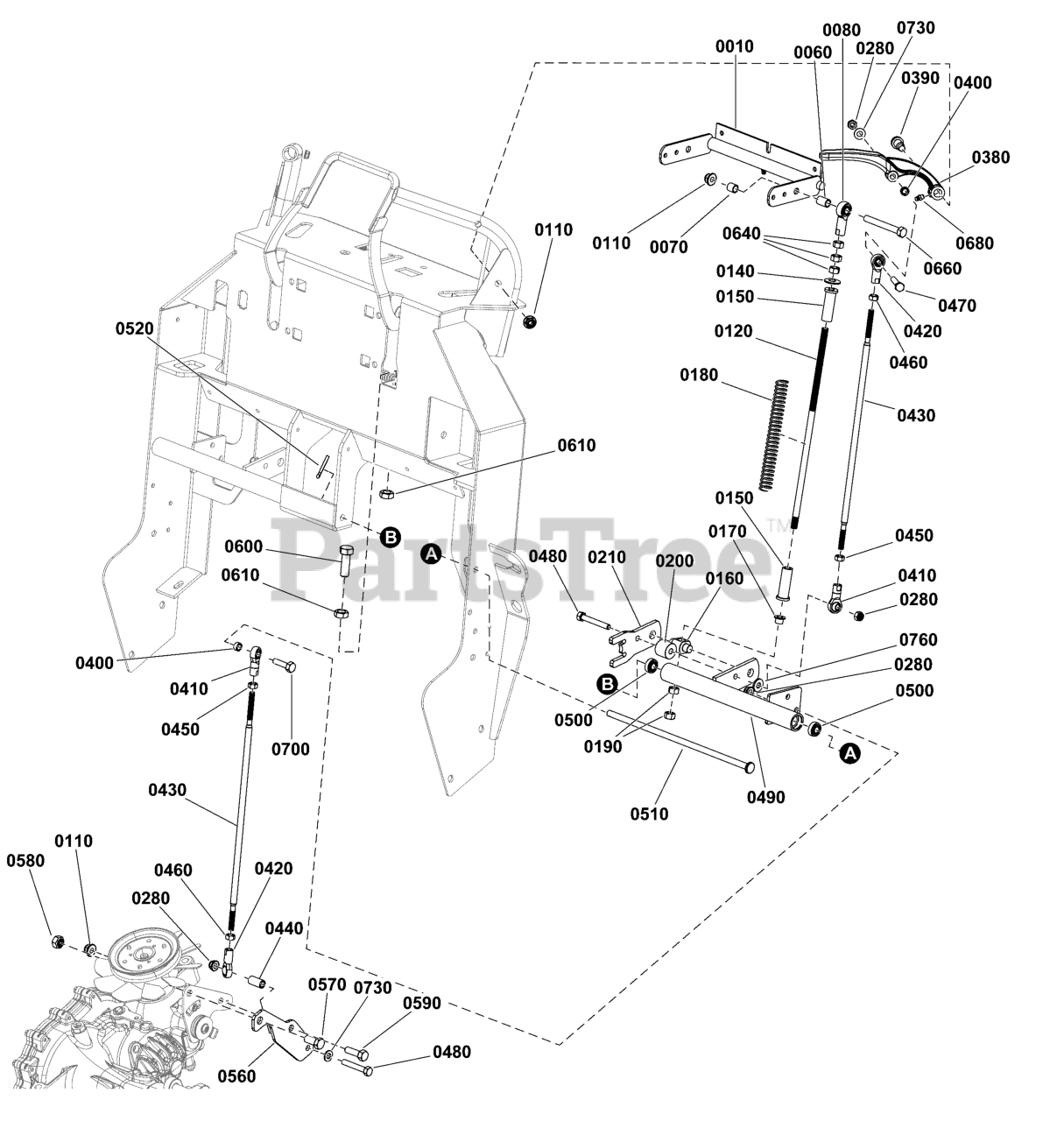

FW 45 (5901893) - Ferris FW45 CC Series 52" Walk-Behind Mower, 28hp Briggs & Stratton, Side-Discharge Motion Control Group - Steering Levers S/N: 4001694244 and below Parts Diagram

FW45 CC Series 52" Walk-Behind Mower, 28hp Briggs & Stratton, Side-Discharge

Motion Control Group - Steering Levers S/N: 4001694244 and below Parts Diagram

  • Title

0010

Ferris 5412891AA

WELD, SPEED CONTROL, SW35 - BLK
(Superseded to 5412891AAFS)

$60.99

$

Usually ships in 2-12 days

0

0060

Ferris 5047199

SPACER, .38 x .50 x .75
(Superseded to 5047199FS)

$7.49

$

Usually ships in 2-12 days

0

0070

Ferris 5101640

SPACER, .38 X .50 X .50, YZ
(Superseded to 5101640YP)

$7.49

$

Usually ships in 2-12 days

0

0080

Ferris 5021683

BALL JOINT, 3/8-24 FEMALE
(Superseded to 5021683FS)

$32.99

$

Usually ships in 2-12 days

0

0110

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0120

Ferris 5104229

ROD, CONTROL SYSTEM, WALK
(Superseded to 5104229FS)

$39.99

$

Usually ships in 2-12 days

0

0140

Ferris 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0

0150

Ferris 5104375

FLANGED BUSHING, 3/8IDX.63ODX.8125FL
(Superseded to 5104375YP)

$5.99

$

Usually ships in 2-12 days

0

0160

Ferris 5103022

TRUNION, 1/2" POSTS, STAINLESS
(Superseded to 5103022FS)

$34.99

$

Usually ships in 2-12 days

0

0170

Ferris 5102773

BUSHING, .38ID X .47 OD X .38L, FL
(Superseded to 5102773FS)

$2.99

$

Usually ships in 2-12 days

0

0180

Ferris 5104374

SPRING,COMP,.645IDX8.00LGX.080WR,BLK E-C
(Superseded to 5104374FS)

$4.99

$

Usually ships in 2-12 days

0

0190

Ferris 5025034

NUT, 3/8-16 HEX, YZ
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

0200

Ferris 5104351

SPACER, .33 X 1.00 X .88, CZ
(Superseded to 5104351FS)

$4.49

$

Usually ships in 2-12 days

0

0210

Ferris 5414411AA

TAB, PIVOT, W35 - BLK
(Superseded to 5414411AAFS)

$7.49

$

Usually ships in 2-12 days

0

0280

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0380

Ferris 5102556AA

HANDLE, REVERSING - BLK
(Superseded to 5102556AAFS)

$38.99

$

Usually ships in 2-12 days

0

0390

Ferris 5109888

BOLT, 3/8-16 X 1/2, 1.00 SHOULDER, CZ
(Superseded to 5109888FS)

$7.99

$

Usually ships in 2-12 days

0

0400

Ferris 5102463

SPACER, .33 X .50 X .25, PM, CZ
(Superseded to 5102463YP)

$5.49

$

Usually ships in 2-12 days

0

0410

Ferris 5104494

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE
(Superseded to 5104494YP)

$18.99

$

Usually ships in 2-12 days

0

0420

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

In Stock, only 1 left!

0

0430

Ferris 5104159

ROD, 5/16-24 X 15.48, LH-RH, CZ
(Superseded to 5104159FS)

$9.49

$

Usually ships in 2-12 days

0

0440

Ferris 84008514

SPACER (.325 X .496 X 1.000)

$

$

Currently unavailable

0450

Ferris 5023212

NUT, 5/16-24 HEX, LH
(Superseded to 5023212SM)

$3.49

$

In Stock, only 2 left!

0

0460

Ferris 5025033

NUT, Hex, 5/16-24
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

0470

Ferris 5025011X18

BOLT, 5/16-18 X 2-1/4" GD5 YZ
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

0480

Ferris 5025011X16

BOLT, 5/16-18 X 2" GD5 YZ
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

0490

Ferris 5414184AA

WELD, W35 CONTROL PIVOT, LH - BLK
(Superseded to 5414184AAFS)

$114.99

$

Usually ships in 2-12 days

0

0500

Ferris 5102003

BEARING, .375" ID X .875" OD X .341" THK
(Superseded to 5102003YP)

$9.49

$

Usually ships in 2-12 days

0

0510

Ferris 5104171

ROD, 3/8 X 12, HEADED - CZ
(Superseded to 5104171FS)

$10.99

$

Usually ships in 2-12 days

0

0520

Ferris 5025203X10

PIN, COTTER, 1/8 X 1-1/4
(Superseded to 5025203X10SM)

$3.99

$

In Stock, only 1 left!

0

0560

Ferris 84007883

MOUNT

$9.49

$

Usually ships in 2-12 days

0

0570

Ferris 5025015X6

BOLT, 7/16-14 X 3/4, GD 5 YZ
(Superseded to 5025015X6SM)

$3.99

$

Usually ships in 2-12 days

0

0580

Ferris 5025044

NUT, 7/16-14 HEX TOP LOCK
(Superseded to 5025044SM)

$4.49

$

Usually ships in 2-12 days

0

0590

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

0600

Ferris 5025426

BOLT, 1/2-20 X 2-1/2, FLT
(Superseded to 5025426FS)

$14.99

$

Usually ships in 2-12 days

0

0610

Ferris 5025089

NUT, 1/2-20 Hex Jam
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 19

0

0640

Ferris 5025035

NUT, 3/8-24 HEX (SV)
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

0660

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

0680

Ferris 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

0690

Ferris 5414183AA

WELD, W35 CONTROL PIVOT, RH - BLK

Note: (Not illustrated)

$

$

Currently unavailable

0700

Ferris 5025055X10

BOLT, 5/16-18 X 1-1/4 GD5 TFL, CZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

0730

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0760

Ferris 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0
