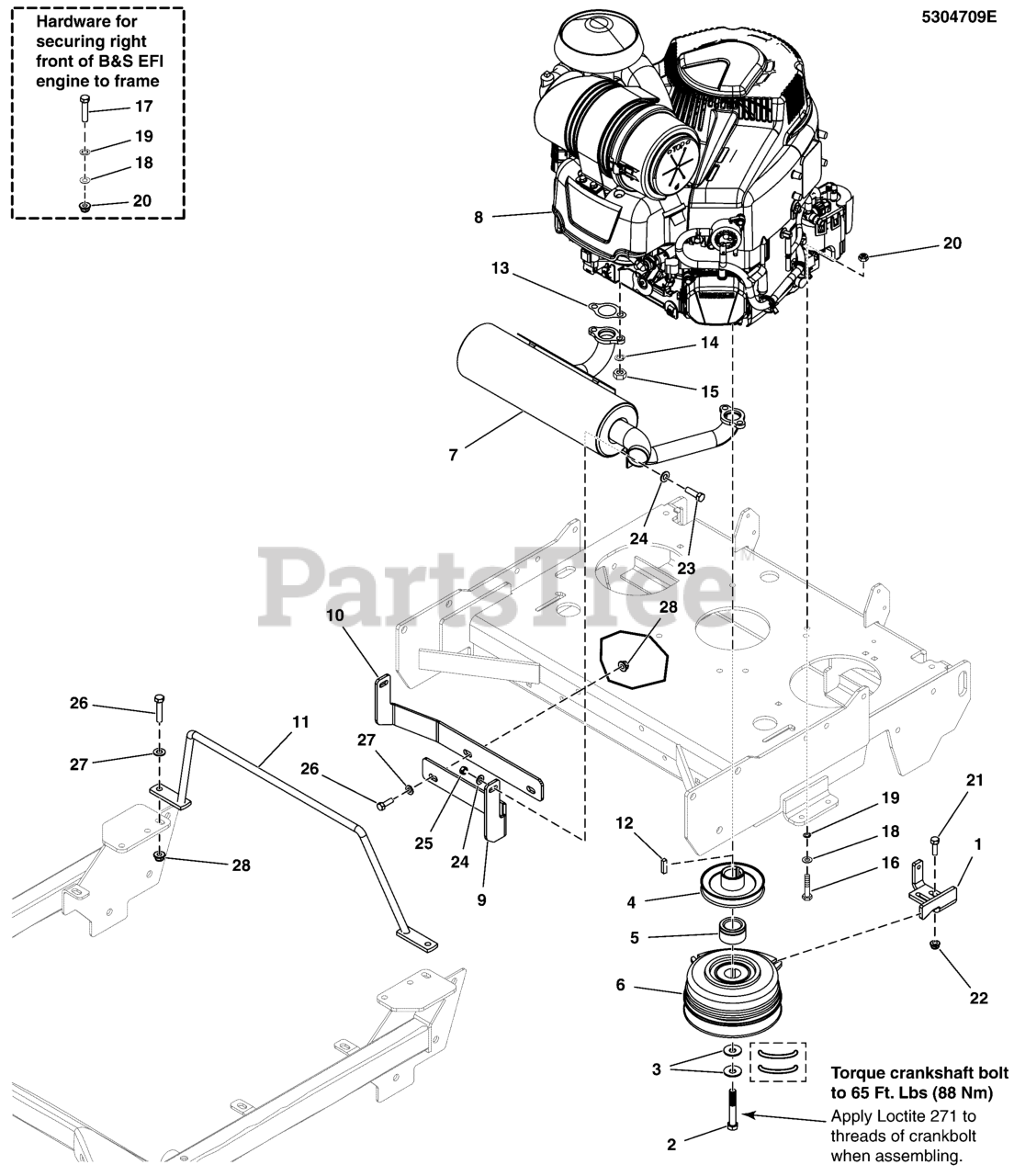

FW 45 (5901893) - Ferris FW45 CC Series 52" Walk-Behind Mower, 28hp Briggs & Stratton, Side-Discharge Engine & PTO Group - Briggs & Stratton EFI (Remote Oil Tank) S/N: 4001694245 and above Parts Diagram

FW45 CC Series 52" Walk-Behind Mower, 28hp Briggs & Stratton, Side-Discharge

Engine & PTO Group - Briggs & Stratton EFI (Remote Oil Tank) S/N: 4001694245 and above Parts Diagram

  • Title

1

Ferris 5412326A

PLATE, CLUTCH ANCHOR - BLK

$14.99

$

Usually ships in 2-12 days

0

2

Ferris 5102865

BOLT, CRANKSHAFT,7/16-20X2-3/4, GD8
(Superseded to 5102865YP)

$5.49

$

In Stock, only 2 left!

0

3

Ferris 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

$4.49

$

In Stock, only 4 left!

0

4

Ferris 5104236

PULLEY, CRANKSHAFT, 1.125ID X 4.50OD, OS
(Superseded to 5104236FS)

$44.99

$

Usually ships in 2-12 days

0

5

Ferris 5047033

SPACER, 1.13 X 1.75 X 1.03, CZ
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

6

Ferris 5105090

CLUTCH,WARNER,200 'lbs,1.13
(Superseded to 5105090YP)

$456.99

$

In Stock, only 3 left!

0

7

Ferris 5104355

MUFFLER, 26/28, B&S VANG, EFI TWR/WALK
(Superseded to 5104355FS)

$310.99

$

Usually ships in 2-12 days

0

8

ENGINE, B&S, EFI, OIL GUARD (49E877-0008-G1)

Note: (S/N: 4001858852 and below)

$

$

Not available

8

BRIGGS & STRATTON ENGINE, 49E877-0021-G1

Note: (S/N: 4001858853 and above)

$

$

Not available

9

Ferris 5415276A

PLATE, MUFFLER SUPPORT, LH, W35 - BLK

$15.99

$

Usually ships in 2-12 days

0

10

Ferris 5415277A

PLATE, MUFFLER SUPPORT, RH, W35 - BLK

$20.99

$

Usually ships in 2-12 days

0

11

Ferris 5421108AA

WELD, MUFFLER/02, GUARD, W45 - BLK

$

$

Currently unavailable

12

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

13

Ferris 273485

GASKET, EXHAUST
(Superseded to 690970)

$4.99

$

In Stock, Qty 20+

0

14

Ferris 5023217

WASHER, 5/16 LIGHT LOCK
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025025X14

BOLT, 5/16-24 X 1-3/4, GD8, PHOS
(Superseded to 5025025X14YP)

$4.49

$

Usually ships in 2-12 days

0

17

Ferris 5025025X12

BOLT, 5/16-24 X 1-1/2, GD8, PHOS
(Superseded to 5025025X12YP)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

19

Ferris 5025188

WASHER, 5/16 INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

20

Ferris 5025616

NUT, 5/16-24, TOP LOCK FLANGE, GD8 PHOS
(Superseded to 5025616YP)

$3.99

$

In Stock, only 2 left!

0

21

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

22

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

24

Ferris 5025292

WASHER, 5/16 F436 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

25

Ferris 80003675

NUT, 5/16-18, HEX, CNTR LK,ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

26

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

27

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

28

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0
