FW 45 (5901893) - Ferris FW45 CC Series 52" Walk-Behind Mower, 28hp Briggs & Stratton, Side-Discharge Electrical Group S/N: 4001694245 and above Parts Diagram

FW45 CC Series 52" Walk-Behind Mower, 28hp Briggs & Stratton, Side-Discharge

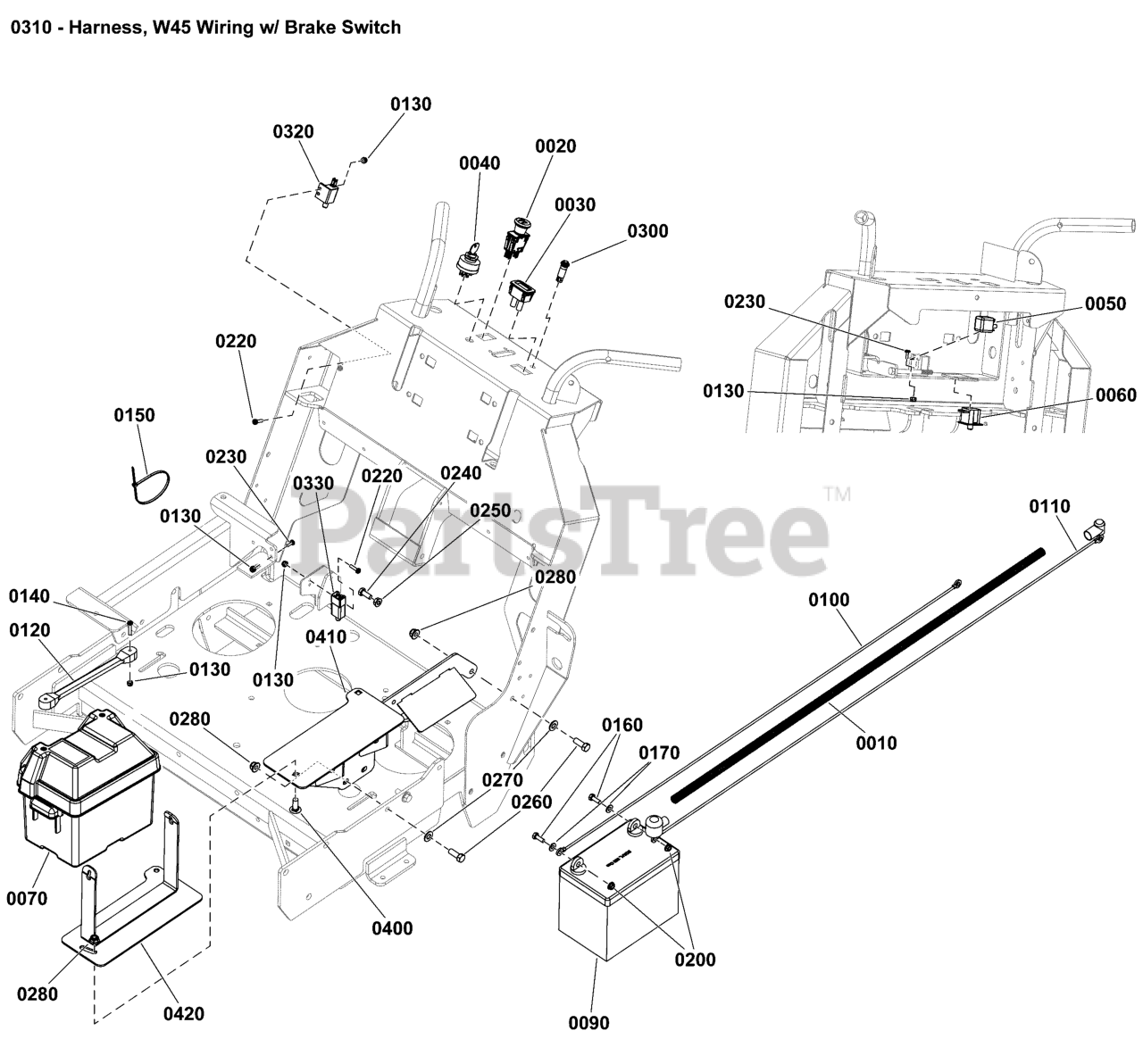

Electrical Group S/N: 4001694245 and above Parts Diagram

  • Title

0010

Ferris 5050927X39

WIRE LOOM, 3/8 ID X 39 IN
(Superseded to 5050927X39FS)

$4.99

$

Usually ships in 2-12 days

0

0020

Ferris 5104697

PTO SWITCH, MOMENTARY, SMALL KNOB
(Superseded to 5104697FS)

$30.99

$

In Stock, Qty 14

0

0030

Ferris 84008510

HOURMETER

$33.99

$

In Stock, Qty 10

0

0040

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

In Stock, only 3 left!

0

0050

Ferris 5021766

RELAY, 12 VOLT, 40 AMP
(Superseded to 5021766SM)

$24.99

$

Usually ships in 2-12 days

0

0060

Ferris 5101280

SWITCH, PLUNGER, NO/NC SNAP-IN, LOW PROFILE
(Superseded to 5101280YP)

$30.99

$

In Stock, Qty 9

0

0070

Ferris 5100688

BATTERY BOX, W/ DRAIN HOLE
(Superseded to 5100688YP)

$65.99

$

Usually ships in 2-12 days

0

0090

BATTERY, 11U1L, 350 CCA

$

$

Not available

0100

Ferris 5105301

BATTERY CABLE,NEG, 42, 1/4-5/16
(Superseded to 5105301FS)

$15.99

$

Usually ships in 2-12 days

0

0110

Ferris 5105300

BATTERY CABLE, POS, 47, 1/4-5/16
(Superseded to 5105300FS)

$25.99

$

Usually ships in 2-12 days

0

0120

Ferris 5021670

STRAP, RUBBER
(Superseded to 5021670SM)

$13.99

$

In Stock, only 1 left!

0

0130

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

0140

Ferris 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

0150

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

0160

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0170

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0200

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

0220

Ferris 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

0230

Ferris 5025179X4

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$

$

Currently unavailable

0240

Ferris 5025249

BOLT, M8-1.25 X 20 MM GD 8.8
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

0250

Ferris 5025355

NUT, M8-1.25 Hex Serrated Flange
(Superseded to 5025355SM)

$3.49

$

Usually ships in 2-12 days

0

0260

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

0270

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0280

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0300

Ferris 5103809

LIGHT, INDICATOR, PANEL, LED, RED
(Superseded to 5103809YP)

$29.99

$

Usually ships in 2-12 days

0

0310

Ferris 5108762

HARNESS, W45 WIRING W/ BRAKE SW
(Superseded to 5108762FS)

$186.99

$

Usually ships in 2-12 days

0

0320

Ferris 5021451

SWITCH, PLUNGER, N.O., BOLT-ON
(Superseded to 5021451SM)

$11.99

$

In Stock, Qty 13

0

0330

Ferris 1717050

SWITCH, PLUNGER, N.O./N.C.
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 20+

0

0400

Ferris 80004566

BOLT,3/8-16X1.00,RD SH SQ NK,GR 5,ZC/CL
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

0410

Ferris 5421220AA

WELD, MNT BATTERY LOWER, OG, W45 - BLK

$

$

Currently unavailable

0420

Ferris 5421221AA

WELD, MNT BATTERY UPPER, OG, W45 - BLK

$

$

Currently unavailable
