FW 45 (5901891) - Ferris FW45 Series 52" Walk-Behind Mower, 21hp Kawasaki, Side-Discharge Engine and PTO Group S/N: 4001694244 and Below Parts Diagram

FW45 Series 52" Walk-Behind Mower, 21hp Kawasaki, Side-Discharge

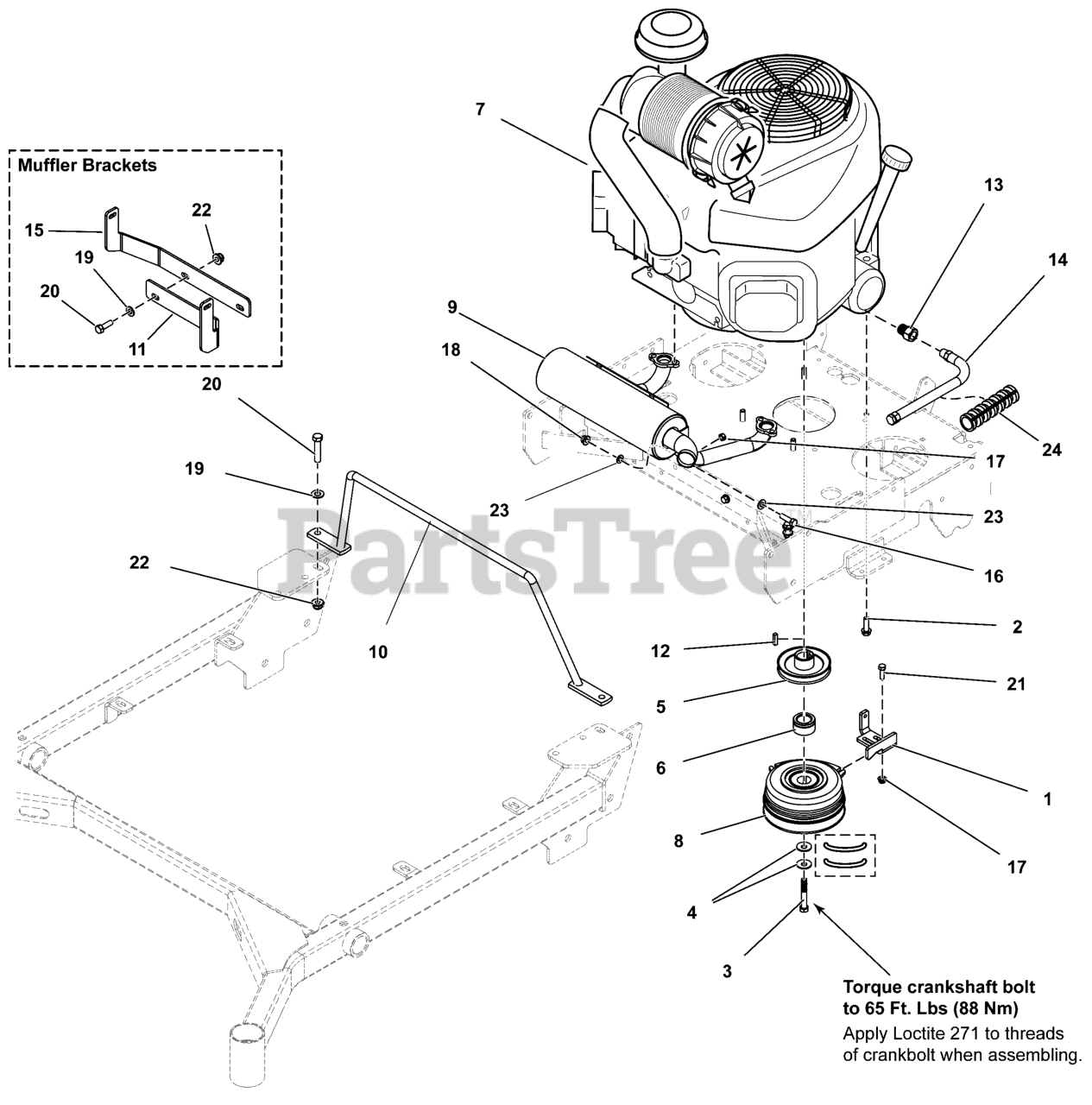

Engine and PTO Group S/N: 4001694244 and Below Parts Diagram

  • Title

1

Ferris 5412326AA

PLATE, CLUTCH ANCHOR - BLK

$

$

Currently unavailable

2

Ferris 5025640

BOLT, 3/8-16X1-1/4 SF, GD8, PHOS, SER HD
(Superseded to 84003591)

$3.49

$

In Stock, only 4 left!

0

3

Ferris 5102865

BOLT, CRANKSHAFT, 7/16 X 2-3/4, PATCH, CZ
(Superseded to 5102865YP)

$5.49

$

In Stock, only 2 left!

0

4

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 4 left!

0

5

Ferris 5104236

PULLEY, CRANKSHAFT, 1.125ID X 4.50OD, OS
(Superseded to 5104236FS)

$44.99

$

Usually ships in 2-12 days

0

6

Ferris 5047033

SPACER, 1.13 X 1.75 X 1.03, CZ
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

7

ENGINE, 20.5HP KAWA, FX651V

Note: (Refer to Note:*)

$

$

Not available

8

Ferris 5105090

CLUTCH WARNER 200 FT-LB 1.13 X 6.323
(Superseded to 5105090YP)

$456.99

$

In Stock, only 3 left!

0

9

Ferris 5104163

MUFFLER, HORIZONTAL, KAWASAKI
(Superseded to 5104163FS)

$307.99

$

Usually ships in 2-12 days

0

10

Ferris 5412353AA

WELD, MUFFLER GUARD - BLK

$

$

Currently unavailable

11

Ferris 5415276AA

PLATE, MUFFLER SUPPORT, LH, W35 - BLKK
(Superseded to 5415276AAFS)

$18.99

$

Usually ships in 2-12 days

0

12

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

13

Ferris 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

14

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

15

Ferris 5415277AA

PLATE, MUFFLER SUPPORT, RH, W35 - BLK
(Superseded to 5415277AAFS)

$20.99

$

Usually ships in 2-12 days

0

16

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

17

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

19

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

21

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

22

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

23

Ferris 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

24

Ferris 5050862X8

WIRE LOOM, 3/4 ID X 8.00" LG

$

$

Currently unavailable
