FW 45 (5901884) - Ferris FW45 CC Series 52" Walk-Behind Mower, 28hp Briggs & Stratton, Side-Discharge Handle Bar Group S/N: 4001694245 and above Parts Diagram

FW45 CC Series 52" Walk-Behind Mower, 28hp Briggs & Stratton, Side-Discharge

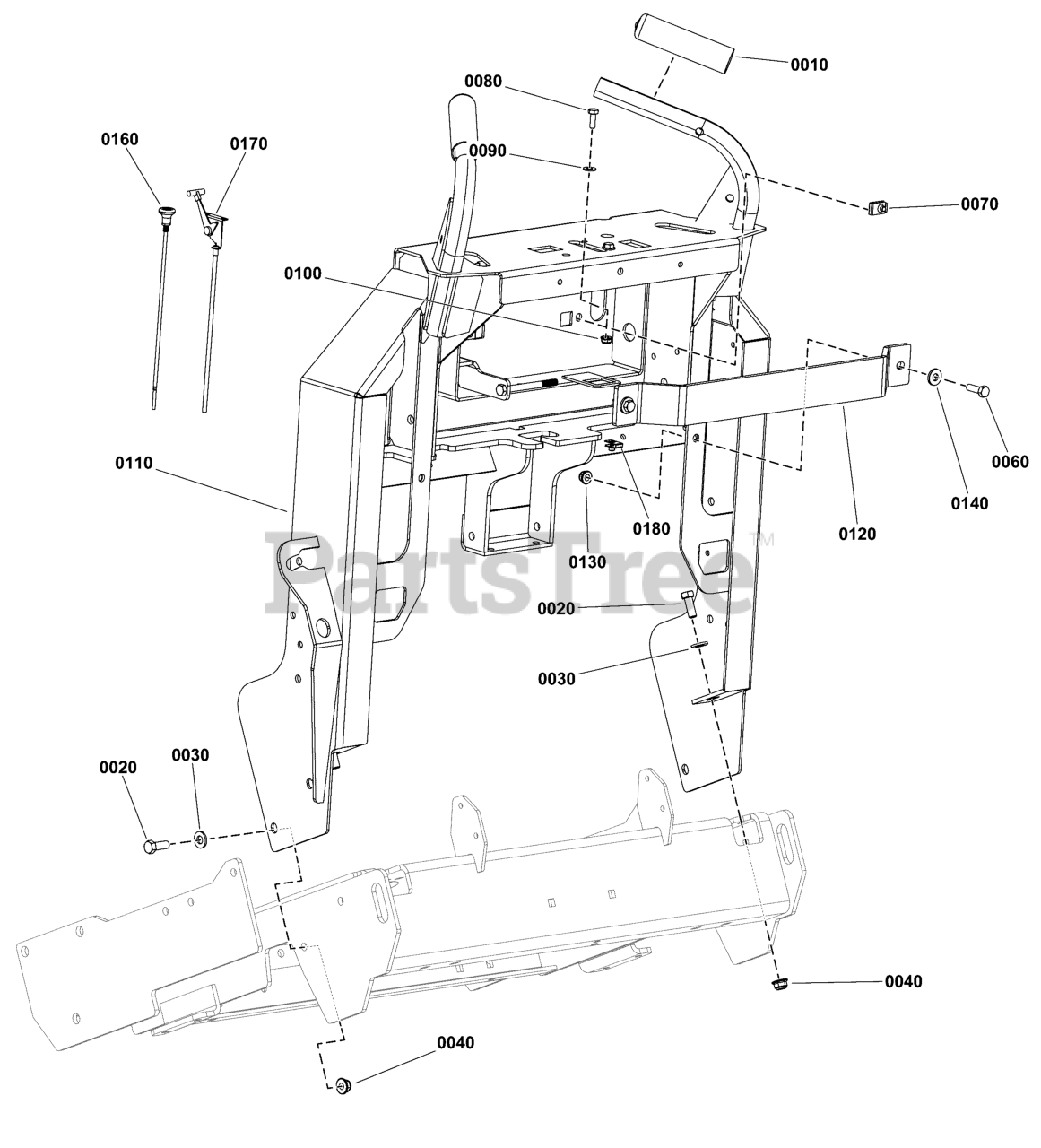

Handle Bar Group S/N: 4001694245 and above Parts Diagram

  • Title
0010

Ferris 5104659

GRIP, FOAM, .940" X 4.62" X .187"
(Superseded to 5104659FS)

$7.99

$

Usually ships in 2-12 days

0

0020

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

0030

Ferris 5025293

WASHER, 3/8" GR. 9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

0040

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0060

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

0070

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2" DEEP
(Superseded to 5022665SM)

Note: (For securing the oil cooler mount.)

$3.49

$

Usually ships in 2-12 days

0

0080

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

Note: (For securing the throttle control.)

$3.99

$

In Stock, Qty 20+

0

0090

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

Note: (For securing the throttle control.)

$4.49

$

Usually ships in 2-12 days

0

0100

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

Note: (For securing the throttle control.)

$3.99

$

In Stock, Qty 20+

0

0110

Ferris 5421015B

WELD, HANDLE BAR, CC, W45 - RED
(Superseded to 5421015BFS)

$1037.99

$

Usually ships in 2-12 days

0

0120

Ferris 5419312AA

BAR, SULKY GUARD, W25-W35 - BLK
(Superseded to 5419312AAFS)

$42.99

$

Usually ships in 2-12 days

0

0130

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0140

Ferris 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

0160

Ferris 5100184

CABLE, CHOKE CONTROL, 43.5"
(Superseded to 5100184SM)

Note: (Kawasaki powered models only)

$40.99

$

In Stock, Qty 5

0

0170

Ferris 5104657

CABLE, THROTTLE, 43" DETENTED
(Superseded to 5104657FS)

$36.99

$

Usually ships in 2-12 days

0

0180

Ferris 5022649

BODY CLIP, 3/8-16 X .688" DEEP
(Superseded to 5022649FS)

$3.49

$

Usually ships in 2-12 days

0
