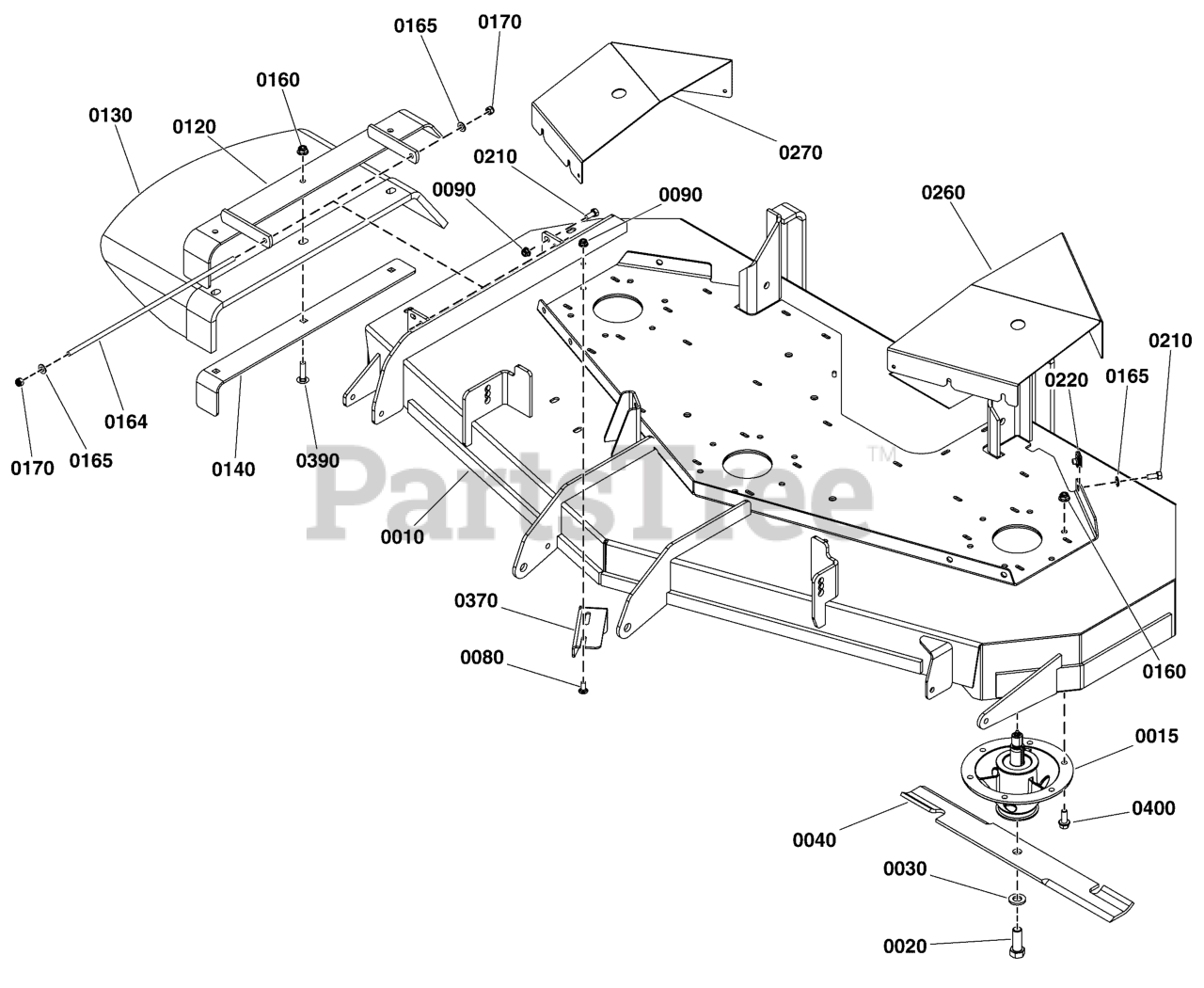

FW 35 (5901601) - Ferris FW35 Series 61" Walk-Behind Mower, 28hp Briggs & Stratton 61" Mower Deck - Housing, Covers, Spindles & Blades S/N: 2017775879 & Above Parts Diagram

FW35 Series 61" Walk-Behind Mower, 28hp Briggs & Stratton

61" Mower Deck - Housing, Covers, Spindles & Blades S/N: 2017775879 & Above Parts Diagram

  • Title

0010

Ferris 5601102

DECK SHELL W/ DECALS, FW35-61 (5422047B)

$2792.99

$

Usually ships in 2-12 days

0

0015

Ferris 5100993

SPINDLE ASSM, CAST IRON 8.0 - 6-BOLT
(Superseded to 5100993SM)

$219.99

$

In Stock, Qty 15

0

0020

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

0030

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

0040

Ferris 5101755S

BLADE SET, 61 DECK (3)

Note: (Refer to Note :*)

$

$

Not available

0080

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

0090

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0120

Ferris 84008171

MOUNT

$136.99

$

Usually ships in 2-12 days

0

0130

Ferris 5413499

CHUTE, RUBBER DISCHARGE (5104442)

$160.99

$

Usually ships in 2-12 days

0

0140

Ferris 5413385A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 84003245)

$28.99

$

In Stock, Qty 5

0

0160

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0164

Ferris 5061300

ROD, MOUNT, CHUTE, 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

0165

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0170

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

0210

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

0220

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

0260

Ferris 5412187B

GUARD, DECK, 61, LH - RED
(Superseded to 5412187BFS)

$53.99

$

Usually ships in 2-12 days

0

0270

Ferris 5412188B

GUARD, DECK, 61, RH - RED
(Superseded to 5412188BFS)

$43.99

$

Usually ships in 2-12 days

0

0370

Ferris 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$11.99

$

Usually ships in 2-12 days

0

0390

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

Usually ships in 2-12 days

0

0400

Ferris 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

$3.49

$

Usually ships in 2-12 days

0
