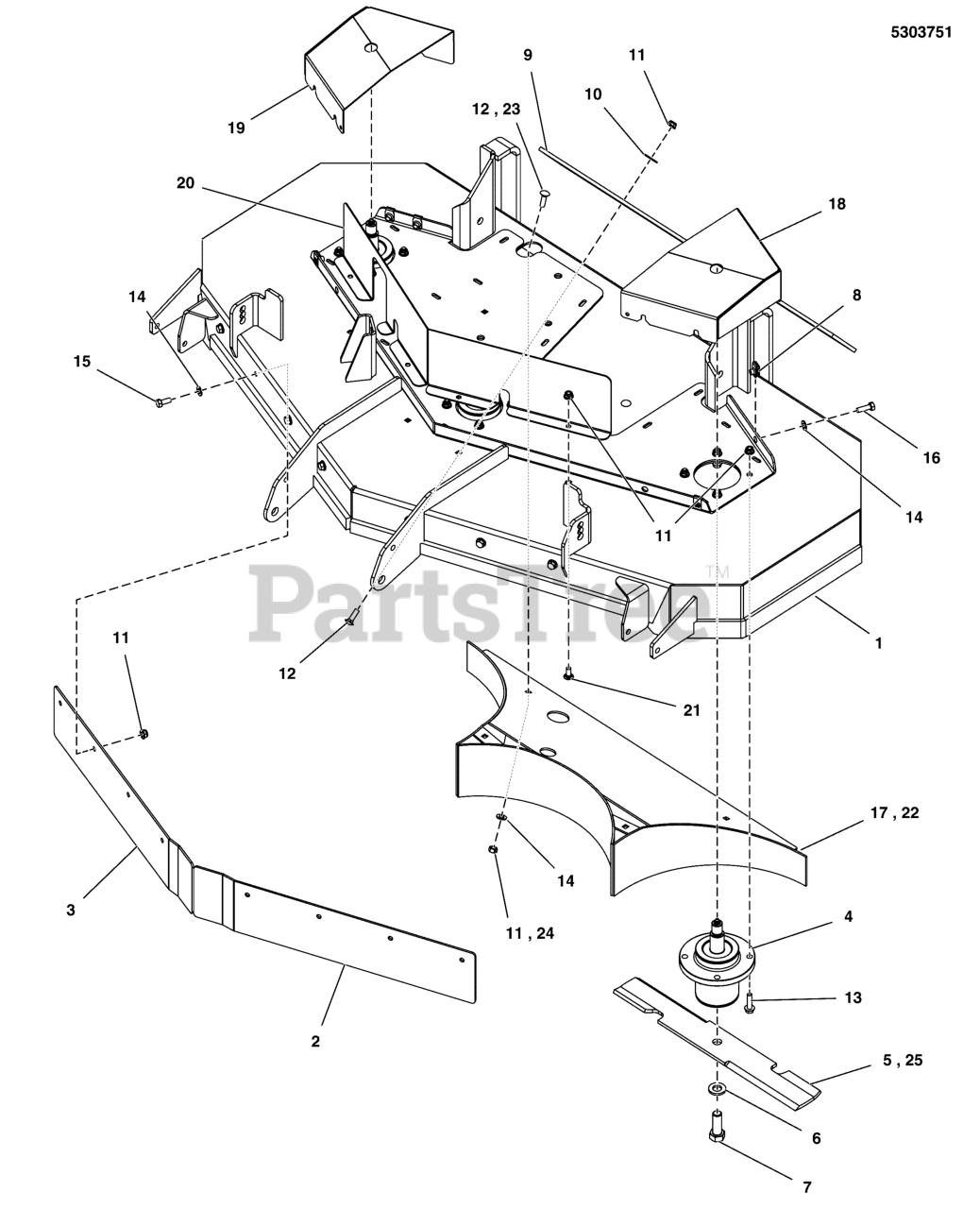

FW 35 (5901455) - Ferris FW35 Series 52" Walk-Behind Mower, 26hp Briggs & Stratton, Rear-Discharge 52" Mower Deck - Housing, Covers, Spindles, & Blades (Rear Discharge) S/N: 2017753321 & Below Parts Diagram

FW35 Series 52" Walk-Behind Mower, 26hp Briggs & Stratton, Rear-Discharge

52" Mower Deck - Housing, Covers, Spindles, & Blades (Rear Discharge) S/N: 2017753321 & Below Parts Diagram

  • Title

1

Ferris 5600737

DECK SHELL W/ DECALS, 52RDCE, FW35

Note: (5412346B)

$2308.99

$

Usually ships in 2-12 days

0

2

Ferris 5402629B

BAFFLE, FRONT DISCHARGE, 52 LH CCW - RED

$44.99

$

Usually ships in 2-12 days

0

3

Ferris 5402630B

BAFFLE, FRONT DISCHAGE, 52 RH CCW - RED

$44.99

$

Usually ships in 2-12 days

0

4

Ferris 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

$231.99

$

Usually ships in 2-12 days

0

5

Ferris 5101756S

BLADE SET, SET OF THREE

Note: (S/N: 2017035675 & Below)

$

$

Currently unavailable

6

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

7

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

9

Ferris 5402612

FLAP, CCW RD
(Superseded to 5402612FS)

$77.99

$

Usually ships in 2-12 days

0

10

Ferris 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

11

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

Note: (Qty: 33 - S/N: 2017035675 & Below)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE
(Superseded to 5025145X8SM)

Note: (Qty: 9 - S/N: 2017035675 & Below)

$3.99

$

In Stock, Qty 9

0

13

Ferris 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

14

Ferris 5025155

WASHER, 5/16" SAE

Note: (Qty: 14 - S/N: 2017035675 & Below)

$

$

Currently unavailable

15

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

16

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

17

Ferris 5412394B

WELD, REAR BAFFLE, FW35 52 RD - RED

Note: (S/N: 2017035675 & Below)

$216.99

$

Usually ships in 2-12 days

0

18

Ferris 5412496B

WELD, GUARD, FW35 52, LH - RED
(Superseded to 5412496BFS)

$225.99

$

Usually ships in 2-12 days

0

19

Ferris 5412495B

WELD, GUARD, FW35 52, RH - RED
(Superseded to 5412495BFS)

$228.99

$

Usually ships in 2-12 days

0

20

Ferris 5412498B

GUARD, FRONT DECK, FW35 52 RD - RED

$

$

Currently unavailable

21

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

22

Ferris 5414981A

WELD, REAR BAFFLE, WALK 52RD, SHORT, BLK

Note: (S/N: 2017035676 & Above)

$199.99

$

Usually ships in 2-12 days

0

23

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

Note: (S/N: 2017035676 & Above)

$3.99

$

In Stock, Qty 5

0

24

Ferris 80003675

NUT, 5/16-18, HEX, CNTR LK,ZINC PHOS/OIL
(Superseded to 703164)

Note: (S/N: 2017035676 & Above)

$3.49

$

In Stock, Qty 19

0

25

Ferris 5103304S

BLADE SET, MULCH, 52 DECK (SET OF 3)

Note: (S/N: 2017035676 & Above)

$85.99

$

Usually ships in 2-12 days

0
