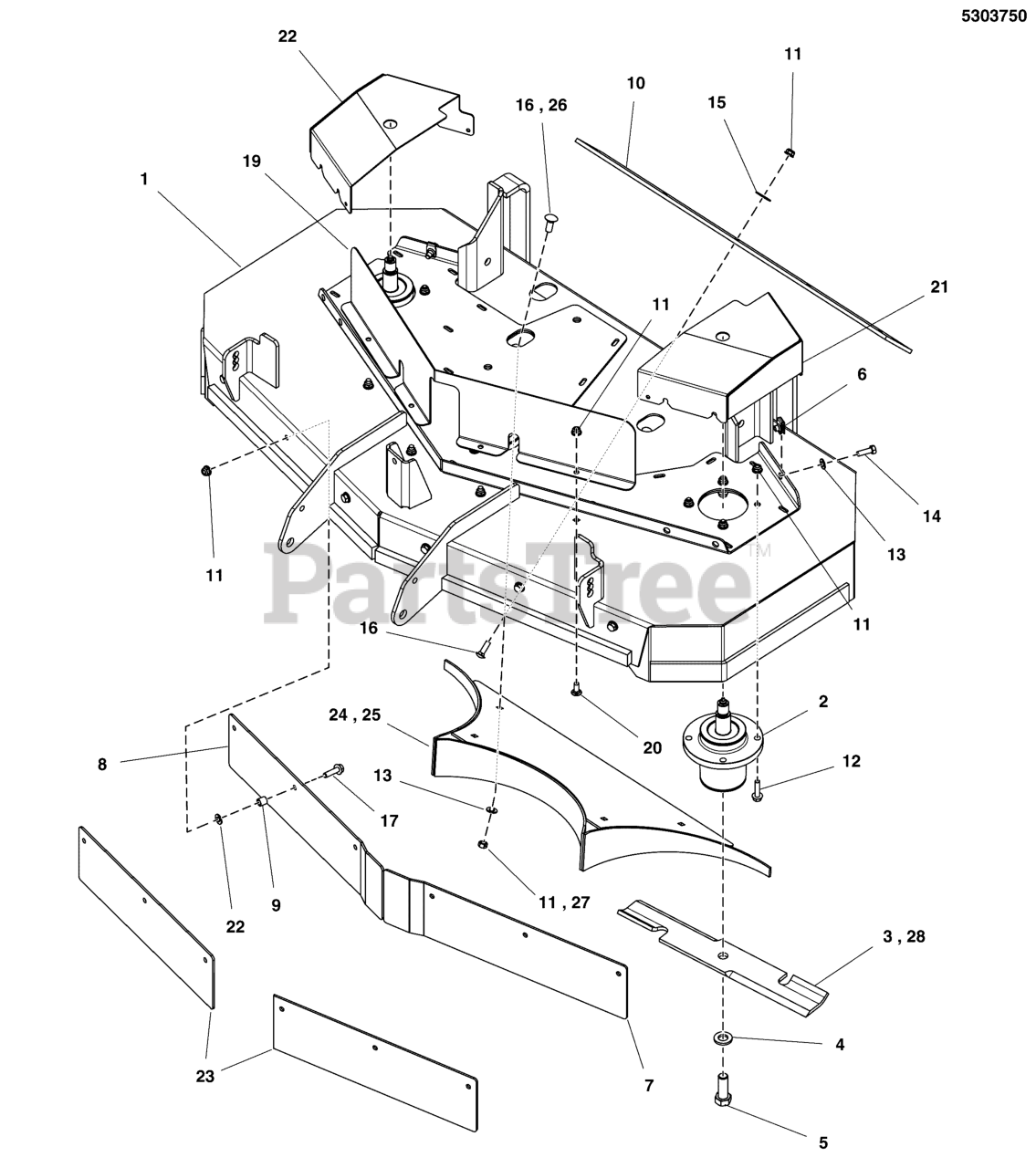

FW 35 (5901454) - Ferris FW35 Series 48" Walk-Behind Mower, 26hp Briggs & Stratton, Rear-Discharge 48" Mower Deck - Housing, Covers, Spindles, & Blades (Rear Discharge) S/N: 2017753266 & Below Parts Diagram

FW35 Series 48" Walk-Behind Mower, 26hp Briggs & Stratton, Rear-Discharge

48" Mower Deck - Housing, Covers, Spindles, & Blades (Rear Discharge) S/N: 2017753266 & Below Parts Diagram

  • Title

1

Ferris 5600738

DECK SHELL W/ DECALS, 48RDCE, FW35

Note: (5412350B)

$1977.99

$

Usually ships in 2-12 days

0

2

Ferris 5061095

SPINDLE, ASSM, ALUMINUM - 5.25
(Superseded to 5061095FS)

$231.99

$

Usually ships in 2-12 days

0

3

Ferris 5101986S

BLADES, SET OF THREE (3); 16.25 X.25 X 2.5, 1 X 3.5

Note: (S/N: 2017034461 & Below)

$

$

Currently unavailable

4

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 11

0

5

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

7

Ferris 5402628B

BAFFLE, FRONT DISCHARGE, 48 RH CCW - RED

Note: (S/N: 2016755928 & Below)

$41.99

$

Usually ships in 2-12 days

0

8

Ferris 5402627B

BAFFLE, FRONT DISCHARGE, 48 LH CCW - RED

Note: (S/N: 2016755928 & Below)

$41.99

$

Usually ships in 2-12 days

0

9

Ferris 5102148

SPACER, .33 X .50 X .50, YZ
(Superseded to 5102148YP)

$4.99

$

Usually ships in 2-12 days

0

10

Ferris 5402612

FLAP, CCW RD
(Superseded to 5402612FS)

$77.99

$

Usually ships in 2-12 days

0

11

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

Note: (Qty: 31 - S/N: 2017034461 & Below)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5023156

BOLT, Flange Head, 5/16-18 x 1-1/4
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

13

Ferris 5025155

WASHER, 5/16" SAE

Note: (Qty: 6 - S/N: 2017034461 & Below)

$

$

Currently unavailable

14

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

16

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

Note: (Qty: 9 - S/N: 2017034461 & Below)

$3.99

$

In Stock, Qty 9

0

17

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

19

Ferris 5412497B

GUARD, FRONT DECK, FW35 48 RD - RED
(Superseded to 5412497BFS)

$77.99

$

Usually ships in 2-12 days

0

20

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

21

Ferris 5412494B

WELD, GUARD, FW35 48, LH - RED
(Superseded to 5412494BFS)

$228.99

$

Usually ships in 2-12 days

0

22

Ferris 5412493B

WELD, GUARD, FW35 48, RH - RED
(Superseded to 5412493BFS)

$231.99

$

Usually ships in 2-12 days

0

23

Ferris 5412638B

BAFFLE, FRONT, FW35-48, REAR DISCHARGE - RED
(Superseded to 5412638BFS)

Note: (S/N: 2016755929 & Above)

$33.99

$

Usually ships in 2-12 days

0

24

Ferris 5412398B

WELD, REAR BAFFLE, FW35 48RD - RED

Note: (S/N: 2017034461 & Below)

$193.99

$

Usually ships in 2-12 days

0

25

Ferris 5414977A

WELD, REAR BAFFLE, 48RD, SHORT - BLK

Note: (S/N: 2017034462 & Above)

$140.99

$

Usually ships in 2-12 days

0

26

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

Note: (S/N: 2017034462 & Above)

$3.99

$

In Stock, Qty 5

0

27

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

Note: (S/N: 2017034462 & Above)

$3.49

$

In Stock, Qty 19

0

28

Ferris 5103303S

BLADE SET, MULCH, 48 DECK (SET OF 3)

Note: (S/N: 2017034462 & Above)

$76.99

$

Usually ships in 2-12 days

0
