FW 25 (5901986) - Ferris FW25 Series 36" Walk-Behind Mower, 19hp Kawasaki, Side-Discharge Transaxle Drive Group Parts Diagram

FW25 Series 36" Walk-Behind Mower, 19hp Kawasaki, Side-Discharge

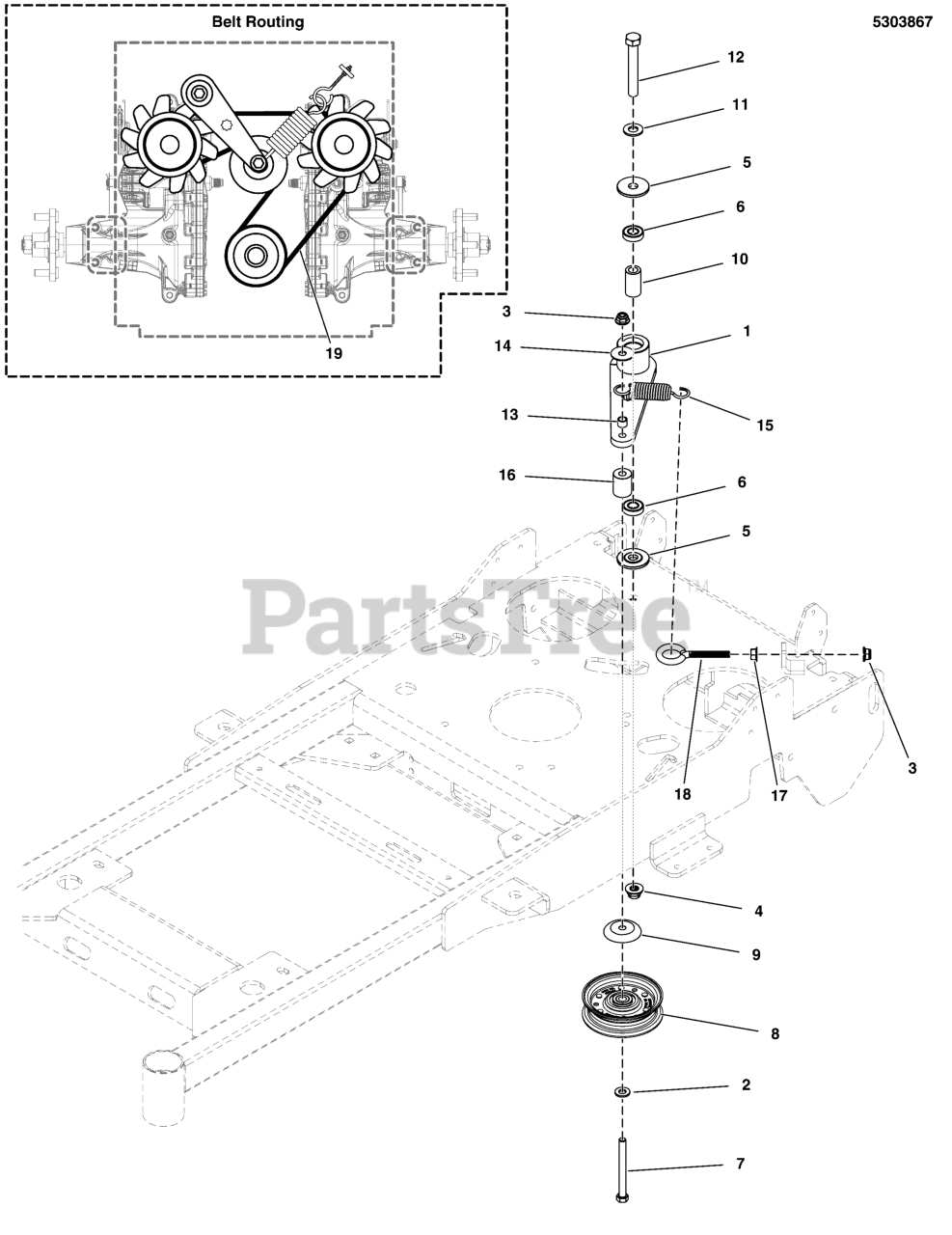

Transaxle Drive Group Parts Diagram

  • Title

1

Ferris 5413130A

WELD, IDLER ARM, 6.63" LG - BLK
(Superseded to 5413130AAFS)

$51.99

$

Usually ships in 2-12 days

0

2

Ferris 5025293

WASHER, 3/8" GR. 9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

3

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

4

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

5

Ferris 5103262

SPACER, IDLER ARM, 1/2, PM
(Superseded to 5103262YP)

$7.99

$

In Stock, Qty 15

0

6

Ferris 7078243

BEARING, BALL, AXLE
(Superseded to 7078243YP)

$10.99

$

In Stock, Qty 18

0

7

Ferris 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

8

Ferris 5104514

PULLEY, FLAT IDLER, FLG, 4"ODX3/8"ID, CZ
(Superseded to 5104514FS)

$48.99

$

Usually ships in 2-12 days

0

9

Ferris 5103787

SHIELD, BEARING PULLEY, 3/8ID, CZ
(Superseded to 5103787YP)

$7.49

$

In Stock, only 1 left!

0

10

Ferris 5103812

SPACER, .52 X .84 X 1.53, PM
(Superseded to 5103812YP)

$7.99

$

In Stock, Qty 7

0

11

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

12

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 3 left!

0

13

Ferris 1611705

SPACER-0.385ID 0.623OD 0.290LG P'MTL
(Superseded to 1611705SM)

$4.49

$

In Stock, Qty 20+

0

14

Ferris 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5104545

SPRING-EXT, 1.125 ODX4.679LGX.146WR, BLK
(Superseded to 5104545FS)

$35.99

$

Usually ships in 2-12 days

0

16

Ferris 5103427

SPACER, .39 X 1.00 X 1.25, PM, CZ
(Superseded to 5103427YP)

$8.49

$

Usually ships in 2-12 days

0

17

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

18

Ferris 5025429

EYEBOLT, 3/8-16 X 4, 2.13THRD, .75EYE, C
(Superseded to 5025429SM)

$6.49

$

Usually ships in 2-12 days

0

19

Ferris 5104354

BELT, A-SEC, COG TYPE, 57" EL, ARAMID
(Superseded to 5104354FS)

$37.99

$

Usually ships in 2-12 days

0
