FW 25 (5901986) - Ferris FW25 Series 36" Walk-Behind Mower, 19hp Kawasaki, Side-Discharge 36" Mower Deck - Housing, Covers, Spindles, and Blades Parts Diagram

FW25 Series 36" Walk-Behind Mower, 19hp Kawasaki, Side-Discharge

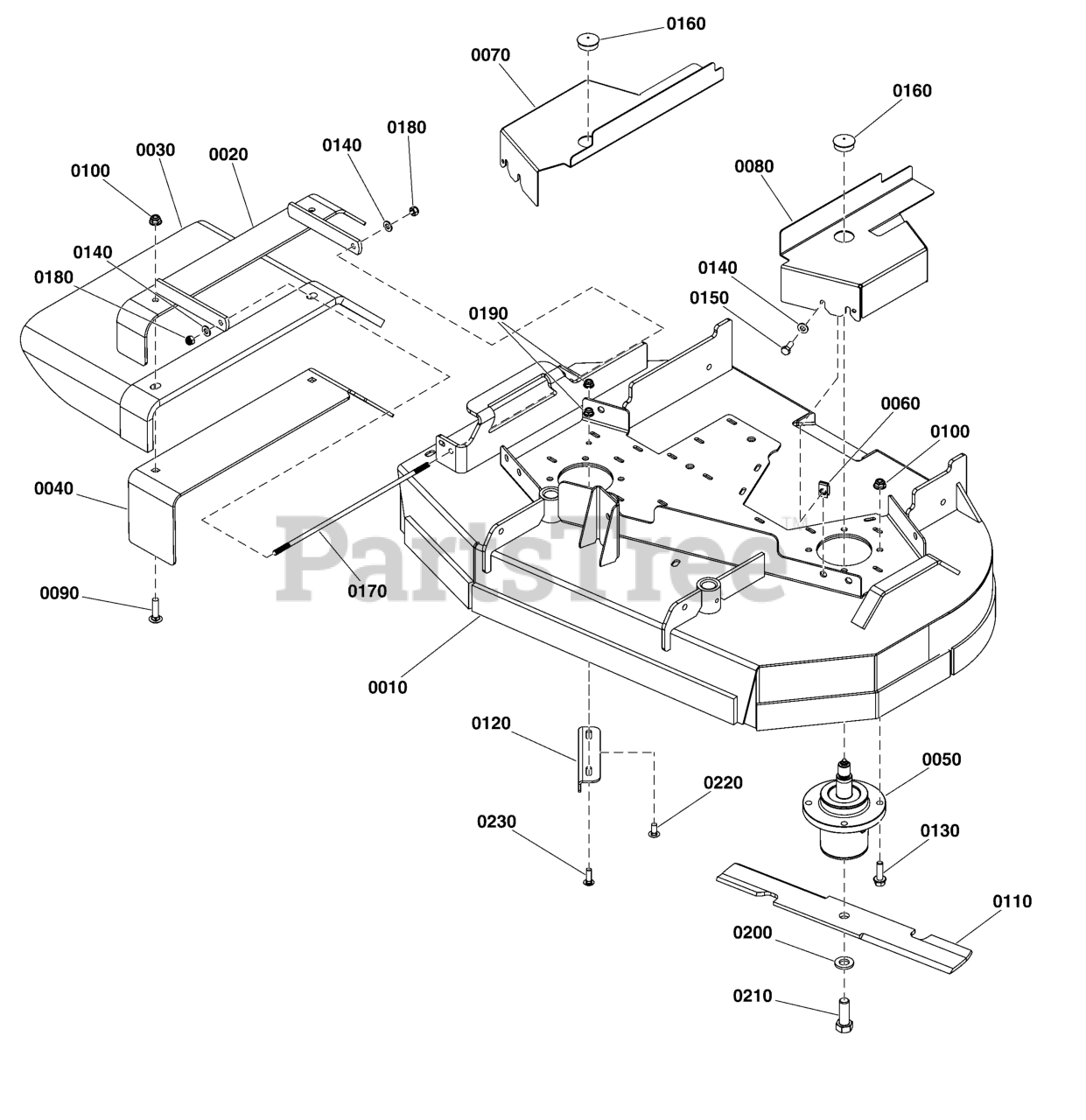

36" Mower Deck - Housing, Covers, Spindles, and Blades Parts Diagram

  • Title

0010

Ferris 5601217

DECK SHELL W/ DECALS, FW25-36SDCE

$1282.99

$

Usually ships in 2-12 days

0

0020

Ferris 5419051A

WELD, CHUTE MOUNT, 36/48, CE - BLK

$

$

Currently unavailable

0030

Ferris 5413498

CHUTE, RUBBER DISCHARGE CHUTE (5104441)

$165.99

$

Usually ships in 2-12 days

0

0040

Ferris 5419052A

SUPPORT, DISCHARGE CHUTE,36/48, CE - BLK

$

$

Currently unavailable

0050

Ferris 5061095

SPINDLE, ASSM, ALUMINUM - 5.25
(Superseded to 5061095FS)

$231.99

$

Usually ships in 2-12 days

0

0060

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

0070

Ferris 5416164B

GUARD, DECK, RH, W25 36CE

$

$

Currently unavailable

0080

Ferris 5416165B

GUARD, DECK, LH, 36CE - RED

$

$

Currently unavailable

0090

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

Usually ships in 2-12 days

0

0100

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0110

Ferris 5101756X2

BLADE SET, 36 DECK (2)

Note: (Set of 2 blades)

$59.99

$

Usually ships in 2-12 days

0

0120

Ferris 5415547A

PLATE, DEFLECTOR, 36" - BLK

$12.99

$

Usually ships in 2-12 days

0

0130

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

$2.99

$

Usually ships in 2-12 days

0

0140

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0150

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

0160

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, Qty 20+

0

0170

Ferris 5042555

ROD, 5/16 X 13.75, TBE, CZ
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

0180

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

0190

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0200

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

0210

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

0220

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

0230

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0
