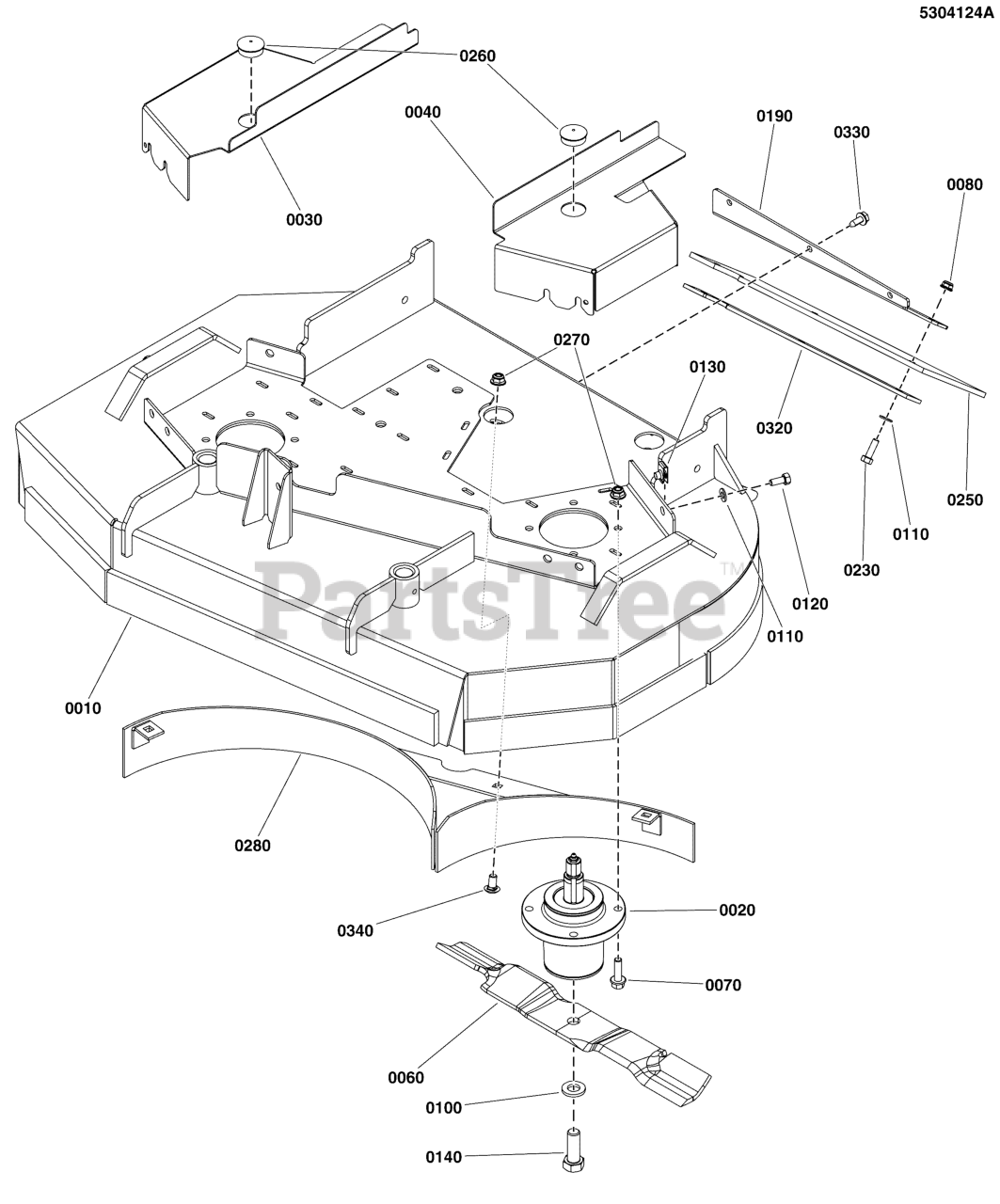

FW 25 (5901889) - Ferris FW25 Series 36" Walk-Behind Mower, 19hp Kawasaki, Rear-Discharge 36" Mower Deck (Rear Discharge) - Housing, Covers, Spindles & Blades - S/N: 2017746074 & Above Parts Diagram

FW25 Series 36" Walk-Behind Mower, 19hp Kawasaki, Rear-Discharge

36" Mower Deck (Rear Discharge) - Housing, Covers, Spindles & Blades - S/N: 2017746074 & Above Parts Diagram

  • Title

0010

Ferris 5601068

DECK SHELL W/DECALS, W25-36RD (5416002B)

$1282.99

$

Usually ships in 2-12 days

0

0020

Ferris 5061095

SPINDLE, ASSM, ALUMINUM - 5.25
(Superseded to 5061095FS)

$231.99

$

Usually ships in 2-12 days

0

0030

Ferris 5416164B

GUARD, DECK, RH, W25 36CE

$

$

Currently unavailable

0040

Ferris 5416165B

GUARD, DECK, LH, 36CE - RED

$

$

Currently unavailable

0060

Ferris 5103304X2

BLADE SET, MULCH, 36 DECK (2)(SET OF 2)

Note: (Set of 2 blades)

$61.99

$

In Stock, only 2 left!

0

0070

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

Note: (Torque spindle mounting bolts to 17 ft. lbs. (23 Nm)

$2.99

$

Usually ships in 2-12 days

0

0080

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0100

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

0110

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0120

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

0130

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

0140

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

Note: (Torque blade mounting bolt to 70 ft. lbs. (94 Nm)

$3.49

$

Usually ships in 2-12 days

0

0190

Ferris 5416377A

PLATE, FLAP MOUNT, 36CE, WALK - BLK

$

$

Currently unavailable

0230

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0250

Ferris 5105362

FLAP, REAR DISCHARGE, UPPER
(Superseded to 5105362FS)

$60.99

$

Usually ships in 2-12 days

0

0260

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, Qty 20+

0

0270

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0280

Ferris 5415988A

WELD, REAR BAFFLE, 36 RD, SHORT - BLK

$106.99

$

Usually ships in 2-12 days

0

0320

Ferris 5416320A

PLATE, SUPPORT, CE - BLK

$

$

Currently unavailable

0330

Ferris 1664847CA

SCREW-HEX WSHR HD TAPTT5/16-18X0.750

$

$

Currently unavailable

0340

Ferris 80003585

BOLT,3/8-16X.75,GR5,CARRIAGE,ZC/CL
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0
