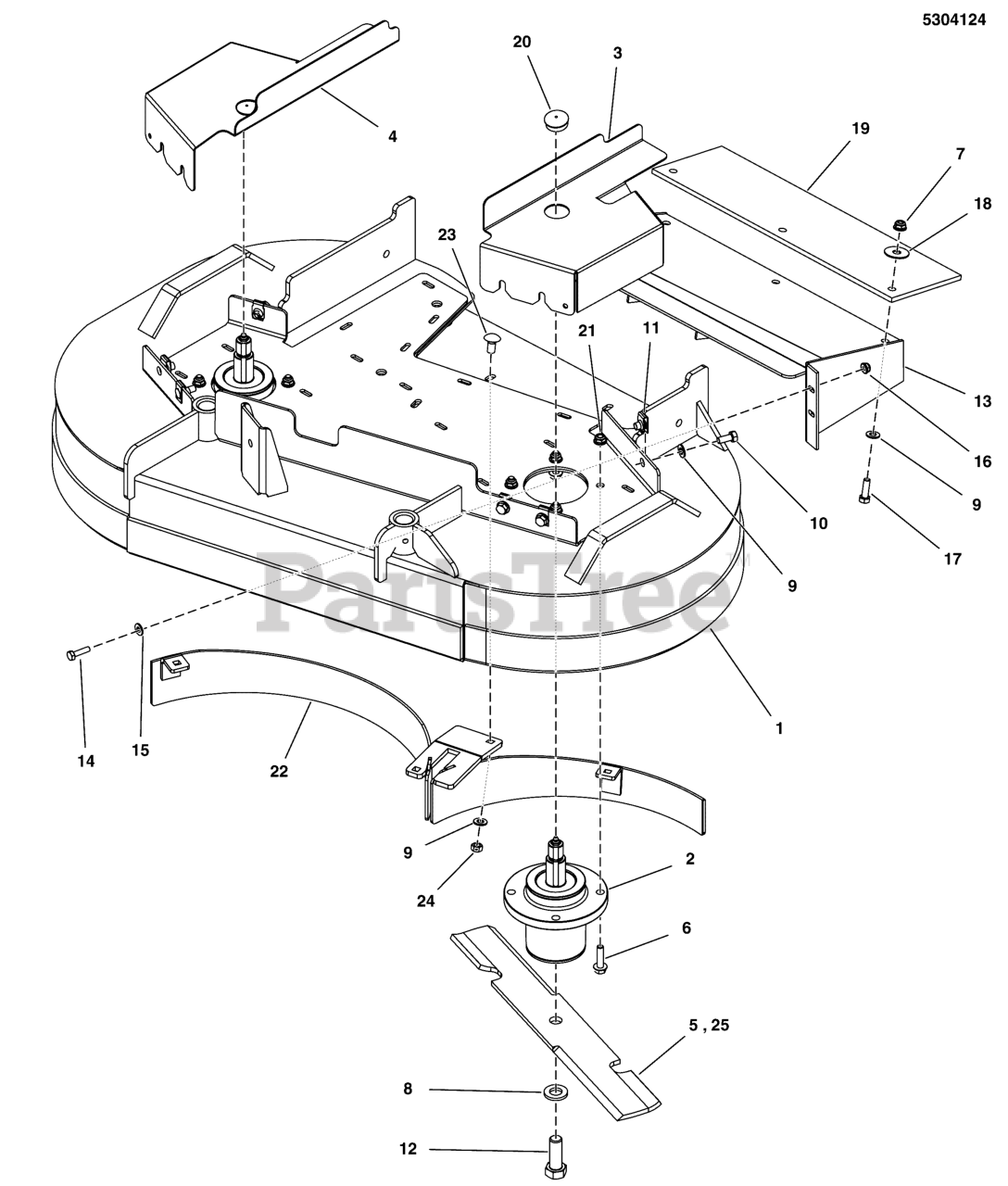

FW 25 (5901441) - Ferris FW25 Series 36" Walk-Behind Mower, 19hp Kawasaki, Rear-Discharge 36" Mower Deck (Rear Discharge) - Housing, Covers, Spindles & Blades - S/N: 2017746073 & Below Parts Diagram

FW25 Series 36" Walk-Behind Mower, 19hp Kawasaki, Rear-Discharge

36" Mower Deck (Rear Discharge) - Housing, Covers, Spindles & Blades - S/N: 2017746073 & Below Parts Diagram

  • Title

1

Ferris 5600853

DECK SHELL W/ DECALS, 36RDCE, FW25 (5413552B)

$

$

Currently unavailable

2

Ferris 5061095

SPINDLE, ASSM, ALUMINUM - 5.25
(Superseded to 5061095FS)

$231.99

$

Usually ships in 2-12 days

0

3

Ferris 5413731B

GUARD, DECK SPINDLE FW2536RDCE, LH - RED

$33.99

$

Usually ships in 2-12 days

0

4

Ferris 5413730B

GUARD, DECK SPINDLE FW2536RDCE, RH - RED

$

$

Currently unavailable

5

Ferris 5101756X2

BLADE SET, 36 DECK (2)

Note: (S/N: 2017087487 & Below)

$59.99

$

Usually ships in 2-12 days

0

6

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD5, CZ
(Superseded to 5025390X10FS)

$2.99

$

Usually ships in 2-12 days

0

7

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 11

0

9

Ferris 5025155

WASHER, 5/16" SAE

Note: (Qty: 9 - S/N: 2017087487 & Below)

$

$

Currently unavailable

10

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

11

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

12

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5413574A

WELD, DISCHARGE CHUTE, FW25 36RD - BLK
(Superseded to 5413574AA)

$133.99

$

Usually ships in 2-12 days

0

14

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

15

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

16

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

17

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

18

Ferris 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

19

Ferris 5404167

FLAP, RUBBER, 36RD

$41.99

$

Usually ships in 2-12 days

0

20

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, Qty 20+

0

21

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

22

Ferris 5414985A

WELD, REAR BAFFLE, 36RD, SHORT - BLK

Note: (S/N: 2017087488 & Above)

$

$

Currently unavailable

23

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

Note: (S/N: 2017087488 & Above)

$3.99

$

In Stock, Qty 5

0

24

Ferris 80003675

NUT, 5/16-18, HEX, CNTR LK,ZINC PHOS/OIL
(Superseded to 703164)

Note: (S/N: 2017087488 & Above)

$3.49

$

In Stock, Qty 19

0

25

Ferris 5103304X2

BLADE SET, MULCH, 36 DECK (2)(SET OF 2)

Note: (S/N: 2017087488 & Above)

$61.99

$

In Stock, only 2 left!

0
