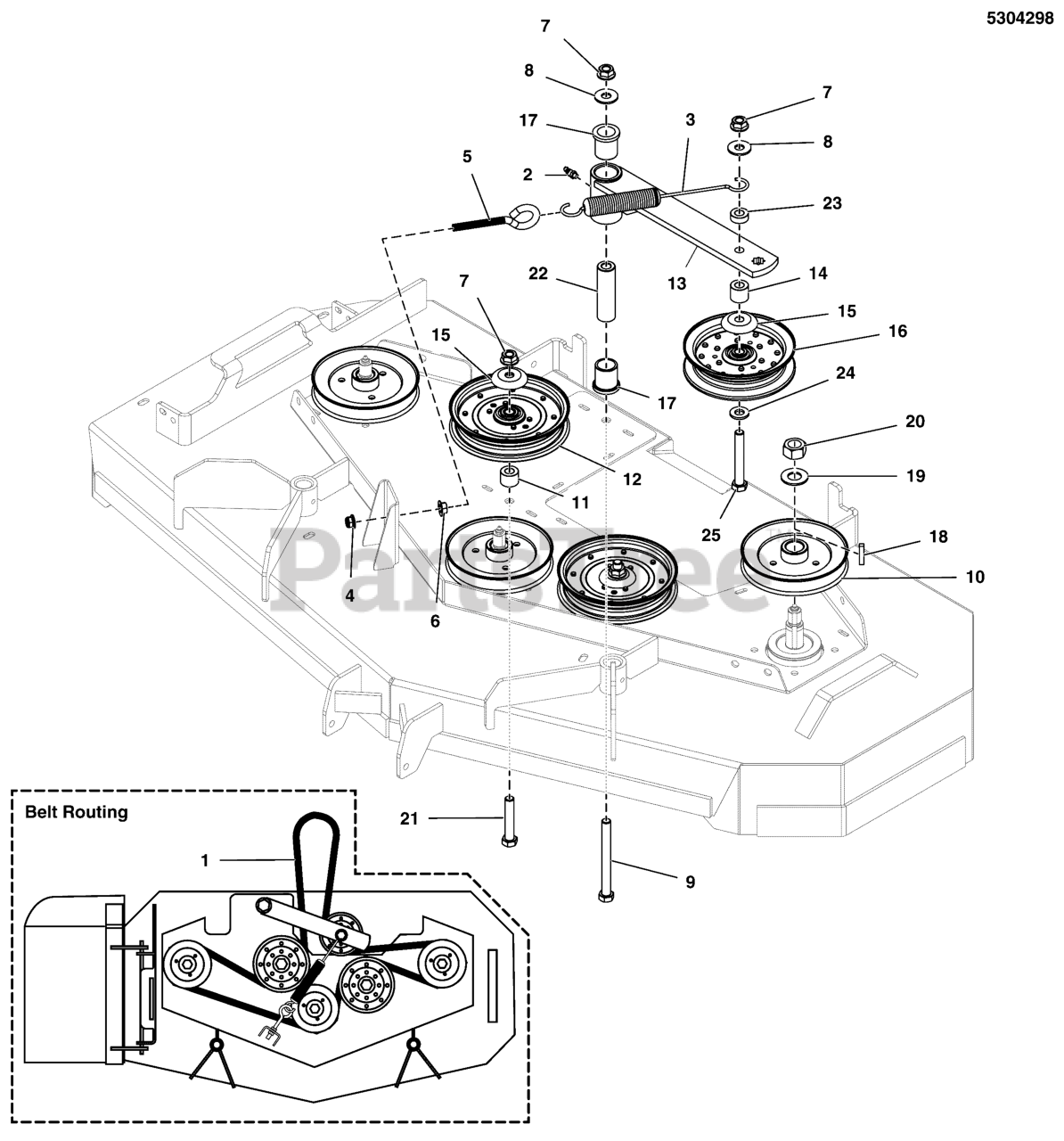

FW 25 (5901432) - Ferris FW25 Series 52" Walk-Behind Mower, 19hp Kawasaki 52" Mower Deck - Pulleys, Belt & Idler Arm S/N: 2017243270 & Below Parts Diagram

FW25 Series 52" Walk-Behind Mower, 19hp Kawasaki

52" Mower Deck - Pulleys, Belt & Idler Arm S/N: 2017243270 & Below Parts Diagram

  • Title

1

Ferris 5023496

BELT, BP-SEC, 141.750EL, ARAMID, WRPD
(Superseded to 5023496SM)

$101.99

$

Usually ships in 2-12 days

0

2

Ferris 5020020

GREASE FITTING, 45 DEGREE
(Superseded to 5020020SM)

$4.49

$

Usually ships in 2-12 days

0

3

Ferris 5023340

SPRING-EXT, 1.04 ODX10.535LGX.148WR, BLK
(Superseded to 5023340SM)

$36.99

$

In Stock, only 1 left!

0

4

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Ferris 5021812

EYE BOLT, 3/8-16 X 6, 3THRD, 1EYE, CZ
(Superseded to 5021812SM)

$5.99

$

In Stock, Qty 18

0

6

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

7

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

8

Ferris 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5025017X40

BOLT-1/2-13 X 5 GD5 CZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 1 left!

0

10

Ferris 5045178

SPACER, .52 X 1.00 X .75, CZ
(Superseded to 5045178SM)

$7.49

$

In Stock, Qty 6

0

11

Ferris 5101351

PULLEY, 5.926 OVER BALL
(Superseded to 5101351YP)

$69.99

$

In Stock, Qty 9

0

12

Replace with: Pulley #5104717 & Debris Shield #5105145

$

$

Not available

13

Ferris 5401741A

WELD, IDLER ARM (10.50) - BLK
(Superseded to 5401741AYP)

$117.99

$

Usually ships in 2-12 days

0

14

Ferris 5044673

SPACER, .52 X 1.00 X .88, PM, CZ
(Superseded to 5044673SM)

$8.99

$

In Stock, only 1 left!

0

15

Ferris 5101103

SHIELD, PULLEY BEARING, CZ
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

16

Ferris 5101312

PULLEY, IDLER, 5.00 WIDE W/ .51 BORE
(Superseded to 5101312FS)

$71.99

$

Usually ships in 2-12 days

0

17

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 18

0

18

Ferris 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 3 left!

0

19

Ferris 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

20

Ferris 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

21

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 11

0

22

Ferris 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 2 left!

0

23

Ferris 5044609

SPACER, .52 X 1.00 X .38, CZ
(Superseded to 5044609SM)

$6.49

$

In Stock, only 1 left!

0

24

Ferris 5025440

WASHER, 1/2 GD9 CZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

25

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 2 left!

0
