FW 15 (5901848) - Ferris FW15 Series 32" Walk-Behind Mower, 10hp Honda Motion Control Group - Upper Parts Diagram

FW15 Series 32" Walk-Behind Mower, 10hp Honda

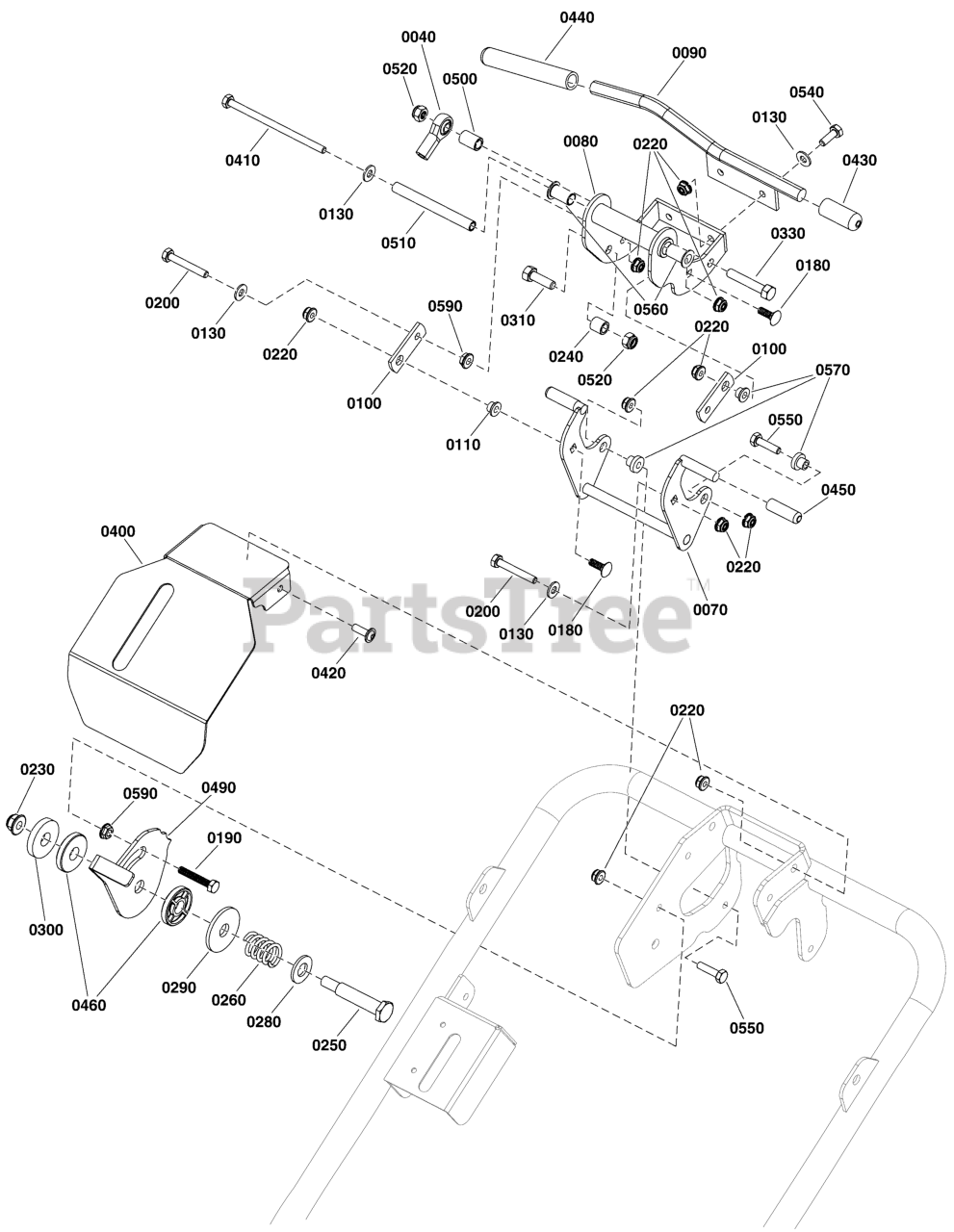

Motion Control Group - Upper Parts Diagram

  • Title

0040

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

Note: (Connects to item #0480 in Motion Control Group - Lower

$18.99

$

In Stock, only 1 left!

0

0070

Ferris 5418884AA

WELD, MOTION CONTROL LINK - BLK
(Superseded to 5418884AAFS)

$36.99

$

Usually ships in 2-12 days

0

0080

Ferris 5419033AA

WELD, UPPER MOTION CONTROL-BLK
(Superseded to 5419033AAFS)

$32.99

$

Usually ships in 2-12 days

0

0090

Ferris 5418877AA

WELD, HANDTHUMB CONTROL - BLK
(Superseded to 5418877AAFS)

$26.99

$

Usually ships in 2-12 days

0

0100

Ferris 5418815AA

PLATE, LINK REVERSE - BLK
(Superseded to 5418815AAFS)

$3.99

$

Usually ships in 2-12 days

0

0110

Ferris 5107552

SPACER, .251ID X .550OD X .28, CZ
(Superseded to 5107552FS)

$2.49

$

Usually ships in 2-12 days

0

0130

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0180

Ferris 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

$3.99

$

In Stock, only 1 left!

0

0190

Ferris 5025010X12

BOLT, 1/4-20 X 1-1/2 GD5 CZ
(Superseded to 5025010X12SM)

$2.99

$

Usually ships in 2-12 days

0

0200

Ferris 5025010X14

BOLT, 1/4 X 20 X 1-3/4 GD5 YZ
(Superseded to 5025010X14SM)

$3.99

$

In Stock, only 1 left!

0

0220

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0230

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0240

Ferris 5102148

SPACER, .33 X .50 X .50, YZ
(Superseded to 5102148YP)

$4.99

$

Usually ships in 2-12 days

0

0250

Ferris 2108765

BOLT-WHEEL 3/8-16X2.781 .750 THRD YELLOW
(Superseded to 2108765SM)

$6.49

$

In Stock, Qty 20+

0

0260

Ferris 5102211

SPRING-COMP, .720ID X 1.310LG X .118 WIRE
(Superseded to 5102211YP)

$31.99

$

Usually ships in 2-12 days

0

0280

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

0290

Ferris 5103282

WASHER, .52 X 1.75 X .14, CZ
(Superseded to 5103282YP)

$3.99

$

In Stock, only 1 left!

0

0300

Ferris 5044913

WASHER, .53 X 1.50 X .25
(Superseded to 5044913SM)

$6.99

$

In Stock, Qty 13

0

0310

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0330

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

0400

Ferris 5601185

COVER PLATE W/ DECALS, FW15

$98.99

$

Usually ships in 2-12 days

0

0410

Ferris 5025010X36

BOLT, 1/4-20 X 4-1/2

$

$

Currently unavailable

0420

Ferris 5106757

SCREW, FLANGE, ALLEN HD, 1/4-20 X .75 SS
(Superseded to 84003668)

$3.49

$

Usually ships in 2-12 days

0

0430

Ferris 5100620

GRIP, FOAM, .475 X 1.5 X .095
(Superseded to 5100620FS)

$2.99

$

Usually ships in 2-12 days

0

0440

Ferris 5021880

GRIP, FOAM, .475 X 4.35 X .095
(Superseded to 5021880SM)

$5.99

$

Usually ships in 2-12 days

0

0450

Ferris 5107721

COVER, VINYL, 1.44
(Superseded to 5107721FS)

$2.49

$

Usually ships in 2-12 days

0

0460

Ferris 5107722

SPACER, .52 X 1.50 X .25, PL
(Superseded to 5107722FS)

$6.49

$

Usually ships in 2-12 days

0

0490

Ferris 5418817AA

PLATE, SPEED CONTROL - BLK
(Superseded to 5418817AAFS)

$9.49

$

Usually ships in 2-12 days

0

0500

Ferris 5101352

SPACER, .33 X .50 X .75
(Superseded to 5101352FS)

$6.99

$

Usually ships in 2-12 days

0

0510

Ferris 5107536

SPACER, .265ID X .375OD X 3.69
(Superseded to 5107536FS)

$4.49

$

Usually ships in 2-12 days

0

0520

Ferris 5025057

NUT, Hex, Nylon Locking, 5/16-18
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

0540

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0550

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

0560

Ferris 5023260

BUSHING, FLANGE 3/8ID X 7/8 LONG
(Superseded to 5023260SM)

$6.49

$

In Stock, only 2 left!

0

0570

Ferris 5107982

SPACER, .25ID X .625OD X .43, CZ
(Superseded to 5107982FS)

$6.99

$

Usually ships in 2-12 days

0

0590

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0
