FW 15 (5901848) - Ferris FW15 Series 32" Walk-Behind Mower, 10hp Honda Motion Control Group - Lower Parts Diagram

FW15 Series 32" Walk-Behind Mower, 10hp Honda

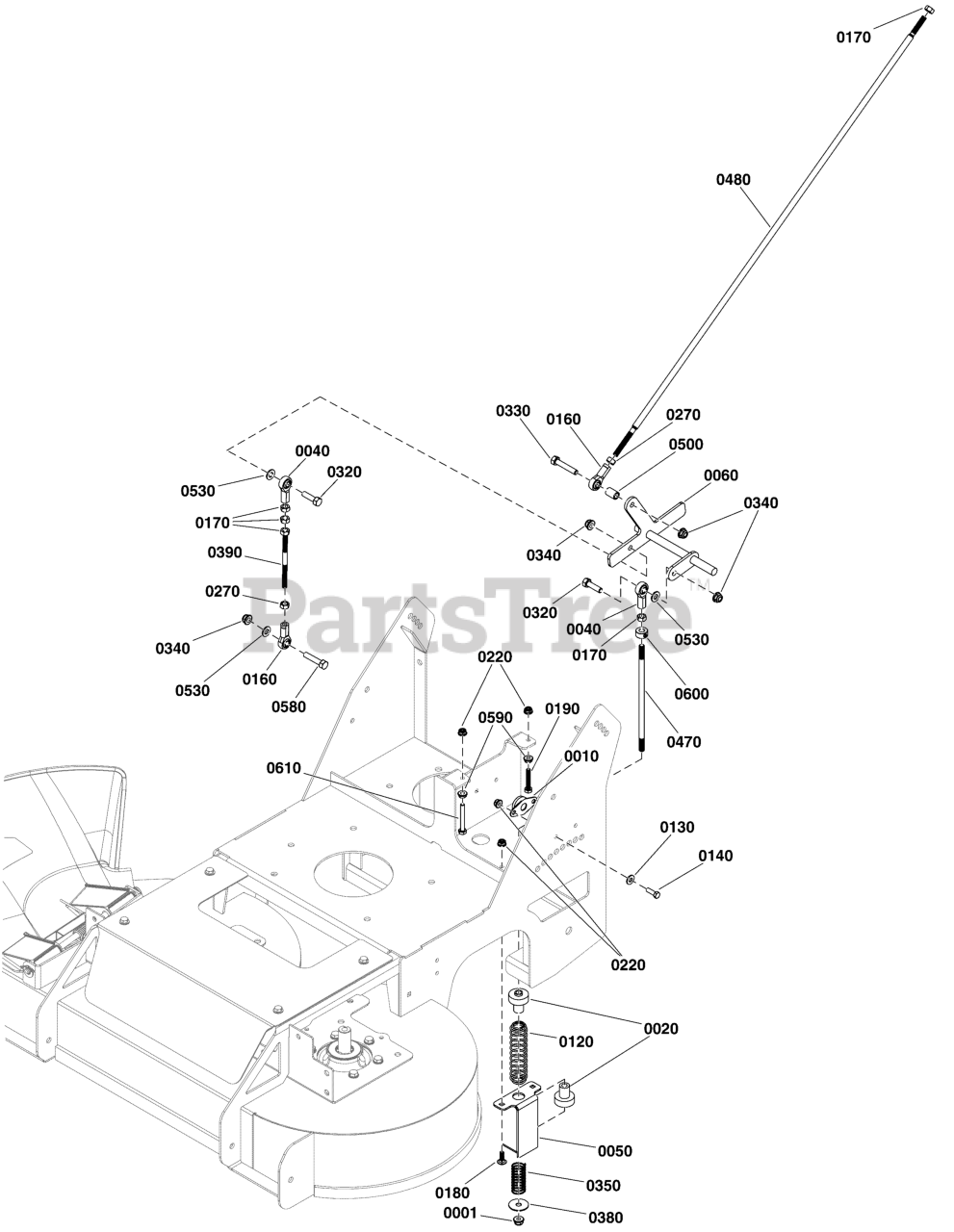

Motion Control Group - Lower Parts Diagram

  • Title

0001

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

0010

Ferris 5101123

BEARING, 1/2 FLANGED, PLASTIC BALL
(Superseded to 5101123SM)

$5.99

$

Usually ships in 2-12 days

0

0020

Ferris 5042911

GUIDE, Spring Return
(Superseded to 5042911FS)

$69.99

$

Usually ships in 2-12 days

0

0040

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

In Stock, only 1 left!

0

0050

Ferris 5417738AA

WELD, NEUTRAL RETURN BOX - BLK
(Superseded to 5417738AAFS)

$27.99

$

Usually ships in 2-12 days

0

0060

Ferris 5418745AA

WELD, MOTION CONTROL LOWER - BLK
(Superseded to 5418745AAFS)

$25.99

$

Usually ships in 2-12 days

0

0120

Ferris 5107543

SPRING, FORWARD RETURN, FW15
(Superseded to 5107543FS)

$6.49

$

Usually ships in 2-12 days

0

0130

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0140

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

0160

Ferris 5104494

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE
(Superseded to 5104494YP)

$18.99

$

Usually ships in 2-12 days

0

0170

Ferris 5025033

NUT, Hex, 5/16-24
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

0180

Ferris 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

$3.99

$

In Stock, only 2 left!

0

0190

Ferris 5025010X12

BOLT, 1/4-20 X 1-1/2 GD5 CZ
(Superseded to 5025010X12SM)

$2.99

$

Usually ships in 2-12 days

0

0220

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0270

Ferris 5023212

NUT, 5/16-24 HEX, LH
(Superseded to 5023212SM)

$3.49

$

Usually ships in 2-12 days

0

0320

Ferris 5025011X9

BOLT, 5/16-18 X 1-1/8 GD5 CZ
(Superseded to 5025011X9SM)

$3.99

$

In Stock, only 1 left!

0

0330

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

0340

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0350

Ferris 1709660

SPRING-COMP 0.880ODX 02.187LG .062WIRE
(Superseded to 1709660SM)

$8.99

$

Usually ships in 2-12 days

0

0380

Ferris 5025164

WASHER, 5/16" Fender
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

0390

Ferris 5104608

ROD, 5/16-24 X 4.25, CZ
(Superseded to 5104608FS)

$6.99

$

Usually ships in 2-12 days

0

0470

Ferris 5107716

ROD, NEUTRAL RETURN, FW15
(Superseded to 5107716FS)

$5.49

$

Usually ships in 2-12 days

0

0480

Ferris 5107534

ROD, MOTION CONTROL, FW15
(Superseded to 5107534FS)

Note: (Connects to item #0040 in Motion Control Group - Upper

$15.99

$

Usually ships in 2-12 days

0

0500

Ferris 5101352

SPACER, .33 X .50 X .75
(Superseded to 5101352FS)

$6.99

$

Usually ships in 2-12 days

0

0530

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0580

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2" GD5 YZ
(Superseded to 5025011X12SM)

$3.99

$

In Stock, only 2 left!

0

0590

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

0600

Ferris 5020047

COLLAR, 5/16" Set
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

0610

Ferris 5025664

BOLT, HEX, 1/4-20 X 2" TFL, GRADE 5, CZ
(Superseded to 5025664FS)

$3.49

$

Usually ships in 2-12 days

0
