FT900 (960820016-00) - Poulan Tiller (2010-03) Handle Assembly Parts Diagram

Tiller

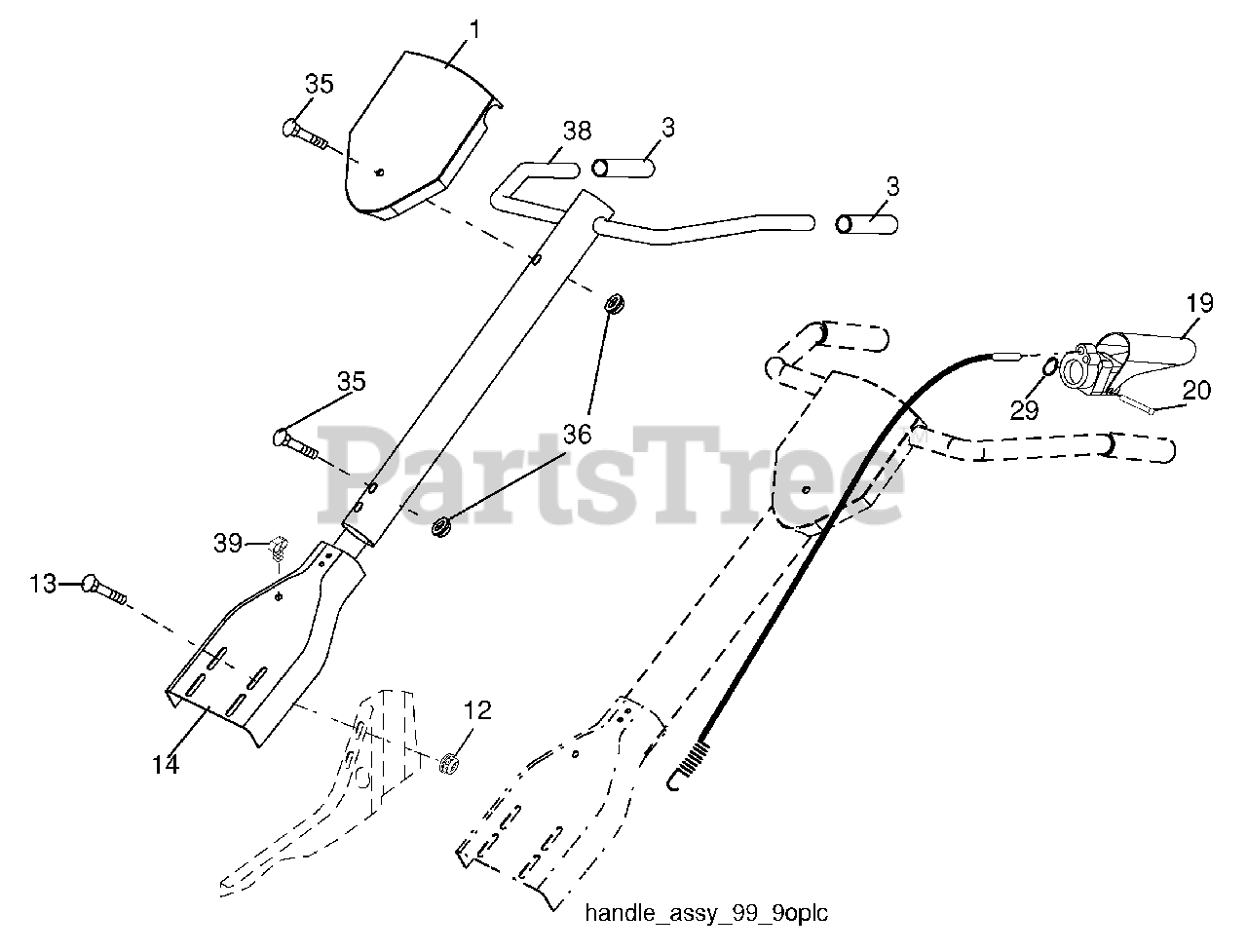

Handle Assembly Parts Diagram

  • Title
1

Electrolux/AYP 137118X421

Panel, Control

$

$

Not available

3

Electrolux/AYP 165787

Grip, Handle
(Superseded to 532165787)

$6.99

$

In Stock, only 2 left!

0

12

Electrolux/AYP 98000129

Nut, Flange
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

13

Electrolux/AYP 72010506

Bolt, Carriage 5/16-18 x 3/4

$2.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 181476

Assembly, Panel and Tube
(Superseded to 532446412)

$42.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 188532

Lever, Control, Tine
(Superseded to 532188532)

$

$

Not available

20

Electrolux/AYP 188555

Pin, Pivot
(Superseded to 532188555)

$6.49

$

In Stock, only 2 left!

0

29

Electrolux/AYP 12000059

Retainer, Ring
(Superseded to 582730101)

$6.49

$

In Stock, only 2 left!

0

35

Electrolux/AYP 72010520

Bolt 5/16-18 x 2-1/2
(Superseded to 872010520)

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 73970500

Locknut, Flange 5/16-18 unc
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

38

Electrolux/AYP 431332

Assembly, Handle Column

$

$

Not available

39

Electrolux/AYP 181580

Clip
(Superseded to 532181580)

$6.49

$

Usually ships in 3-10 days

0
