FT900 (960820016-00) - Poulan Tiller (2010-03) Belt Guard And Pulley Assembly Parts Diagram

Tiller

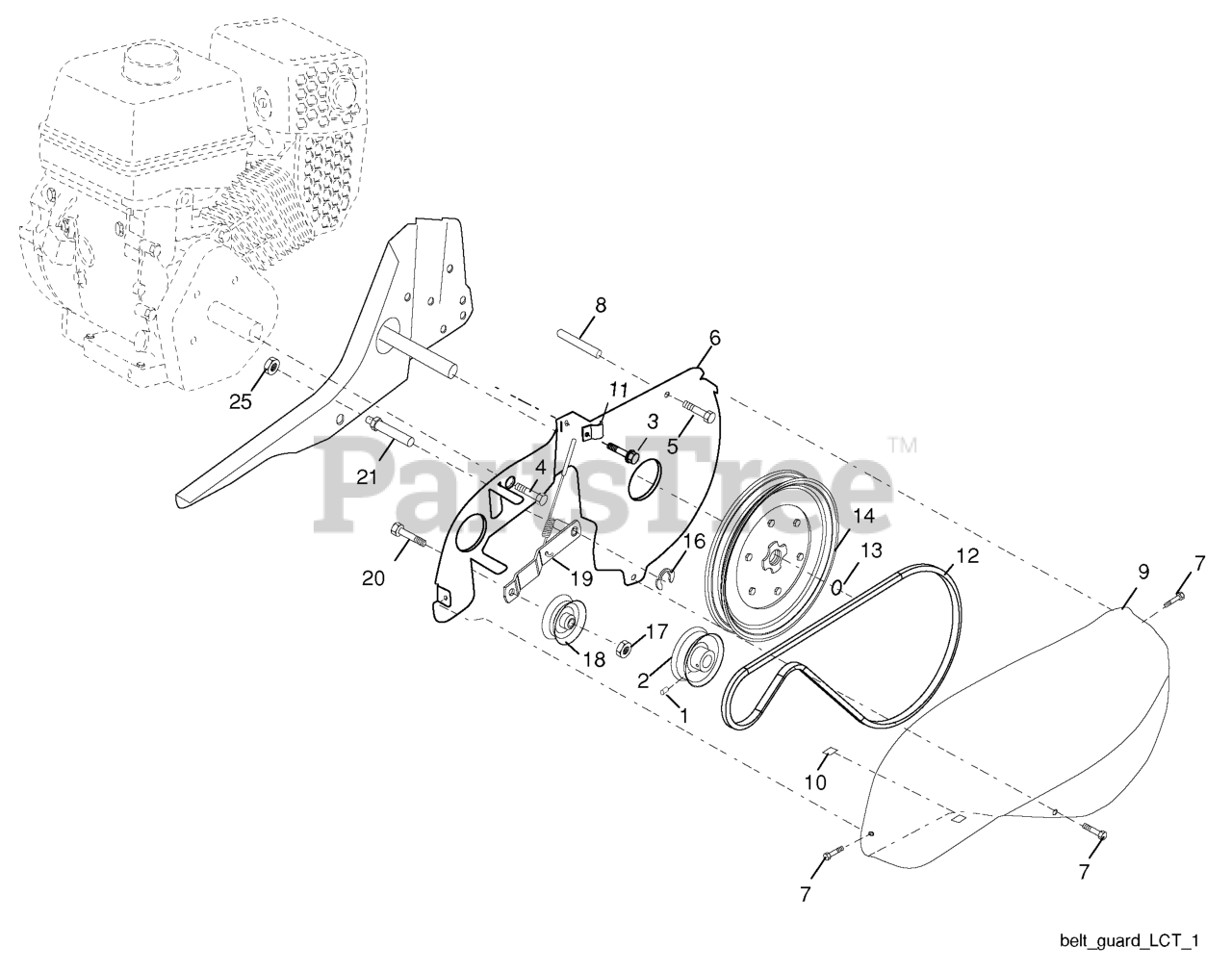

Belt Guard And Pulley Assembly Parts Diagram

  • Title
1

Electrolux/AYP 23230506

Screw Set 5/16-18 x 3/8 Patch
(Superseded to 823230506)

$4.99

$

In Stock, only 2 left!

0

2

Electrolux/AYP 130812

Sheave, Engine
(Superseded to 592642101)

$13.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 86777

Screw, Tap Hex Head
(Superseded to 532086777)

$

$

Not available

4

Electrolux/AYP 74770508

Bolt, Hex Head 5/16-24 unf x 1/2
(Superseded to 874770508)

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 17490440

Bolt, Thd Roller 1/4-20 x 2-1/2
(Superseded to 583789401)

$5.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 422920

Shield, Inner Belt Guard

$

$

Not available

7

Electrolux/AYP 170488

Screw Hex Wsh Hd #8-18 x 1/2
(Superseded to 532170488)

$6.49

$

In Stock, only 2 left!

0

8

Electrolux/AYP 139155

Spacer Split
(Superseded to 532139155)

$6.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 165768X421

Guard, Belt
(Superseded to 532167724)

$17.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 109227X

Pad, Idler
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 9484R

Clip, Cable
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

12

Electrolux/AYP 9180R

V-Belt
(Superseded to 532009180)

$30.99

$

In Stock, only 3 left!

0

13

Electrolux/AYP 12000028

Ring, Retainer
(Superseded to 812000028)

$7.49

$

In Stock, Qty 7

0

14

Electrolux/AYP 151223

Sheave, Transmisison
(Superseded to 532151223)

$39.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 12000036

Ring, Klip
(Superseded to 812000036)

$6.49

$

In Stock, only 1 left!

0

17

Electrolux/AYP 73350600

Nut, Hex, Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 161806

Pulley, Idler
(Superseded to 532161806)

$31.99

$

Usually ships in 3-10 days

0

19

$4.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 74760620

Bolt, Hex Head 3/8-16 x 1-1/4
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 106968X

Shaft, Idler Arm
(Superseded to 532106968)

$15.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 73350500

Nut, Hex, Jam 5/16-18
(Superseded to 873350500)

$8.99

$

Usually ships in 3-10 days

0
