FT730V-DS40 - Kawasaki Engine STARTER Parts Diagram

Engine

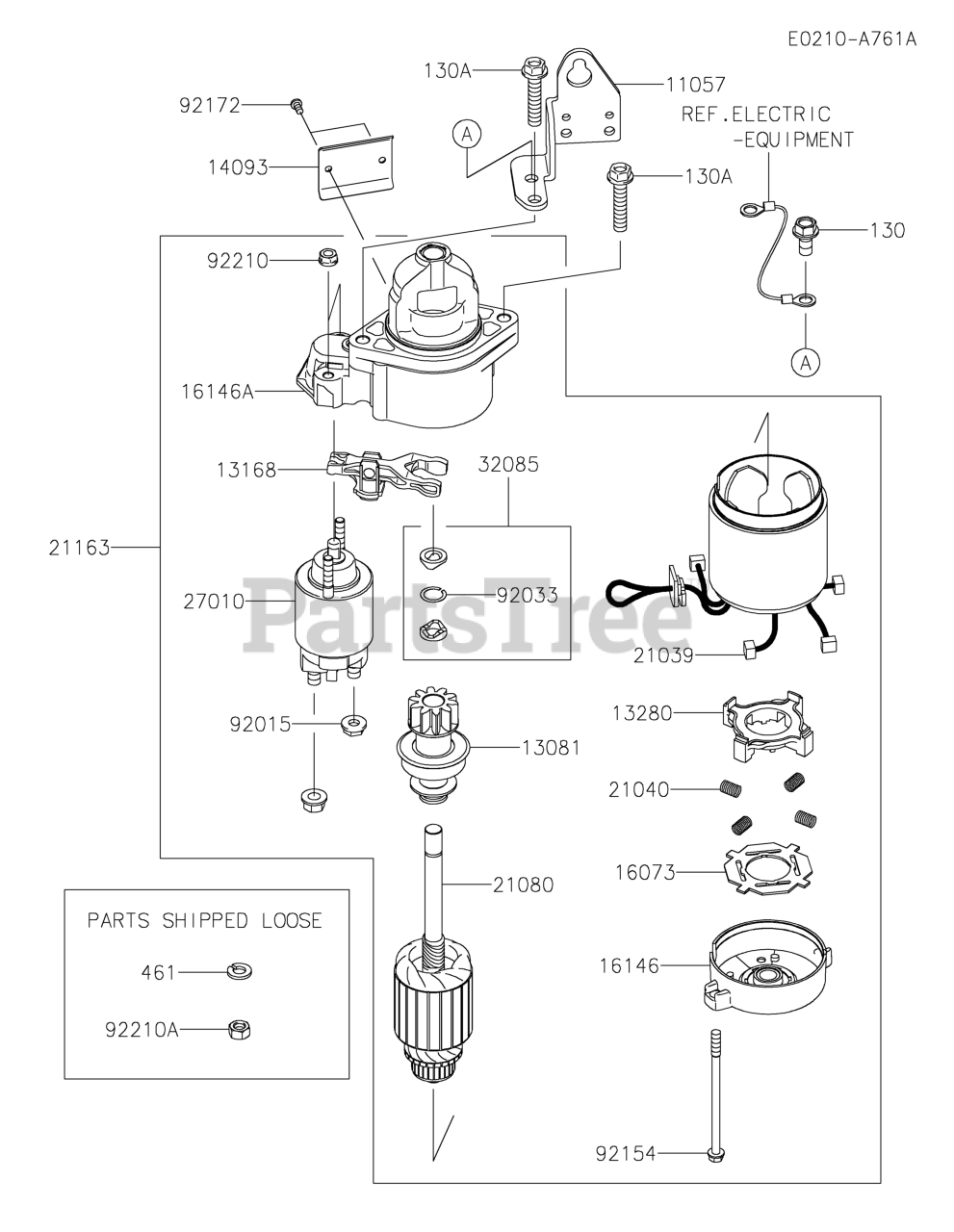

STARTER Parts Diagram

  • Title
11057

Kawasaki 11057-1624

BRACKET,FUSE

$4.49

$

Usually ships in 2-5 days

0

13081

Kawasaki 13081-0651

CLUTCH-ASSY,STARTER-ELECTRIC
(Superseded to 130817002)

$148.99

$

Usually ships in 2-5 days

0

13168

Kawasaki 13168-0847

LEVER,PINION DRIVE
(Superseded to 131682148)

$25.99

$

Usually ships in 2-5 days

0

13280

Kawasaki 13280-0873

HOLDER,BRUSH
(Superseded to 130912068)

$29.99

$

Usually ships in 2-5 days

0

14093

$2.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 16073-0854

INSULATOR
(Superseded to 160732098)

$10.99

$

Usually ships in 2-5 days

0

16146

Kawasaki 16146-0796

COVER-ASSY,COMMUTATOR END
(Superseded to 161462077)

$83.99

$

In Stock, only 1 left!

0

16146A

Kawasaki 16146-0801

COVER-ASSY,STARTER DRIVE

$85.99

$

Usually ships in 2-5 days

0

21039

Kawasaki 21039-0011

BRUSH,STARTER-ELECTRIC
(Superseded to 210392059)

$15.99

$

In Stock, only 1 left!

0

21040

Kawasaki 21040-0005

SPRING-BRUSH
(Superseded to 210402052)

$3.99

$

Usually ships in 2-5 days

0

21080

Kawasaki 21080-0011

ARMATURE,STARTER-ELECTRIC
(Superseded to 210802058)

$281.99

$

Usually ships in 2-5 days

0

21163

Kawasaki 21163-0754

STARTER-ELECTRIC
(Superseded to 99996-6120)

$247.99

$

In Stock, Qty 20+

0

27010

Kawasaki 27010-0843

SWITCH,MAGNET
(Superseded to 270107005)

$189.99

$

In Stock, Qty 14

0

32085

Kawasaki 32085-0797

STOPPER,PINION
(Superseded to 320852097)

$15.99

$

Usually ships in 2-5 days

0

$7.49

$

Usually ships in 2-5 days

0

92033

Kawasaki 92033-0777

RING-SNAP
(Superseded to 920332081)

$6.99

$

Usually ships in 2-5 days

0

92154

Kawasaki 92154-2116

BOLT
(Superseded to 920022277)

$13.99

$

In Stock, Qty 5

0

92172

$0.99

$

In Stock, only 4 left!

0

92210

Kawasaki 92210-1493

NUT
(Superseded to 920152146)

$1.99

$

Usually ships in 2-5 days

0

92210A

$1.99

$

In Stock, Qty 20+

0

130

Kawasaki 130BA-0816

BOLT-FLANGED,8X16

$1.49

$

Usually ships in 2-5 days

0

130A

Kawasaki 130BA0840

BOLT-FLANGED,8X40
(Superseded to 130AA0840)

$2.49

$

In Stock, Qty 7

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
