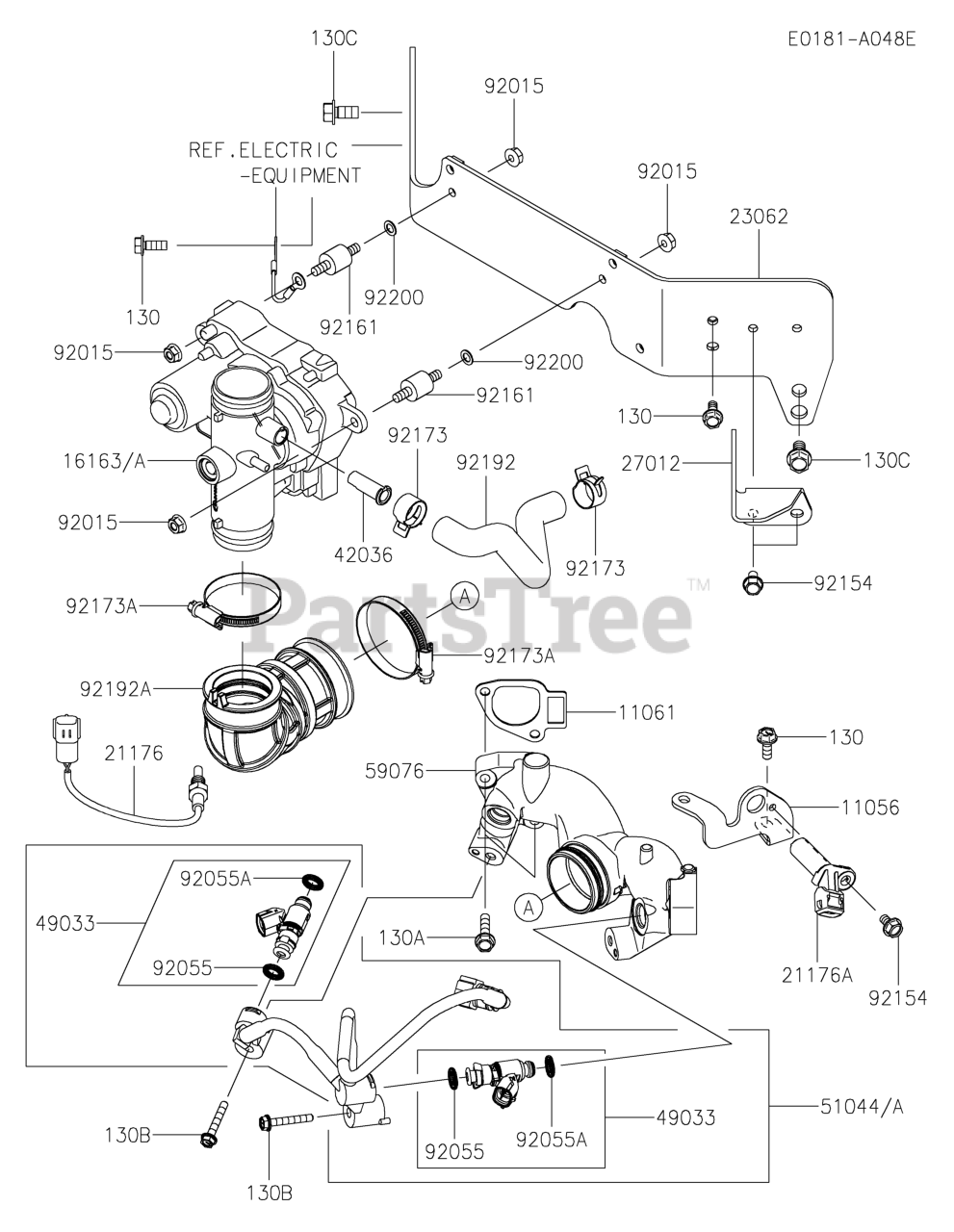

FT730V-CS46 - Kawasaki Engine THROTTLE-EQUIPMENT Parts Diagram

Engine

THROTTLE-EQUIPMENT Parts Diagram

  • Title

11056

Kawasaki 11056-3900

BRACKET

$9.49

$

In Stock, only 1 left!

0

11061

Kawasaki 11061-7093

GASKET,MANIFOLD
(Superseded to 11061-7085)

$1.99

$

In Stock, Qty 20+

0

16163

Kawasaki 16163-1220

THROTTLE-ASSY

$504.99

$

Usually ships in 2-5 days

0

21176

Kawasaki 21176-0771

SENSOR

$27.99

$

In Stock, only 2 left!

0

21176A

Kawasaki 21176-0772

SENSOR

$30.99

$

In Stock, Qty 7

0

23062

Kawasaki 23062-1163

BRACKET-COMP

$45.99

$

Usually ships in 2-5 days

0

27012

Kawasaki 27012-0831

HOOK,LIFT

$3.49

$

Usually ships in 2-5 days

0

42036

Kawasaki 42036-0800

SLEEVE

$1.49

$

Usually ships in 2-5 days

0

49033

Kawasaki 49033-0045

NOZZLE-INJECTION

$

$

Not available

51044

Kawasaki 51044-0967

TUBE-ASSY

$

$

Not available

59076

Kawasaki 59076-0021

MANIFOLD-INTAKE

$120.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1367

NUT,FLANGED,6MM

$4.49

$

In Stock, Qty 20+

0

92055

Kawasaki 92055-0908

RING-O,NOZZLE-INJECTION

$14.99

$

Usually ships in 2-5 days

0

92055A

Kawasaki 92055-0909

RING-O,NOZZLE-INJECTION

$14.99

$

Usually ships in 2-5 days

0

92154

Kawasaki 92154-2938

BOLT,6X12

$0.99

$

In Stock, Qty 20+

0

92161

Kawasaki 92161-1763

DAMPER

$2.99

$

Usually ships in 2-5 days

0

92173

Kawasaki 92173-7003

CLAMP

$2.49

$

In Stock, Qty 20+

0

92173A

Kawasaki 92173-7009

CLAMP

$8.49

$

In Stock, only 2 left!

0

92192

Kawasaki 92192-1769

TUBE,BREATHER

$5.99

$

Usually ships in 2-5 days

0

92192A

Kawasaki 92192-1770

TUBE,TH-MANIFOLD

$20.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-1759

WASHER

$0.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130BA0616

BOLT-FLANGED,6X16
(Superseded to 92002-1090)

$1.49

$

In Stock, only 2 left!

0

130A

Kawasaki 130BA0630

BOLT-FLANGED,6X30
(Superseded to 130B0630)

$1.99

$

In Stock, only 3 left!

0

130B

Kawasaki 130BA0640

BOLT-FLANGED,6X40
(Superseded to 130B0640)

$0.99

$

In Stock, Qty 20+

0

130C

Kawasaki 130BA-0816

BOLT-FLANGED,8X16

$1.49

$

Usually ships in 2-5 days

0
