FT730V-AS43 - Kawasaki Engine FUEL-TANK/FUEL-VALVE Parts Diagram

Engine

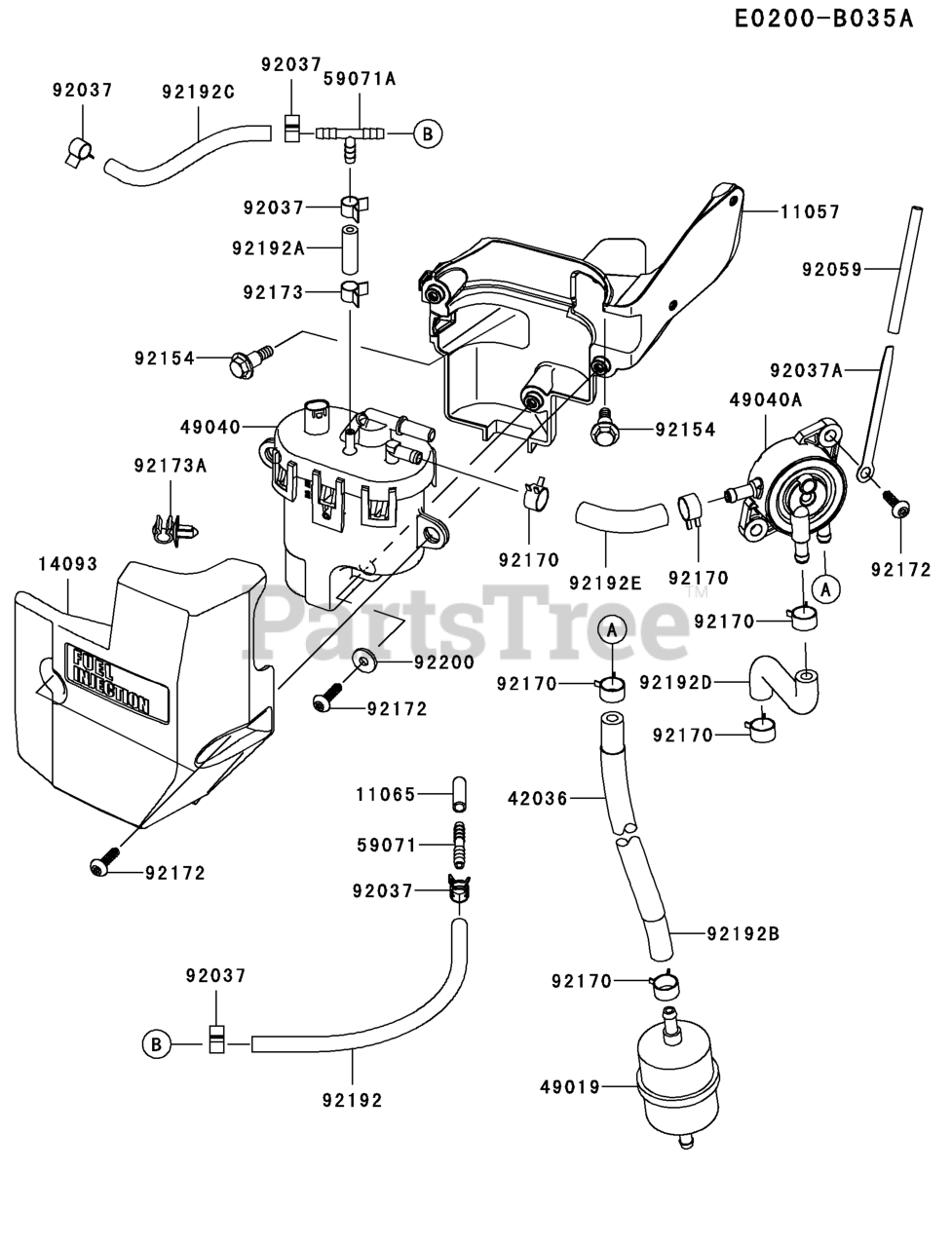

FUEL-TANK/FUEL-VALVE Parts Diagram

  • Title

11057

Kawasaki 11057-0750

BRACKET,PUMP-FUEL

$14.99

$

Usually ships in 2-5 days

0

11065

Kawasaki 11065-7037

CAP
(Superseded to 11065-7023)

$0.99

$

In Stock, Qty 5

0

14093

Kawasaki 14093-0595

COVER,PUMP-FUEL

$

$

Not available

42036

Kawasaki 42036-0841

SLEEVE

$5.99

$

Usually ships in 2-5 days

0

49019

Kawasaki 49019-0031

FILTER-FUEL

$7.99

$

In Stock, Qty 20+

0

49040

Kawasaki 49040-0736

PUMP-FUEL

$270.99

$

In Stock, Qty 5

0

49040A

Kawasaki 49040-0769

PUMP-FUEL

$37.99

$

Usually ships in 2-5 days

0

59071

Kawasaki 59071-0050

JOINT

$3.99

$

Usually ships in 2-5 days

0

59071A

Kawasaki 59071-0723

JOINT

$3.49

$

Usually ships in 2-5 days

0

92037

Kawasaki 92037-1461

CLAMP,TUBE

$4.49

$

Usually ships in 2-5 days

0

92037A

Kawasaki 92037-2006

CLAMP

$1.49

$

Usually ships in 2-5 days

0

92059

Kawasaki 92059-2011

TUBE,5X6X75

$0.99

$

Usually ships in 2-5 days

0

92154

Kawasaki 92154-2665

BOLT

$0.99

$

Usually ships in 2-5 days

0

92170

Kawasaki 92170-2009

CLAMP

$

$

Not available

92172

Kawasaki 92172-0896

SCREW,5X19.6

$3.99

$

Usually ships in 2-5 days

0

92173

Kawasaki 92173-1495

CLAMP

$0.99

$

Usually ships in 2-5 days

0

92173A

Kawasaki 92173-1699

CLAMP,TUBE-ASSY

$

$

Not available

92192

Kawasaki 92192-1209

TUBE,4.76X8.74X200

$2.99

$

Usually ships in 2-5 days

0

92192A

Kawasaki 92192-1372

TUBE,4.76X8.74X35

$0.99

$

Usually ships in 2-5 days

0

92192B

Kawasaki 92192-1559

TUBE,6.35X12.7X360

$

$

Not available

92192C

Kawasaki 92192-1771

TUBE,EVAP

$1.49

$

Usually ships in 2-5 days

0

92192D

Kawasaki 92192-1772

TUBE,PULSE

$2.49

$

In Stock, only 1 left!

0

92192E

Kawasaki 92192-1773

TUBE,6.35X12.7X80

$

$

Not available

92200

Kawasaki 92200-1850

WASHER,5.3X15X1.2

$0.99

$

Usually ships in 2-5 days

0
