FT730V-AS41 - Kawasaki Engine THROTTLE-EQUIPMENT Parts Diagram

Engine

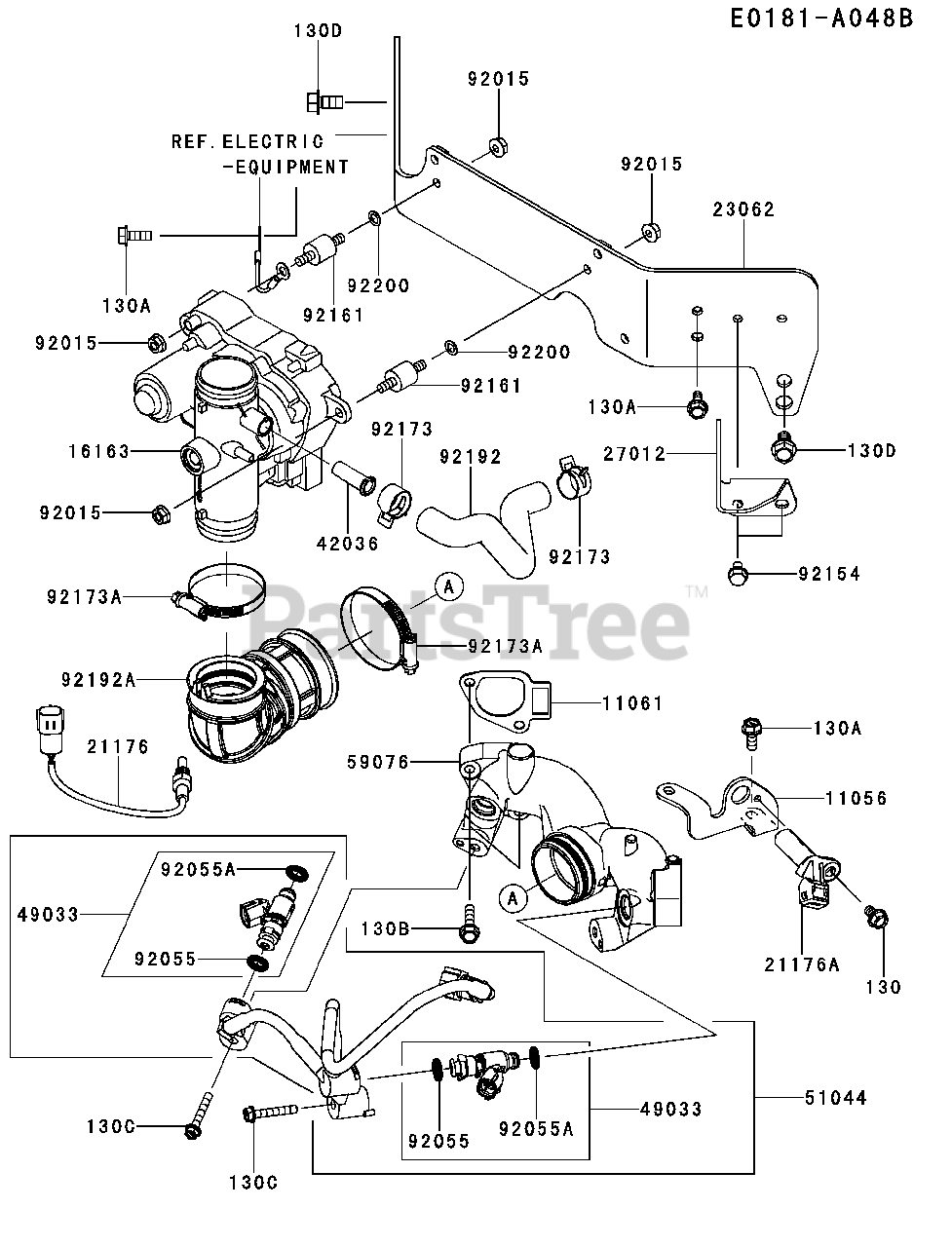

THROTTLE-EQUIPMENT Parts Diagram

  • Title

11056

Kawasaki 110563900

BRACKET

$9.49

$

In Stock, only 1 left!

0

11061

Kawasaki 110617093

GASKET,MANIFOLD
(Superseded to 11061-7085)

$1.99

$

In Stock, Qty 17

0

16163

Kawasaki 161630964

THROTTLE-ASSY

$

$

Not available

21176

Kawasaki 211760771

SENSOR

$27.99

$

In Stock, only 2 left!

0

21176A

Kawasaki 211760772

SENSOR

$30.99

$

In Stock, only 1 left!

0

23062

Kawasaki 230621163

BRACKET-COMP

$45.99

$

Usually ships in 2-5 days

0

27012

Kawasaki 270120831

HOOK,LIFT

$3.49

$

Usually ships in 2-5 days

0

42036

Kawasaki 420360800

SLEEVE

$1.49

$

Usually ships in 2-5 days

0

49033

Kawasaki 490330045

NOZZLE-INJECTION

$

$

Not available

51044

Kawasaki 510440883

TUBE-ASSY

$

$

Not available

59076

Kawasaki 590760021

MANIFOLD-INTAKE

$120.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 920151367

NUT,FLANGED,6MM

$4.49

$

In Stock, only 2 left!

0

92055

Kawasaki 920550908

RING-O,NOZZLE-INJECTI

$14.99

$

Usually ships in 2-5 days

0

92055A

Kawasaki 920550909

RING-O,NOZZLE-INJECTI

$14.99

$

Usually ships in 2-5 days

0

92154

Kawasaki 921542938

BOLT,6X12

$0.99

$

In Stock, Qty 20+

0

92161

Kawasaki 921611763

DAMPER

$2.99

$

Usually ships in 2-5 days

0

92173

Kawasaki 921737003

CLAMP

$2.49

$

In Stock, Qty 15

0

92173A

Kawasaki 921737009

CLAMP

$8.49

$

In Stock, only 2 left!

0

92192

Kawasaki 921921769

TUBE,BREATHER

$5.99

$

Usually ships in 2-5 days

0

92192A

Kawasaki 921921770

TUBE,TH-MANIFOLD

$20.99

$

Usually ships in 2-5 days

0

92200

Kawasaki 922001759

WASHER

$0.99

$

Usually ships in 2-5 days

0

130

Kawasaki 130BA0612

BOLT-FLANGED,6X12
(Superseded to 92009-7008)

$1.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130BA0616

BOLT-FLANGED,6X16
(Superseded to 92002-1090)

$1.49

$

In Stock, only 2 left!

0

130B

Kawasaki 130BA0630

BOLT-FLANGED,6X30
(Superseded to 130B0630)

$1.99

$

In Stock, only 3 left!

0

130C

Kawasaki 130BA0640

BOLT-FLANGED,6X40
(Superseded to 130B0640)

$0.99

$

In Stock, only 3 left!

0

130D

Kawasaki 130BA0816

BOLT-FLANGED,8X16
(Superseded to 130B0816)

$0.99

$

In Stock, Qty 20+

0
