FT730V-AS09 - Kawasaki Engine CONTROL-EQUIPMENT Parts Diagram

Engine

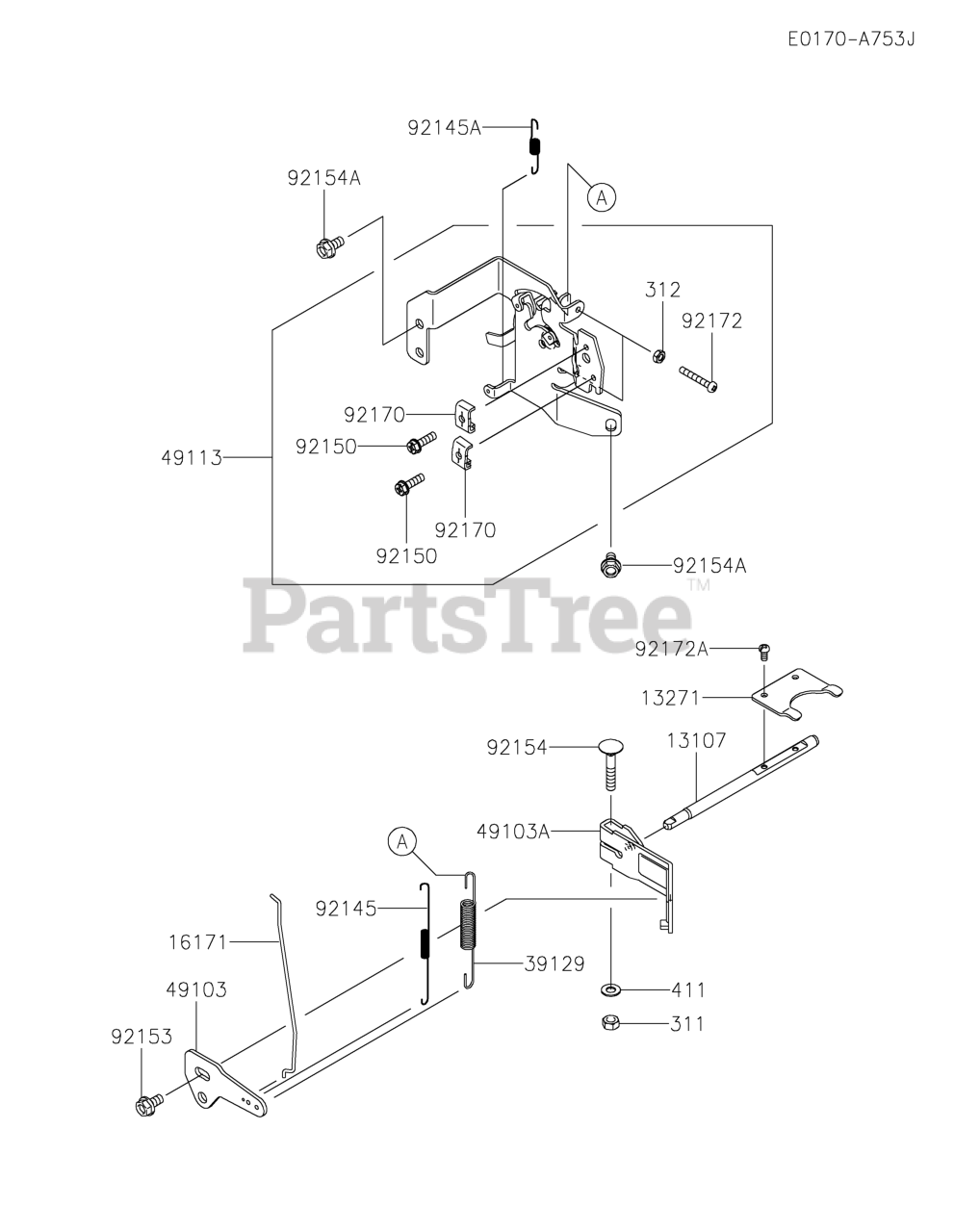

CONTROL-EQUIPMENT Parts Diagram

  • Title

13107

Kawasaki 13107-7047

SHAFT,GOVERNOR
(Superseded to 13107-7044)

$11.99

$

In Stock, only 2 left!

0

13271

Kawasaki 13271-7038

PLATE

$3.49

$

In Stock, only 1 left!

0

16171

Kawasaki 16171-0042

LINK

$0.99

$

In Stock, Qty 10

0

39129

Kawasaki 39129-7028

SPRING-GOVERNOR

$

$

Not available

49103

Kawasaki 49103-0010

ARM-GOVERNOR
(Superseded to 49103-7015)

$3.99

$

In Stock, only 1 left!

0

49103A

Kawasaki 49103-7014

ARM-GOVERNOR

$5.99

$

In Stock, Qty 20+

0

49113

Kawasaki 49113-0727

PANEL-COMP-CONTROL
(Superseded to 49113-7050)

$27.99

$

Usually ships in 2-5 days

0

92145

Kawasaki 92145-1811

SPRING,LINK

$3.99

$

In Stock, only 3 left!

0

92145A

Kawasaki 92145-1812

SPRING

$1.99

$

In Stock, only 3 left!

0

92150

Kawasaki 92150-2182

BOLT,5X18

$0.99

$

In Stock, Qty 10

0

92153

Kawasaki 92153-0009

BOLT,6X12

$1.99

$

In Stock, Qty 20+

0

92154

Kawasaki 92154-2697

BOLT,6X35

$0.99

$

In Stock, Qty 9

0

92154A

Kawasaki 92154-2938

BOLT,6X12

$0.99

$

In Stock, Qty 20+

0

92170

Kawasaki 92170-7001

CLAMP

$2.99

$

In Stock, only 3 left!

0

92172

Kawasaki 92172-0792

SCREW,5X35

$1.99

$

In Stock, only 2 left!

0

92172A

Kawasaki 92172-0870

SCREW,4X8

$0.99

$

In Stock, only 2 left!

0

311

Kawasaki 311BA0600

NUT-HEX,6MM
(Superseded to 310G0600)

$

$

Not available

312

Kawasaki 312AA0500

NUT-HEX,5MM

$0.99

$

In Stock, Qty 6

0

411

Kawasaki 411AA0600

WASHER-PLAIN,6MM
(Superseded to 411B0600)

$4.49

$

In Stock, only 2 left!

0
