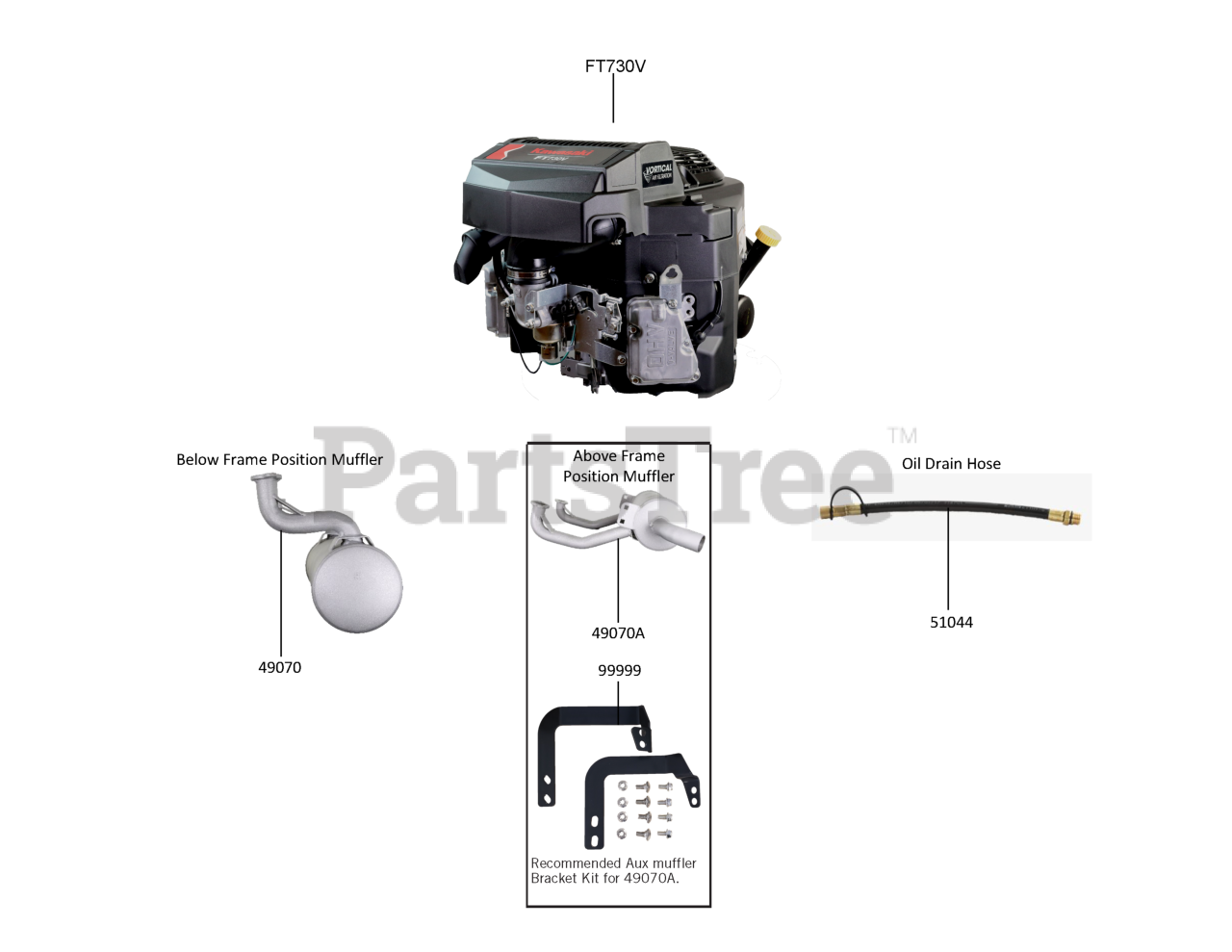

FT730V-AS06 - Kawasaki Engine *REPLACEMENT ENGINE / ACCESSORIES Parts Diagram

Kawasaki FT730V-AS00S

Note: Transfer engine wiring harness, flexible oil drain tube, and normally closed oil pressure switch. Transfer or replace 305mm long fuel tube to filter.

Kawasaki 49070-0878

Note: CONFIRM MUFFLER FITS APPLICATIONS BEFORE ORDERING - REFER TO "MUFFLERS" UNDER "ACCESSORIES, MAINTENANCE ITEMS, & REPLACEMENT PARTS" FOR DIMENSIONS.

Kawasaki 49070-0877

Note: CONFIRM MUFFLER FITS APPLICATIONS BEFORE ORDERING - REFER TO "MUFFLERS" UNDER "ACCESSORIES, MAINTENANCE ITEMS, & REPLACEMENT PARTS" FOR DIMENSIONS.

Kawasaki 99999-0769

Note: RECOMMENDED FOR MUFFLERS PN 49070-0877 AND PN 49070-0880.

Kawasaki 51044-0902
