FT730V-AS06 - Kawasaki Engine AIR-FILTER/MUFFLER Parts Diagram

Engine

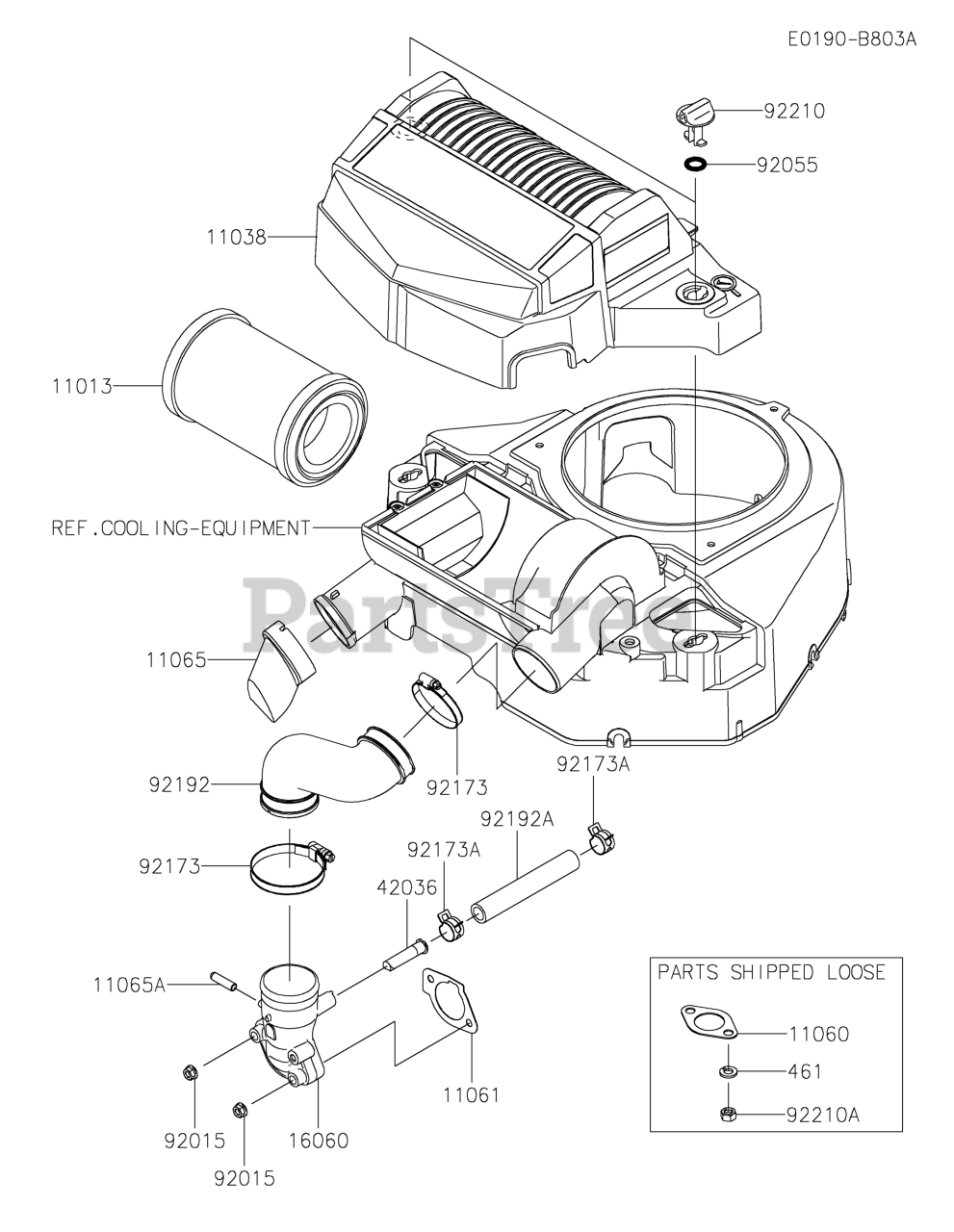

AIR-FILTER/MUFFLER Parts Diagram

  • Title

11013

Kawasaki 11013-0807

ELEMENT-AIRFILTER

$30.99

$

In Stock, only 1 left!

0

11038

Kawasaki 11038-0720

CASE-ASSY-AIRFILTER

$57.99

$

Usually ships in 2-5 days

0

11060

Kawasaki 11060-7016

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

11061

Kawasaki 11061-7086

GASKET,CARBURETOR/PIPE-INTAKE

$1.99

$

In Stock, only 4 left!

0

11065

Kawasaki 11065-0981

CAP

$19.99

$

In Stock, only 1 left!

0

11065A

Kawasaki 11065-7037

CAP
(Superseded to 11065-7023)

$0.99

$

In Stock, Qty 5

0

16060

Kawasaki 16060-0777

PIPE-INTAKE

$35.99

$

In Stock, only 4 left!

0

42036

Kawasaki 42036-0781

SLEEVE,BREATHER
(Superseded to 42036-7022)

$1.49

$

In Stock, Qty 20+

0

92015

Kawasaki 92015-1367

NUT,FLANGED,6MM

$4.49

$

In Stock, only 2 left!

0

92055

Kawasaki 92055-7025

RING-O

$1.49

$

In Stock, Qty 20+

0

92173

Kawasaki 92173-2428

CLAMP

$8.49

$

Usually ships in 2-5 days

0

92173A

Kawasaki 92173-7003

CLAMP

$2.49

$

In Stock, Qty 15

0

92192

Kawasaki 92192-2267

TUBE,AC-TH

$19.99

$

Usually ships in 2-5 days

0

92192A

Kawasaki 92192-7146

TUBE,12.6X18.6X118

$1.99

$

In Stock, only 2 left!

0

92210

Kawasaki 92210-1730

NUT

$1.49

$

In Stock, Qty 20+

0

92210A

Kawasaki 92210-7027

NUT,M8

$1.99

$

In Stock, only 3 left!

0

461

Kawasaki 461DA0800

WASHER-SPRING,8MM
(Superseded to 92200-0918)

$0.99

$

In Stock, Qty 20+

0
