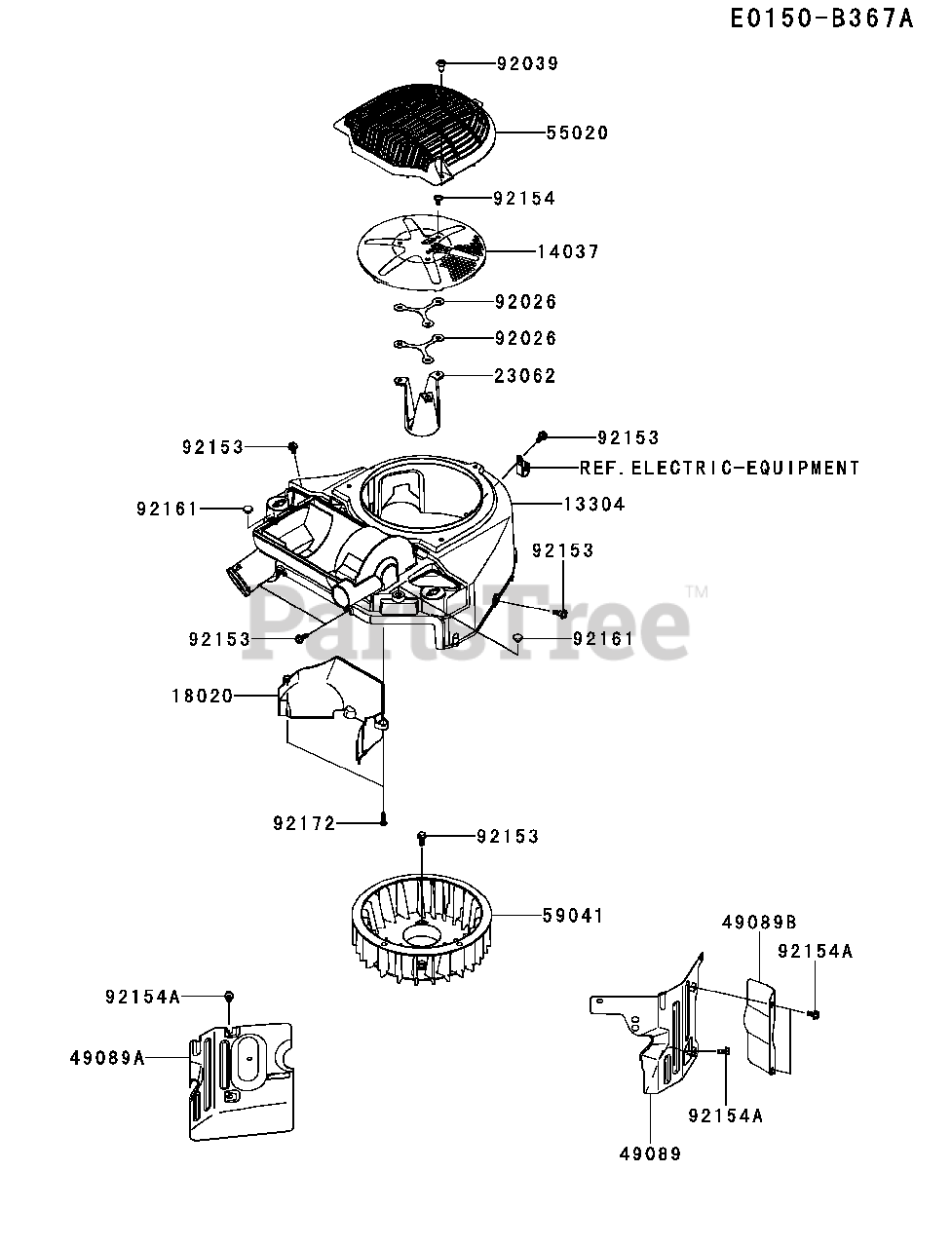

FT730V-AS02 - Kawasaki Engine COOLING-EQUIPMENT Parts Diagram

Engine

COOLING-EQUIPMENT Parts Diagram

  • Title
13304

Kawasaki 13304-0008

HOUSING-ASSY

$

$

Not available

14037

Kawasaki 1403770089H

SCREEN
(Superseded to 14037-7008)

$

$

Currently unavailable

18020

$9.49

$

Usually ships in 2-5 days

0

23062

Kawasaki 230627024

BRACKET-COMP

$12.99

$

In Stock, Qty 14

0

49089

Kawasaki 490890928

SHROUD-ENGINE,#2

$33.99

$

Usually ships in 2-5 days

0

49089A

Kawasaki 490890932

SHROUD-ENGINE,#1

$34.99

$

Usually ships in 2-5 days

0

49089B

Kawasaki 490897076

SHROUD-ENGINE
(Superseded to 49089-7076-753)

$7.99

$

Usually ships in 2-5 days

0

55020

Kawasaki 550202169

GUARD,FAN

$41.99

$

Usually ships in 2-5 days

0

59041

$

$

Not available

92026

$5.99

$

In Stock, Qty 20+

0

92039

Kawasaki 920390751

RIVET,GUARD

$0.99

$

In Stock, Qty 20+

0

92153

Kawasaki 921537007

BOLT,RECOIL STARTER

$4.49

$

In Stock, Qty 20+

0

92154

Kawasaki 921542687

BOLT,6X12

$1.49

$

In Stock, Qty 20+

0

92154A

Kawasaki 921542938

BOLT,6X12

$0.99

$

In Stock, Qty 20+

0

92161

$3.49

$

Usually ships in 2-5 days

0

92172

Kawasaki 921720896

SCREW,5X19.6

$3.99

$

Usually ships in 2-5 days

0
