FT7251 (7800944-00) - Snapper Front-Tine Tiller, 7.25hp Tine Assembly Group (988650) Parts Diagram

Front-Tine Tiller, 7.25hp

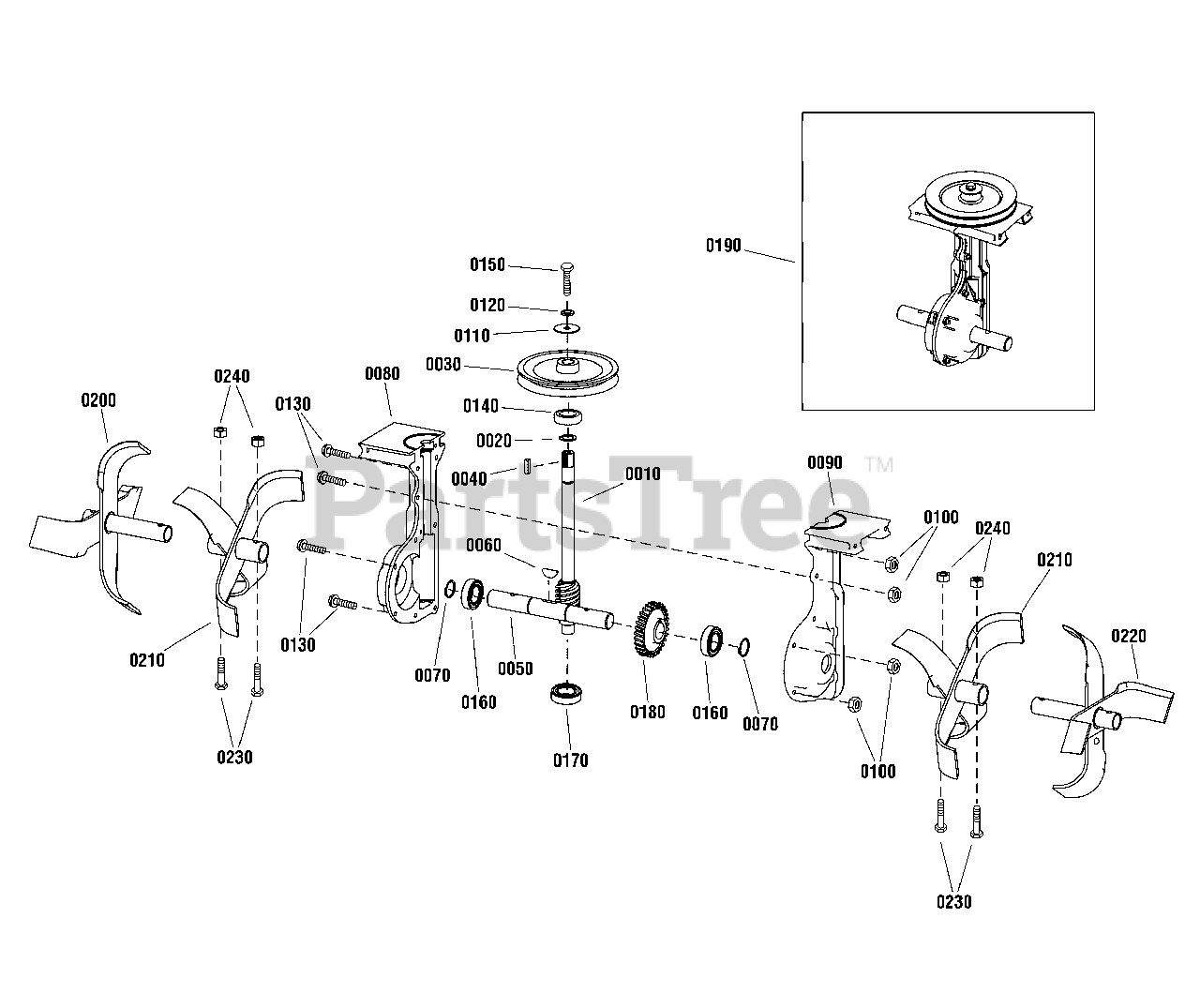

Tine Assembly Group (988650) Parts Diagram

  • Title

0010

* SHAFT, Drive

Note: (Not a serviceable part, order complete transmission.) each

$

$

Not available

0020

Snapper 1738776

RING, Snap, External, 3/4
(Superseded to 1738776YP)

Note: each

$6.99

$

In Stock, only 2 left!

0

0030

Snapper 1738702

PULLEY, Single-Groove
(Superseded to 1738702YP)

Note: each

$70.99

$

Usually ships in 2-12 days

0

0040

Snapper 1716771

KEY, Square, 3/16 x 5/8
(Superseded to 1716771YP)

Note: each

$5.99

$

Usually ships in 2-12 days

0

0050

* SHAFT, Tine, 1"

Note: (Not a serviceable part, order complete transmission.) each

$

$

Not available

0060

Snapper 1716813

KEY, Half-Moon, 1/4 x 1
(Superseded to 1716813SM)

Note: each

$5.49

$

Usually ships in 2-12 days

0

0070

Snapper 1716830

RING, Snap, External
(Superseded to 1716830SM)

Note: each

$4.49

$

Usually ships in 2-12 days

0

0080

* CASTING, Right Side

Note: (Not a serviceable part, order complete transmission.) each

$

$

Not available

0090

* CASTING, Left Side

Note: (Not a serviceable part, order complete transmission.) each

$

$

Not available

0100

Snapper 722393

NUT, Hex Ny-Lock, 1/4-20
(Superseded to 703232)

Note: each

$4.49

$

In Stock, Qty 20+

0

0110

Snapper 1716770

WASHER, 5/16 I.D. x 1-5/8 O.D.
(Superseded to 1716770SM)

Note: each

$6.99

$

Usually ships in 2-12 days

0

0120

Snapper 1917356

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

Note: each

$3.49

$

In Stock, Qty 20+

0

0130

Snapper 1716795

BOLT, Serated-Flange, Hex-Head, 1/4-20 x 7/8
(Superseded to 1716795SM)

Note: each

$3.49

$

Usually ships in 2-12 days

0

0140

Snapper 1738727

BEARING, Ball, R12
(Superseded to 1738727YP)

Note: each

$72.99

$

Usually ships in 2-12 days

0

0150

Snapper 1921515

SCREW, Hex-Head, 5/16-24 x 3/4
(Superseded to 1921515SM)

Note: each

$3.99

$

Usually ships in 2-12 days

0

0160

Snapper 1738701

BEARING, Sealed, 1" I.D. (replaces 3205 bearing & 747 spacer)
(Superseded to 1738701YP)

Note: each

$43.99

$

Usually ships in 2-12 days

0

0170

Snapper 1716810

BEARING, Tapered (Includes Cone & Race)
(Superseded to 1716810SM)

Note: each

$56.99

$

Usually ships in 2-12 days

0

0180

Snapper 706341

* GEAR , Brass, 1" I.D.

Note: each

$90.99

$

Usually ships in 2-12 days

0

0190

Snapper 1738696

TRANSMISSION, Complete
(Superseded to 1738696YP)

Note: each

$877.99

$

Usually ships in 2-12 days

0

0200

Snapper 1738706

TINE SET, Outside, Right
(Superseded to 1738706YP)

Note: each

$161.99

$

Usually ships in 2-12 days

0

0210

Snapper 1738707

TINE SET, Inside
(Superseded to 1738707YP)

Note: each

$136.99

$

Usually ships in 2-12 days

0

0220

Snapper 1738708

TINE SET, Outside, Left
(Superseded to 1738708YP)

Note: each

$182.99

$

Usually ships in 2-12 days

0

0230

Snapper 1922127

BOLT, Hex-Head, 5/16-18 x 1-3/4
(Superseded to 704288)

Note: each

$4.99

$

Usually ships in 2-12 days

0

0240

Snapper 1923362

NUT, Bi-Way Lock, 5/16-18
(Superseded to 703164)

Note: each

$3.49

$

In Stock, Qty 19

0
