FT 900 L (960820024-00) - Poulan Pro Front-Tine Tiller (2011-04) TRANSMISSION Parts Diagram

Front-Tine Tiller

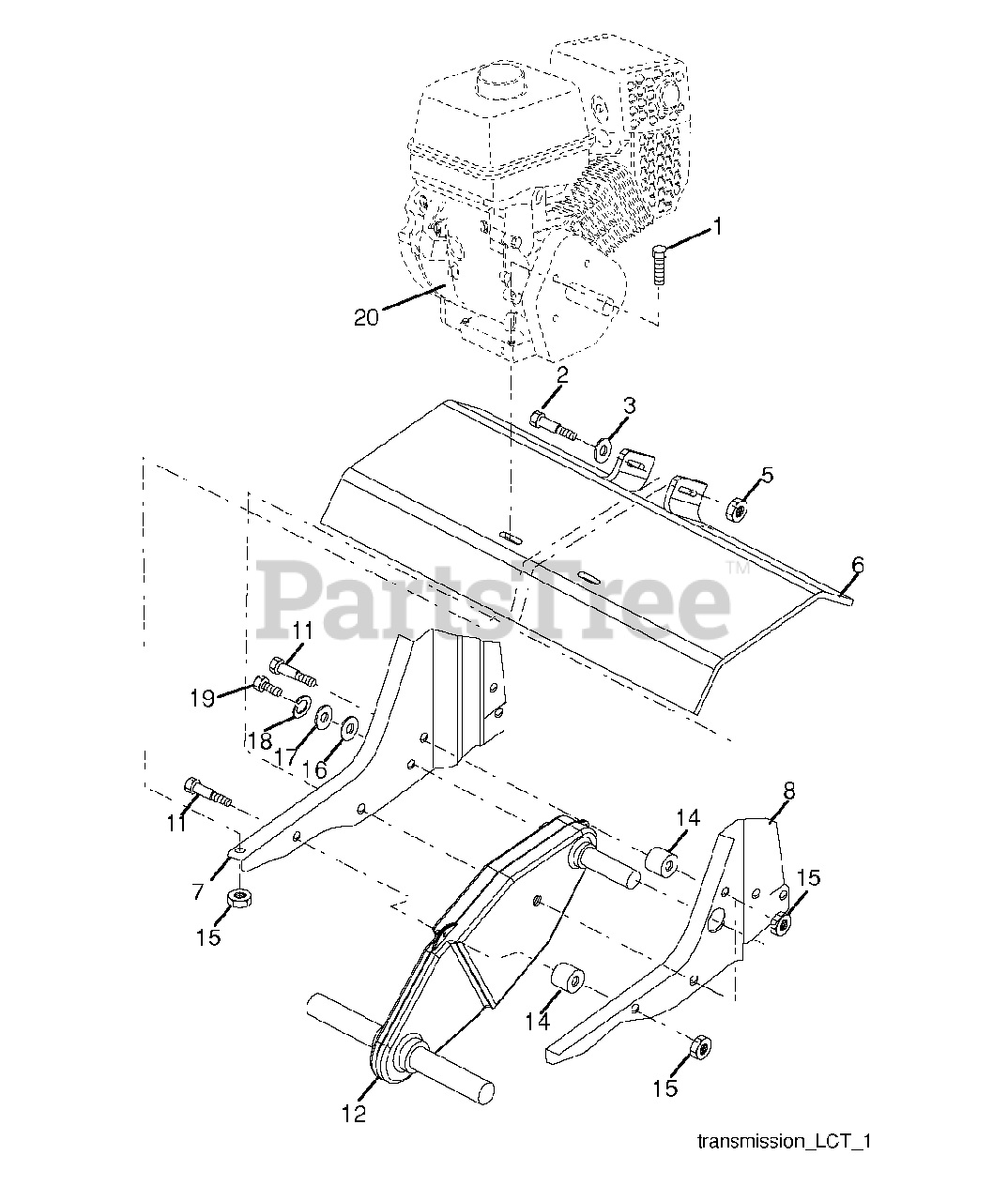

TRANSMISSION Parts Diagram

  • Title

1

Poulan 874760524

BOLT
(Superseded to 74760524)

$2.49

$

Usually ships in 3-10 days

0

2

Poulan 874780652

(Superseded to 583614901)

$2.99

$

Usually ships in 3-10 days

0

3

Poulan 819131311

(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

5

Poulan 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

6

Poulan 532138330

$

$

Not available

7

Poulan 532188195

RP BRACKET, ENGINE, R.H.
(Superseded to 532446006)

Note: RH

$

$

Not available

8

Poulan 532165834

BRACKET.ENGINE.TILLER.LH.BLACK
(Superseded to 584325101)

Note: LH

$31.99

$

Usually ships in 3-10 days

0

11

Poulan 532187912

BOLT, HEX HEAD 5/16-18 X 2.5

$5.99

$

Usually ships in 3-10 days

0

12

Poulan 532151222

TRANSMISSION.ASM.W/1".D-SHAFT

$

$

Not available

14

Poulan 532009173

SPACER

$

$

Not available

15

Poulan 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

16

Poulan 819091412

(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

17

Poulan 819092016

WASHER

$6.99

$

In Stock, only 1 left!

0

18

Poulan 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

19

Poulan 874610412

(Superseded to 582738901)

$4.99

$

In Stock, only 1 left!

0

20

Poulan 532418967

ENGINE.LCT.8.00.FT.LBS.MAN
(Superseded to 532445964)

Note: ENGINE LCT MODEL PLMHK14600124P-BPQE2

$911.99

$

Usually ships in 3-10 days

0
