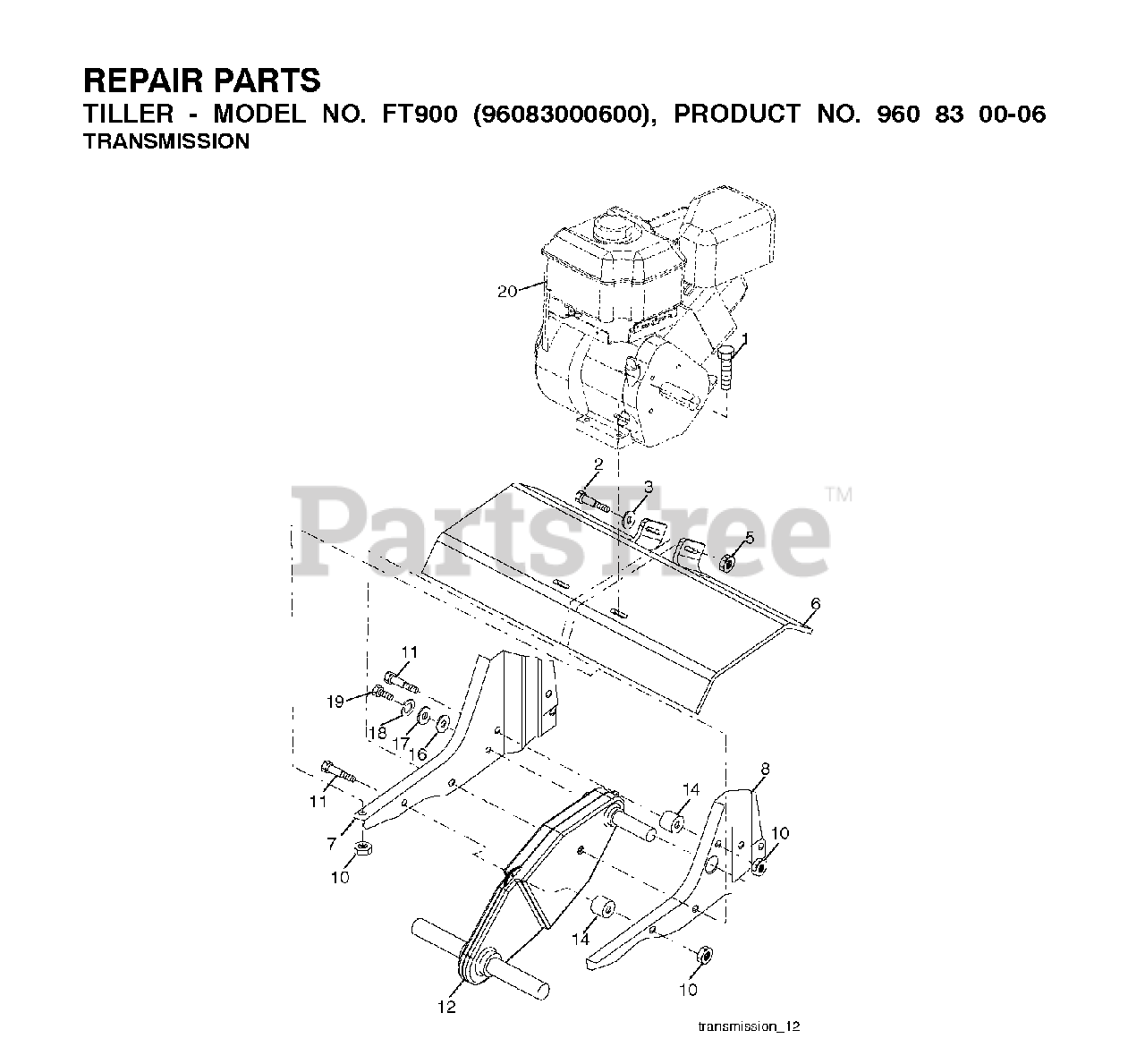

FT 900 (960830006-01) - Husqvarna Front-Tine Tiller (2010-12) TRANSMISSION Parts Diagram

Front-Tine Tiller

TRANSMISSION Parts Diagram

  • Title
1

Husqvarna 874760524

BOLT
(Superseded to 874780524)

$

$

Not available

$

$

Not available

3

Husqvarna 819131311

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 532440704

SHIELD.PNT.TINE.24".ORANGE

$51.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532188195

RP.BRACKET.ENGINE.RH.TILLER.BL
(Superseded to 532446006)

Note: RH

$

$

Not available

8

Husqvarna 532165834

BRACKET.ENGINE.TILLER.LH.BLACK
(Superseded to 584325101)

Note: LH

$31.99

$

Usually ships in 3-10 days

0

10

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532187912

BOLT, HEX HEAD 5/16-18 X 2.5

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532151222

TRANSMISSION.ASM.W/1".D-SHAFT

$

$

Not available

$

$

Not available

16

Husqvarna 819091412

REPL BY 819 09 14-16
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

$6.99

$

In Stock, only 1 left!

0

18

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

$

$

Not available

20

Husqvarna TBD

Note: ENGINE BRIGGS STRATTON MODEL 12T402-1385-F8

$

$

Not available
