FT 900 (960830006-00) - Husqvarna Front-Tine Tiller (2009-11) Wheel And Depth Stake Assembly Parts Diagram

Front-Tine Tiller

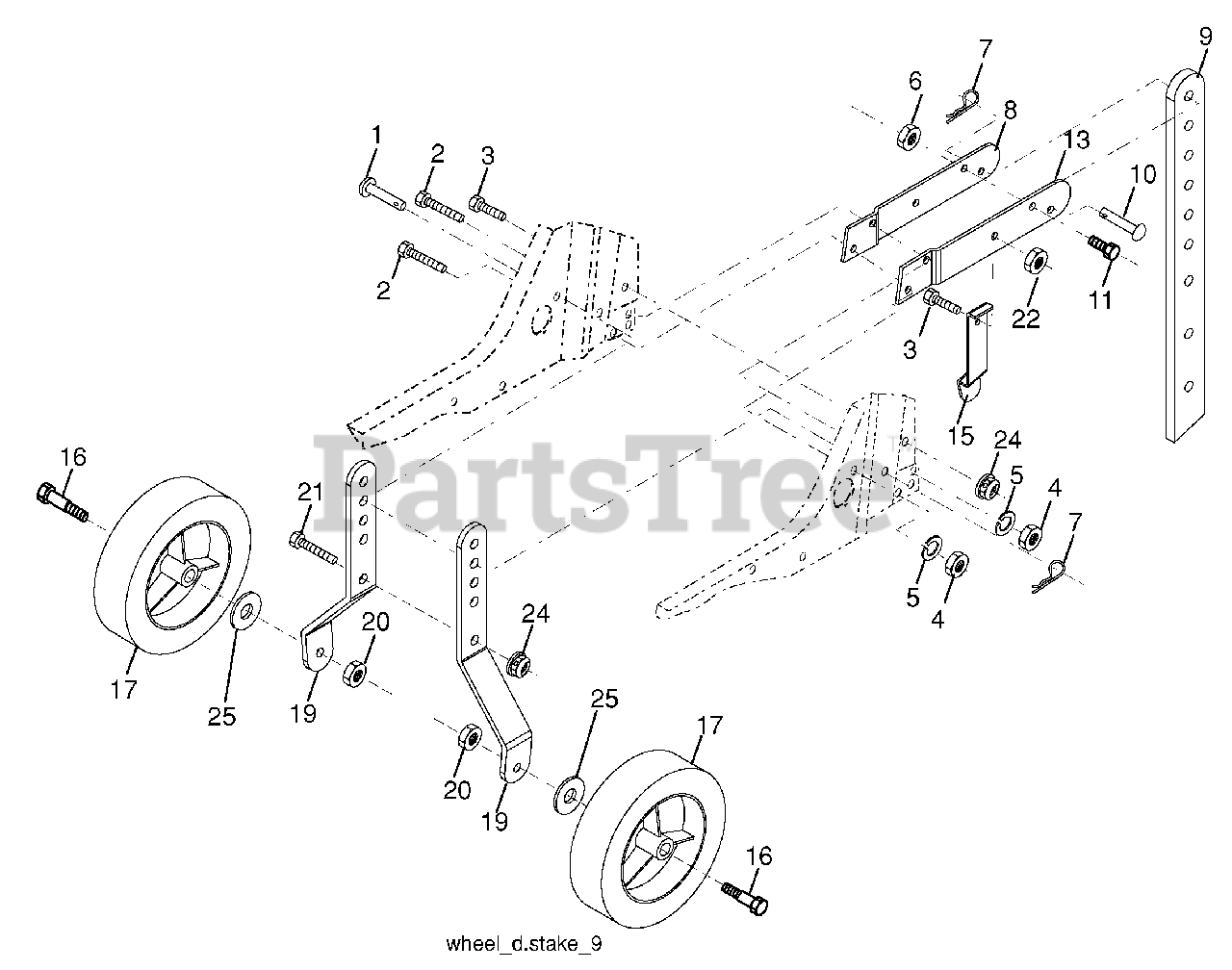

Wheel And Depth Stake Assembly Parts Diagram

  • Title
1

Husqvarna 532009194

Pin, Clevis
(Superseded to 532443676)

$13.99

$

In Stock, Qty 13

0

2

Husqvarna 874760520

Bolt, Hex Head 5/16-18 x 1-1/4
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 874760512

Bolt, Hex Head 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 873220500

Nut, Hex 5/16-18

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 810040500

Washer, Lock 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

6

Husqvarna 873800600

Locknut, w/washer 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124961

Clip, Hairpin
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

8

Husqvarna 532001952

Support, Depth Stake, R.H.

$

$

Not available

9

Husqvarna 532122233

Stake, Depth
(Superseded to 532446066)

$53.99

$

In Stock, only 1 left!

0

10

Husqvarna 532000326

Pin, Clevis
(Superseded to 532004929)

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 874780628

Bolt, Hex 3/8-16 x 1-3/4
(Superseded to 582740701)

$6.49

$

In Stock, only 2 left!

0

13

Husqvarna 532001951

Support, Depth Stake, L.H.
(Superseded to 532446060)

$9.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532005388

Spring, Stake
(Superseded to 532446063)

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532121117

Bolt, Shoulder

$8.99

$

In Stock, Qty 5

0

17

Husqvarna 532427025

Wheel
(Superseded to 532427026)

$

$

Not available

19

Husqvarna 532009190

Bracket, Wheel
(Superseded to 532446011)

$

$

Not available

20

Husqvarna 873680600

Locknut, Crown 3/8-16

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 874760516

Bolt, Hex Head 5/16-18 x 1
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 873800500

Locknut, w/insert 5/16-18

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873970500

Locknut, Flange 5/16-18 unc
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 819171416

Washer 17/32 x 7/8 x 16 Ga.

$4.99

$

In Stock, Qty 8

0
