FT 900 (960830006-00) - Husqvarna Front-Tine Tiller (2009-11) Transmission Parts Diagram

Front-Tine Tiller

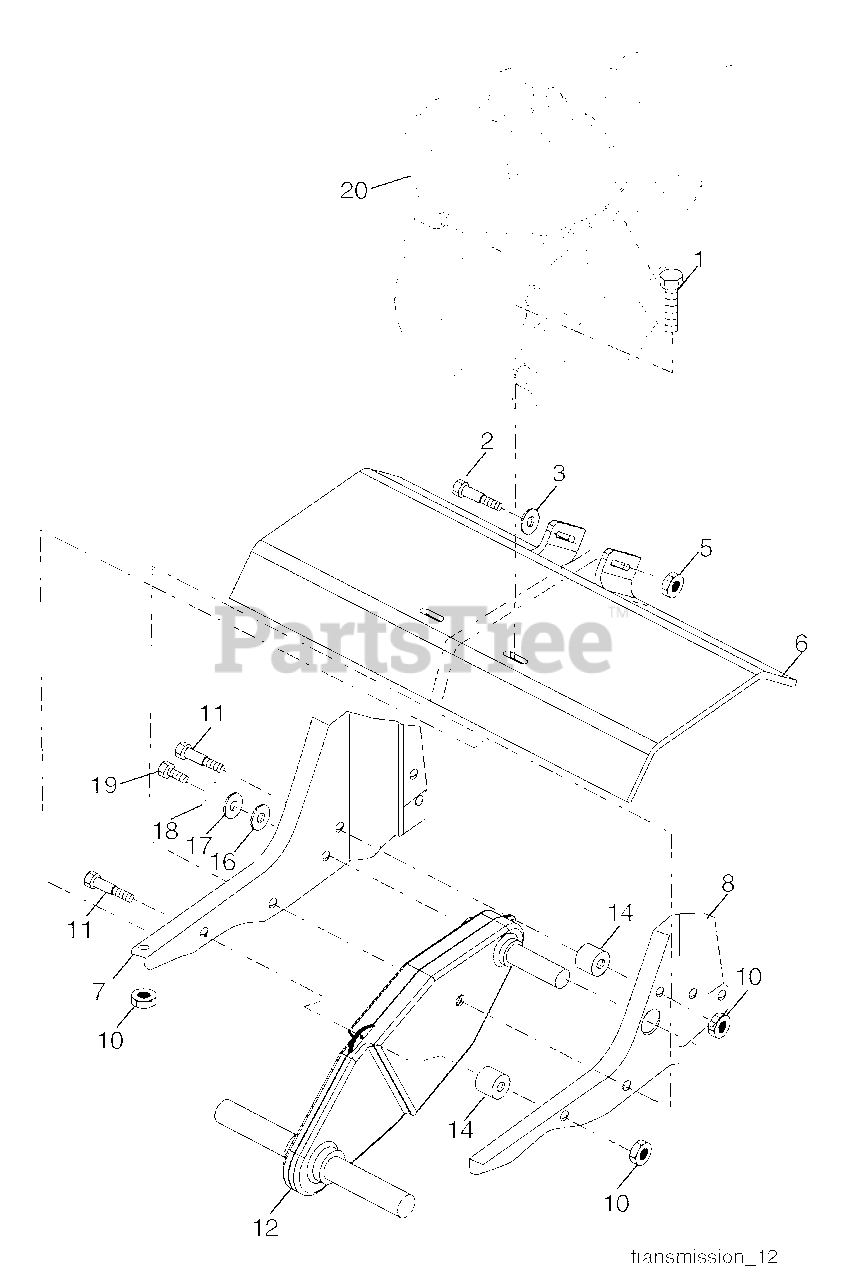

Transmission Parts Diagram

  • Title

1

Husqvarna 874760524

Bolt, Hex 5/16-18 x 1-1/2 Gr. 2
(Superseded to 874780524)

$

$

Not available

2

Husqvarna 874780652

Bolt, Hex 3/8-16 x 3-1/4

$

$

Not available

3

Husqvarna 819131311

Washer 13/32 x 13/16 x 11
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 873900600

Locknut 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 532432711

Shield, Tine
(Superseded to 532440704)

$51.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532188195

Bracket, Engine, R.H.
(Superseded to 532446006)

$

$

Not available

8

Husqvarna 532165834

Bracket, Engine, L.H.
(Superseded to 584325101)

$31.99

$

Usually ships in 3-10 days

0

10

Husqvarna 873970500

Nut, Hex 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532187912

Bolt, Hex Head 5/16-18 x 2.5

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532151222

Transmission

$

$

Not available

14

Husqvarna 532009173

Spacer, Split

$

$

Not available

16

Husqvarna 819091412

Washer 9/32 x 7/8 x 12 Ga.
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 819092016

Washer 9/32 x 1-1/4 x 16 Ga.

$6.99

$

In Stock, only 1 left!

0

18

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

19

Husqvarna 874610412

Bolt, Hex 1/4-28 x 3/4 Gr. 5

$

$

Not available

20

Engine Briggs Model 12T102-1275-F8

$

$

Not available
