FT 900 (960830006-00) - Husqvarna Front-Tine Tiller (2009-11) Handle Assembly Parts Diagram

Front-Tine Tiller

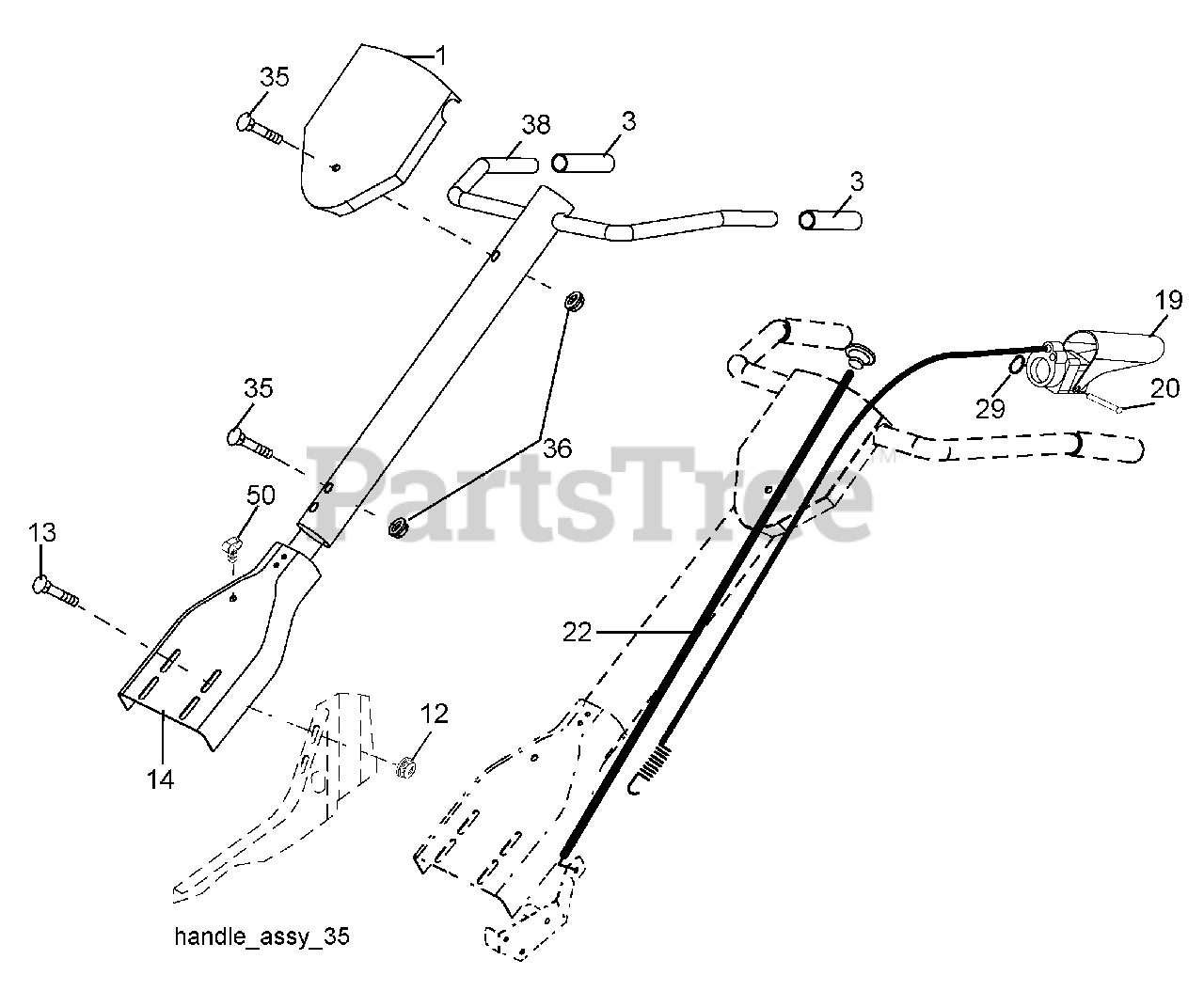

Handle Assembly Parts Diagram

  • Title
1

Husqvarna 532432709

Panel, Control

$14.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532165787

Grip, Handle

$6.99

$

In Stock, only 2 left!

0

12

Husqvarna 898000129

Nut, Flange
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 872010506

Bolt, Carriage 5/16-18 x 3/4

$3.49

$

In Stock, only 3 left!

0

14

Husqvarna 532181476

Assembly, Panel and Tube
(Superseded to 532446412)

$42.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532188532

Lever, Control, Tine

$

$

Not available

20

Husqvarna 532188555

Pin, Pivot

$6.49

$

In Stock, only 2 left!

0

22

Husqvarna 532188171

Cable Asm Reverse

$36.99

$

Usually ships in 3-10 days

0

29

Husqvarna 812000059

Retainer, Ring
(Superseded to 582730101)

$6.49

$

In Stock, only 2 left!

0

35

Husqvarna 872010520

Bolt 5/16-18 x 2-1/2

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 873970500

Locknut, Flange 5/16-18 unc
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532417465

Assembly, Handle Column
(Superseded to 532431332)

$

$

Not available

50

Husqvarna 532181580

Clip Routine Dual

$6.49

$

Usually ships in 3-10 days

0
