FT 900 (960830005-00) - Husqvarna Front-Tine Tiller (2009-11) Belt Guard And Pulley Assembly Parts Diagram

Front-Tine Tiller

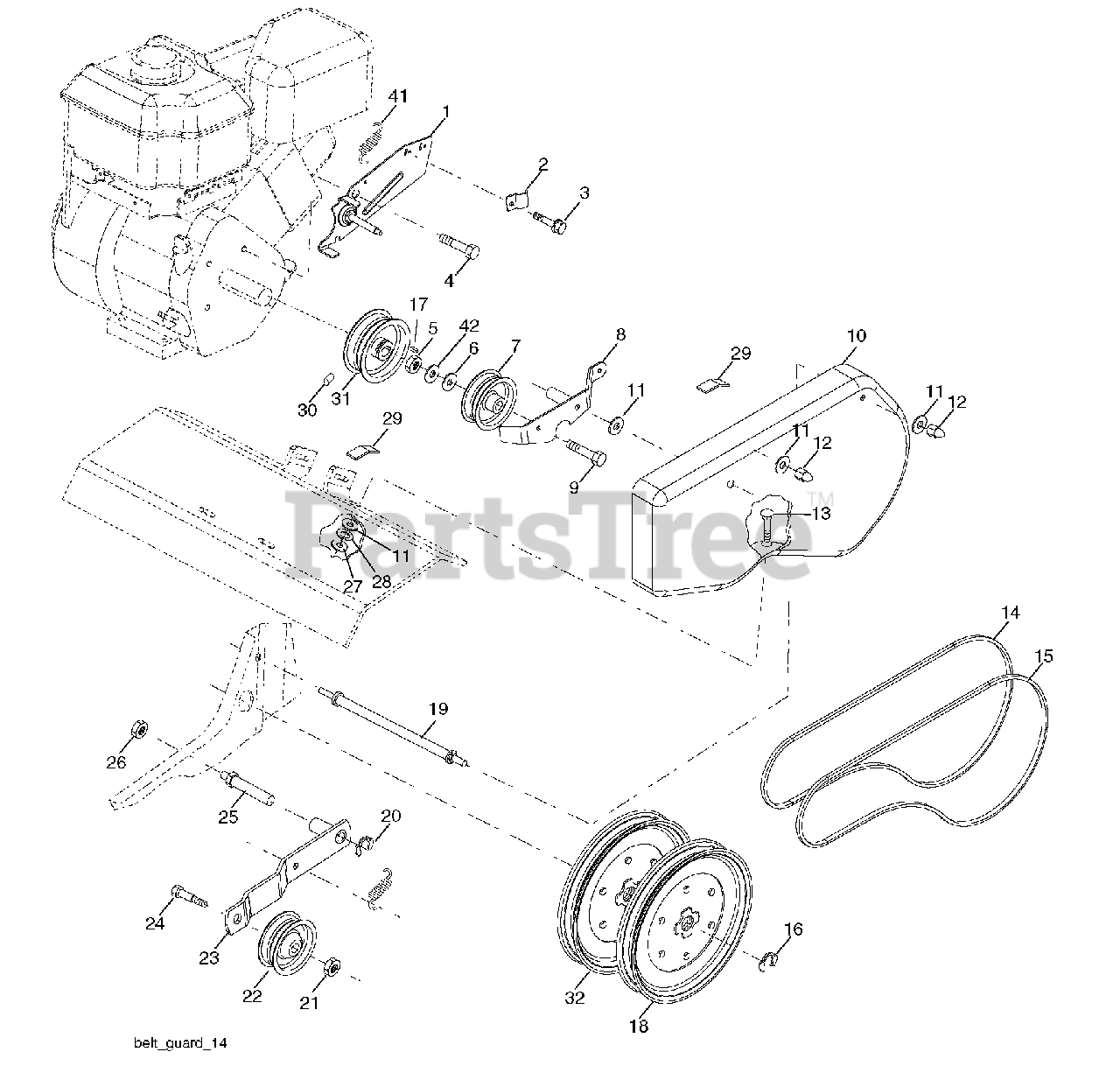

Belt Guard And Pulley Assembly Parts Diagram

  • Title

1

Husqvarna 532180377

Assembly, Bracket, Belt Guard
(Superseded to 532446043)

$

$

Not available

2

Husqvarna 532009484

Clip, Cable

$6.49

$

In Stock, only 4 left!

0

3

Husqvarna 532086777

Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

4

Husqvarna 874610812

Bolt, Hex Head 1/2-20 x 3/4

$

$

Not available

5

Husqvarna 873680600

Nut, Hex 3/8-16

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532125004

Pulley, Idler, Reverse
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 532180323

Assembly, Arm, Reverse Idler

$17.99

$

Usually ships in 3-10 days

0

9

Husqvarna 874760628

Bolt, Hex Head 3/8-16 x 1-3/4
(Superseded to 874780628)

$6.49

$

In Stock, only 2 left!

0

10

Husqvarna 532432710

Guard, Belt
(Superseded to 532440709)

$26.99

$

Usually ships in 3-10 days

0

11

Husqvarna 819091016

Washer 9/32 x 5/8 x 16 Ga.

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532104213

Nut, Cap 1/4- 20
(Superseded to 583644101)

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 872140406

Bolt, Carriage 1/4-20 x 3/4
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532133035

V-Belt (Forward Motion)

$42.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532002614

V-Belt (Reverse)
(Superseded to 599385301)

$17.99

$

In Stock, Qty 5

0

16

Husqvarna 812000028

Ring, Retainer

$7.49

$

In Stock, Qty 8

0

17

Husqvarna 532002649

Key, Square

$6.99

$

In Stock, only 1 left!

0

18

Husqvarna 532151236

Sheave, Transmission "Flat"

$34.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532188502

Bolt, Belt Guard

$10.99

$

Usually ships in 3-10 days

0

20

Husqvarna 812000036

Ring, Klip

$6.49

$

In Stock, only 1 left!

0

21

Husqvarna 873350600

Nut, Hex, Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

22

Husqvarna 532161806

Pulley, Idler

$31.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532175377

Arm, Idler

$24.99

$

Usually ships in 3-10 days

0

24

Husqvarna 874760620

Bolt 3/8-16 x 1-1/4

$7.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532106968

Shaft, Idler Arm

$15.99

$

Usually ships in 3-10 days

0

26

Husqvarna 873350500

Nut, Hex, Jam 5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 873220400

Nut, Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

28

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

29

Husqvarna 532109227

Pad, Idler

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 823200404

Screw, Set , Socket, Headless C.P. 1/4-20 x 1/4

$3.49

$

In Stock, only 1 left!

0

31

Husqvarna 532101189

Sheave, Engine

$66.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532151223

Sheave, Transmisison

$39.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532180307

Spring Extension

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532138909

Spacer

$4.99

$

Usually ships in 3-10 days

0
