FT-55 (21A-394-100) - Cub Cadet Front-Tine Tiller Engine (2000) Engine Assembly (Model FT55) Parts Diagram

Front-Tine Tiller Engine

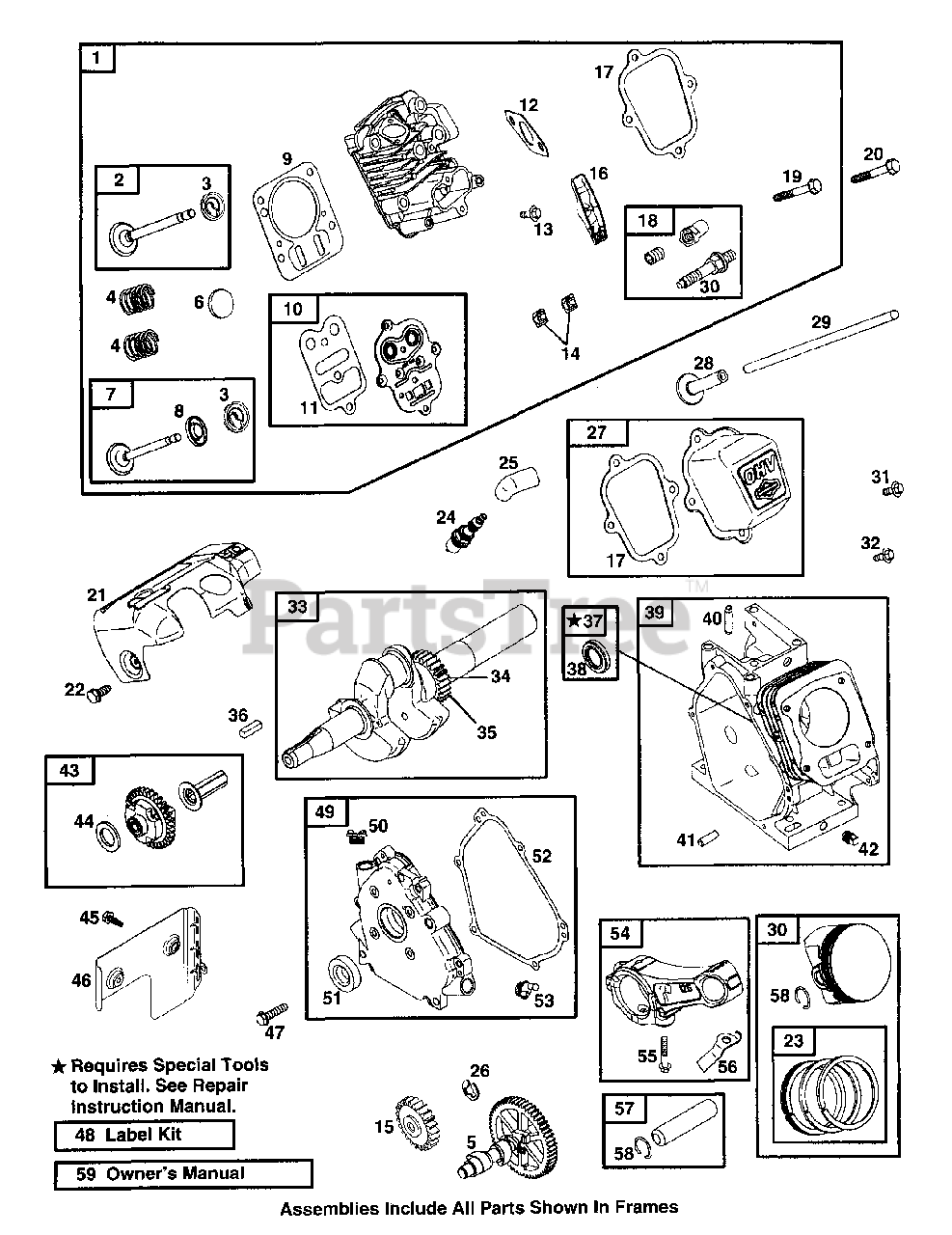

Engine Assembly (Model FT55) Parts Diagram

  • Title

1

Cub Cadet BS-693643

Cylinder Head
(Superseded to BS-797439)

$

$

Not available

2

Cub Cadet BS-499642

Exhaust Valve

$35.99

$

In Stock, only 3 left!

0

3

Cub Cadet BS-692194

Valve Retainer

$5.99

$

In Stock, Qty 11

0

4

Cub Cadet BS-691304

Valve Spring (Intake)

$5.99

$

In Stock, only 2 left!

0

5

Cub Cadet BS-693404

Camshaft

$73.99

$

In Stock, Qty 5

0

6

Cub Cadet BS-691300

Valve Cap

$9.49

$

In Stock, Qty 9

0

7

Cub Cadet BS-499641

Intake Valve
(Superseded to BS-795443)

$27.99

$

In Stock, only 1 left!

0

8

Cub Cadet BS-692044

Valve Seal

$

$

Not available

9

Cub Cadet BS-695166

Cylinder Head Gasket
(Superseded to BS-697230)

$9.99

$

In Stock, Qty 6

0

10

Cub Cadet BS-694168

Cylinder Head Plate

$

$

Not available

11

Cub Cadet BS-691892

Cylinder Head Plate Gasket
(Superseded to BS-694088)

$8.49

$

In Stock, Qty 16

0

12

Cub Cadet BS-692555

Intake Gasket

Note: (2 Required)

$3.99

$

In Stock, Qty 11

0

13

Cub Cadet BS-691108

Screw (Cylinder Head Plate)

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet BS-691343

Guide-Push Rod

$9.99

$

In Stock, only 2 left!

0

15

Cub Cadet BS-692566

Gear-Idler

$17.99

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-691230

Rocker Arm

$9.49

$

Usually ships in 2-12 days

0

17

Cub Cadet BS-499924

Rocker Cover Gasket

$

$

Not available

18

Cub Cadet BS-694543

Rocker Arm Ball

$

$

Not available

19

Cub Cadet BS-692559

Screw (Rocker Arm)

$3.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-691137

Screw (Cylinder Head)

$

$

Not available

21

Cub Cadet BS-693610

Shield-Cylinder

$

$

Not available

22

Cub Cadet BS-690345

Screw (Cylinder Shield)

$4.99

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-499631

Ring Set (Standard)

$53.99

$

In Stock, only 4 left!

0

Cub Cadet BS-692785

Ring Set (.010" O/S)

$

$

Not available

Cub Cadet BS-692786

Ring Set (.020" O/S)

$55.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-692787

Ring Set (.030" O/S)

$26.99

$

Usually ships in 2-12 days

0

24

Cub Cadet BS-691043

Sparkplug

$6.49

$

In Stock, Qty 20+

0

25

Cub Cadet BS-805529

Boot-Spark Plug
(Superseded to BS-692076)

$5.49

$

In Stock, Qty 20+

0

26

Cub Cadet BS-692564

Ring-Retaining

$4.49

$

In Stock, only 2 left!

0

27

Cub Cadet BS-499924

Rocker Cover

$

$

Not available

28

Cub Cadet BS-690977

Valve Tappet

$7.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-693517

Push Rod

$9.99

$

Usually ships in 2-12 days

0

30

Cub Cadet BS-690021

Piston Assembly (Standard)

$91.99

$

In Stock, Qty 5

0

Cub Cadet BS-694167

Piston Assembly (.010 O/S)

$59.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-694168

Piston Assembly (.020 O/S)

$

$

Not available

Cub Cadet BS-694169

Piston Assembly (.030 O/S)

$59.99

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-692557

Screw (Rocker Cover 3/8" Long)

$3.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-692198

Screw (Rocker Cover 7/16" Long)

$5.99

$

In Stock, Qty 12

0

33

Cub Cadet BS-694113

Crankshaft

$161.99

$

Usually ships in 2-12 days

0

34

Cub Cadet BS-690979

Timing Key

$3.49

$

In Stock, Qty 8

0

35

Cub Cadet BS-692565

Gear-Timing

$

$

Not available

36

Cub Cadet BS-222698

Flywheel Key
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

37

Cub Cadet BS-399269

Bushing/Seal Kit

$21.99

$

In Stock, only 1 left!

0

38

Cub Cadet BS-299819

Oil Seal
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 17

0

39

Cub Cadet BS-693811

Cylinder Assembly

$

$

Not available

40

Cub Cadet BS-692346

Bushing-Governor Crank
(Superseded to BS-231078)

$

$

Not available

41

Cub Cadet BS-690959

Locating Pin

$6.99

$

In Stock, only 1 left!

0

42

Cub Cadet BS-691686

Oil Drain Plug

$5.49

$

In Stock, only 2 left!

0

43

Cub Cadet BS-693578

Governor Gear

$26.99

$

In Stock, only 2 left!

0

44

Cub Cadet BS-691724

Washer (Governor Gear)

$5.49

$

In Stock, only 2 left!

0

45

Cub Cadet BS-692577

Screw (Panel)

$3.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-693709

Panel

Note: (Before Date Code 99070500)

$

$

Not available

47

Cub Cadet BS-692551

Screw (Crankcase Cover)

$3.99

$

In Stock, only 2 left!

0

48

Cub Cadet BS-690035

Label Kit

$34.99

$

Usually ships in 2-12 days

0

49

Cub Cadet BS-694466

Crankcase Cover

$

$

Not available

50

Cub Cadet BS-693463

Plug

$3.99

$

Usually ships in 2-12 days

0

51

Cub Cadet BS-692550

Oil Seal

$8.99

$

Usually ships in 2-12 days

0

52

Cub Cadet BS-692549

Crankcase Gasket
(Superseded to BS-699485)

$8.99

$

In Stock, Qty 20+

0

53

Cub Cadet BS-281658

Oil Fill Cap
(Superseded to BS-281658S)

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet BS-499424

Connecting Rod
(Superseded to BS-590406)

$87.99

$

In Stock, only 1 left!

0

55

Cub Cadet BS-94699

Screw (Connecting Rod)

$

$

Not available

56

Cub Cadet BS-692562

Connecting Rod Dipper

$6.49

$

In Stock, only 1 left!

0

57

Cub Cadet BS-499423

Piston Pin

$9.49

$

Usually ships in 2-12 days

0

58

Cub Cadet BS-263190

Piston Pin Lock
(Superseded to BS-691866)

$4.49

$

In Stock, Qty 8

0

59

Cub Cadet BS-274263

Owner's Manual

$

$

Currently unavailable
