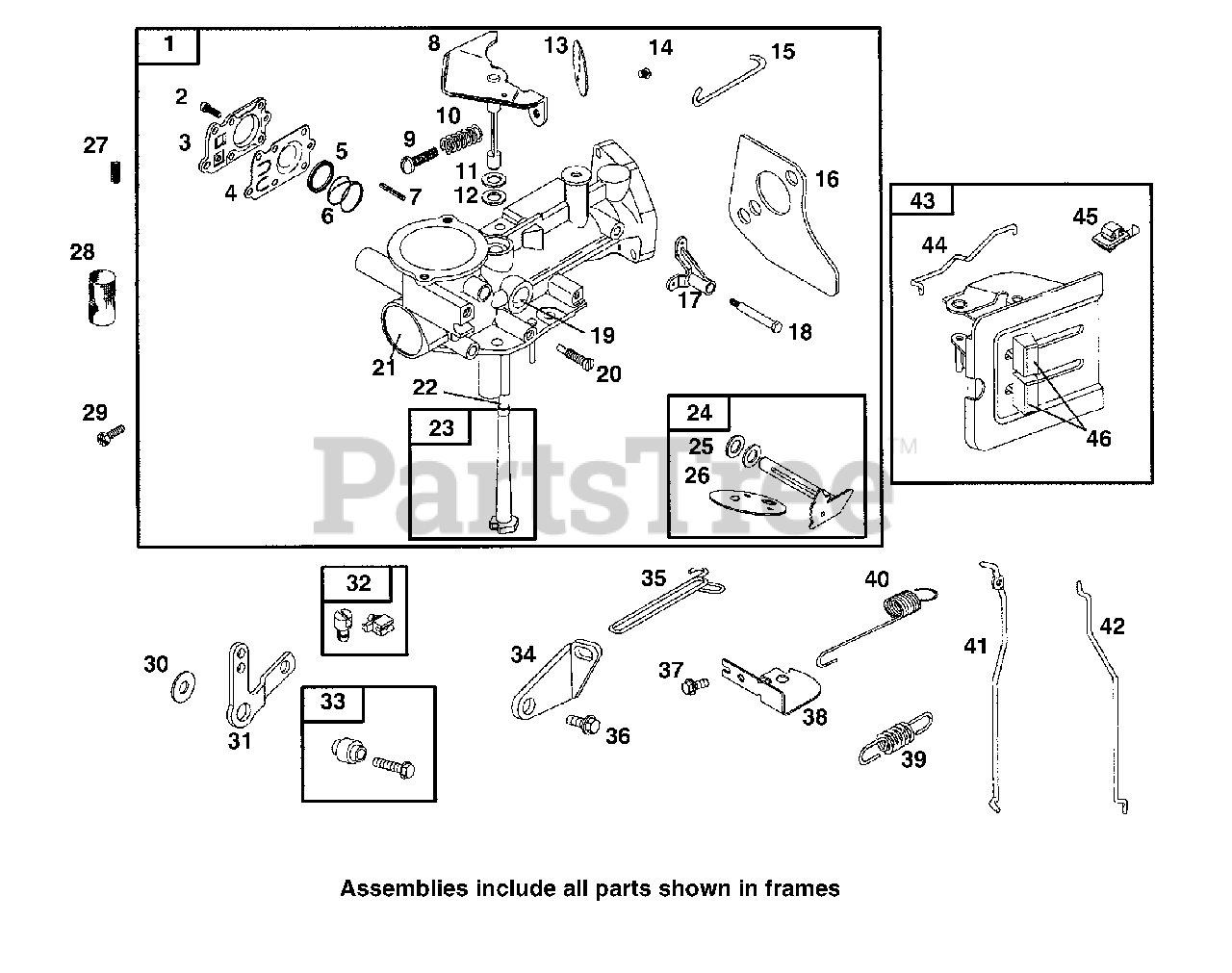

FT-50 (21A-340-100) - Cub Cadet Front-Tine Tiller Engine (1998) Carburetor & Linkage Parts Diagram

Front-Tine Tiller Engine

Carburetor & Linkage Parts Diagram

  • Title

1

Cub Cadet BS-498298

Carburetor

$149.99

$

In Stock, Qty 20+

0

2

Cub Cadet BS-93141

Slotted Screw

$

$

Not available

3

Cub Cadet BS-213963

Diaphragm Cover
(Superseded to BS-691713)

$10.99

$

In Stock, only 2 left!

0

4

Cub Cadet BS-272538

Pump Diaphragm
(Superseded to BS-272538S)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet BS-221377

Spring Cap
(Superseded to BS-690766)

$4.99

$

In Stock, Qty 7

0

6

Cub Cadet BS-262328

Pump Diaphragm Spring
(Superseded to BS-691823)

$4.99

$

In Stock, only 2 left!

0

7

Cub Cadet BS-93265

Locating Pin

$

$

Currently unavailable

8

Cub Cadet BS-497600

Throttle Shaft

$

$

Not available

9

Cub Cadet BS-93527

Slotted Screw

$

$

Not available

10

Cub Cadet BS-260575

Friction Spring

$

$

Currently unavailable

11

Cub Cadet BS-271853

Throttle Shaft Seal
(Superseded to BS-692279)

$3.99

$

In Stock, only 3 left!

0

12

Cub Cadet BS-398970

Throttle Shaft Seal
(Superseded to BS-692279)

$3.99

$

In Stock, only 3 left!

0

13

Cub Cadet BS-223793

Throttle Valve

$

$

Currently unavailable

14

Cub Cadet BS-93499

Choke/Throttle Screw
(Superseded to BS-691437)

$3.99

$

In Stock, only 3 left!

0

15

Cub Cadet BS-262270

Throttle Link
(Superseded to BS-691812)

$8.99

$

In Stock, only 1 left!

0

16

Cub Cadet BS-273113

Intake Gasket
(Superseded to BS-273113S)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet BS-280720

Bell Crank

$

$

Not available

18

Cub Cadet BS-231520

Shoulder Screw

$

$

Not available

19

Cub Cadet BS-220352

Welch Plug
(Superseded to BS-691718)

$13.99

$

In Stock, only 4 left!

0

20

Cub Cadet BS-231955

Pilot Jet

$

$

Not available

21

Cub Cadet BS-223789

Welch Plug

$

$

Not available

22

Cub Cadet BS-231068

Fuel Pipe

$

$

Not available

23

Cub Cadet BS-391813

Pick-Up Tube

$

$

Not available

24

Cub Cadet BS-497230

Choke Shaft Kit

$15.99

$

In Stock, only 4 left!

0

25

Cub Cadet BS-270382

Choke Shaft Washer
(Superseded to BS-691869)

$3.99

$

In Stock, only 3 left!

0

26

Cub Cadet BS-221839

Spacer Washer

$

$

Not available

27

Cub Cadet BS-262715

Detent Spring
(Superseded to BS-590931)

$5.49

$

In Stock, Qty 11

0

28

Cub Cadet BS-225058

Carburetor Screen

$

$

Not available

29

Cub Cadet BS-94913

Torx Hex Screw
(Superseded to BS-690953)

$5.99

$

In Stock, only 1 left!

0

30

Cub Cadet BS-220982

Flat Washer

$

$

Not available

31

Cub Cadet BS-223813

Bell Crank

$

$

Not available

32

Cub Cadet BS-490507

Link Retainer

$

$

Not available

33

Cub Cadet BS-490589

Bell Crank Collar

$

$

Not available

34

Cub Cadet BS-225057

Link Bracket

$

$

Not available

35

Cub Cadet BS-262570

Bell Crank Link

$

$

Not available

36

Cub Cadet BS-94897

Hex Screw

$

$

Not available

37

Cub Cadet BS-94669

Hex Screw

$

$

Not available

38

Cub Cadet BS-225029

Spring Anchor
(Superseded to BS-691211)

$6.99

$

In Stock, only 2 left!

0

39

Cub Cadet BS-262284

Governor Spring

$

$

Not available

40

Cub Cadet BS-263031

Governor Idler Spring

$

$

Not available

41

Cub Cadet BS-262279

Governor Control Rod
(Superseded to BS-691813)

$9.49

$

Usually ships in 2-12 days

0

42

Cub Cadet BS-262280

Mechanical Governor Link

$

$

Not available

43

Cub Cadet BS-490649

Control Bracket

$

$

Not available

44

Cub Cadet BS-262359

Choke Link
(Superseded to BS-691824)

$9.99

$

In Stock, only 2 left!

0

45

Cub Cadet BS-396847

Stop Switch
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

46

Cub Cadet BS-280715

Control Knob
(Superseded to BS-692295)

$9.49

$

In Stock, only 4 left!

0
