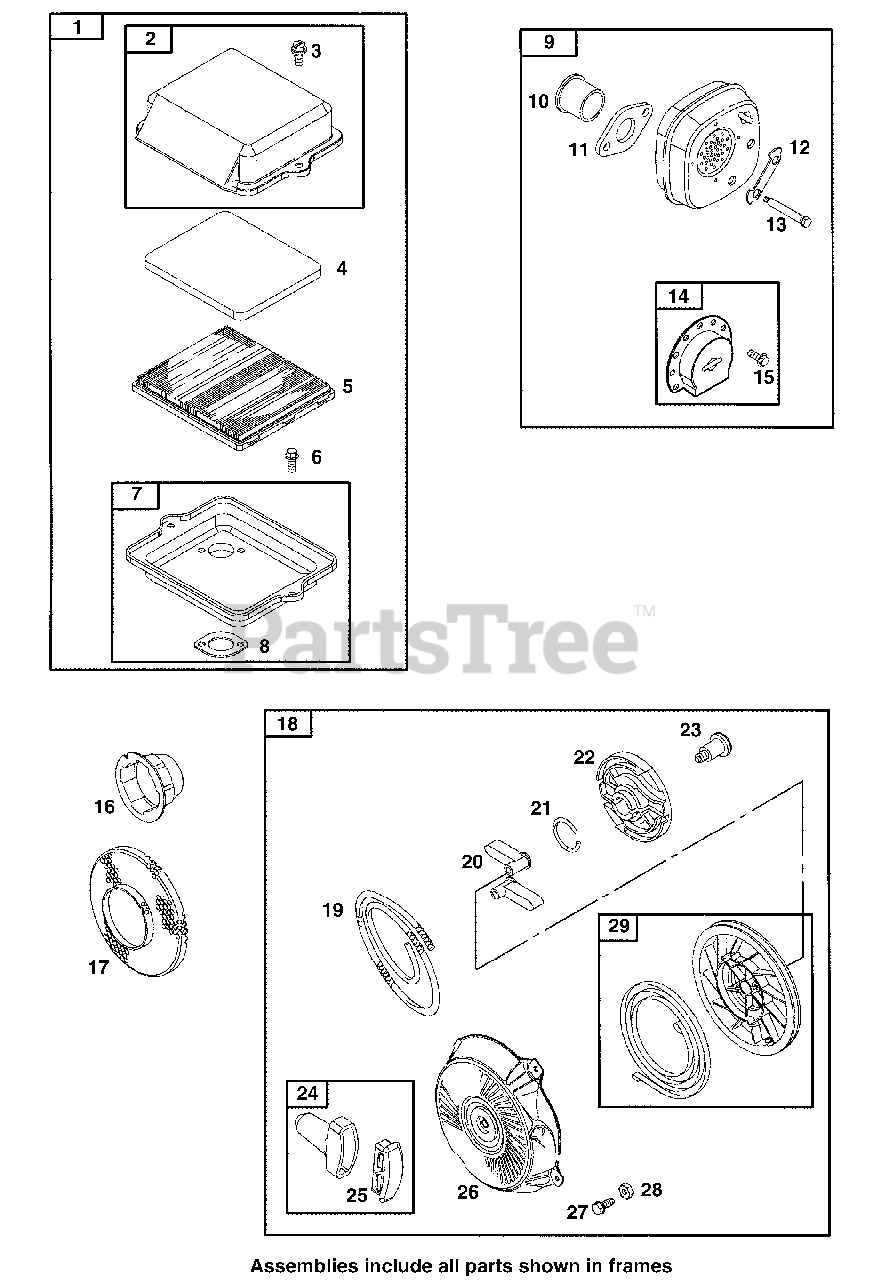

FT-50 (21A-340-100) - Cub Cadet Front-Tine Tiller Engine (1998) Air Cleaner, Muffler & Starter Parts Diagram

Front-Tine Tiller Engine

Air Cleaner, Muffler & Starter Parts Diagram

  • Title

1

Cub Cadet BS-494279

Air Cleaner

$

$

Not available

2

Cub Cadet BS-495872

Air Cleaner Cover
(Superseded to BS-791082)

$20.99

$

In Stock, Qty 13

0

3

Cub Cadet BS-490073

Slotted Screw
(Superseded to BS-694515)

$5.99

$

In Stock, Qty 8

0

4

Cub Cadet BS-491435

Pre-Cleaner Filter
(Superseded to BS-491435S)

$4.99

$

In Stock, Qty 8

0

5

Cub Cadet BS-491588

A/C Cartridge Filter
(Superseded to BS-491588S)

$6.49

$

In Stock, Qty 20+

0

6

Cub Cadet BS-94902

Hex Screw
(Superseded to BS-690859)

$3.99

$

In Stock, Qty 8

0

7

Cub Cadet BS-492797

A/C Metal Base
(Superseded to BS-494279)

$

$

Not available

8

Cub Cadet BS-271935

Air Cleaner Gasket
(Superseded to BS-271935S)

$6.49

$

In Stock, Qty 12

0

9

Cub Cadet BS-494585

Exhaust Muffler

$23.99

$

In Stock, only 1 left!

0

10

Cub Cadet BS-222933

Port Liner

$2.49

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-272309

Exhaust Gasket
(Superseded to BS-692237)

$5.49

$

In Stock, only 3 left!

0

12

Cub Cadet BS-222263

Muffler Screw Lock

$

$

Not available

13

Cub Cadet BS-93935

Shoulder Screw
(Superseded to BS-691413)

$5.99

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-393757

Muffler Deflector
(Superseded to BS-796956)

$10.99

$

In Stock, only 1 left!

0

15

Cub Cadet BS-94896

Hex Screw
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 9

0

16

Cub Cadet BS-225121

Flywheel Cup
(Superseded to BS-695161)

$37.99

$

Usually ships in 2-12 days

0

17

Cub Cadet BS-225176

Rotating Screen

$

$

Not available

18

Cub Cadet BS-497830

Rewind Starter

$49.99

$

In Stock, only 3 left!

0

19

Cub Cadet BS-280399

Starter Rope
(Superseded to BS-280399S)

$5.99

$

In Stock, Qty 9

0

20

Cub Cadet BS-281505

Ratchet Pawl
(Superseded to BS-281505S)

$3.49

$

In Stock, Qty 13

0

21

Cub Cadet BS-263073

Friction Spring
(Superseded to BS-691855)

$4.49

$

In Stock, only 3 left!

0

22

Cub Cadet BS-281503

Pawl Friction Plate
(Superseded to BS-692299)

$4.99

$

In Stock, only 2 left!

0

23

Cub Cadet BS-94943

Shoulder Screw
(Superseded to BS-691696)

$11.99

$

In Stock, Qty 6

0

24

Cub Cadet BS-393152

Starter Rope Grip

$4.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-396892

Grip Insert

$5.49

$

In Stock, only 1 left!

0

26

Cub Cadet BS-497442

Rewind Starter Housing

$

$

Not available

27

Cub Cadet BS-94686

Hex Screw

$

$

Not available

28

Cub Cadet BS-94908

Hex Nut
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

29

Cub Cadet BS-498144

Starter Pulley

$19.99

$

In Stock, Qty 20+

0
