FT 5 - Poulan Pro Front-Tine Tiller WHEEL AND DEPTH STAKE ASSEMBLY Parts Diagram

Front-Tine Tiller

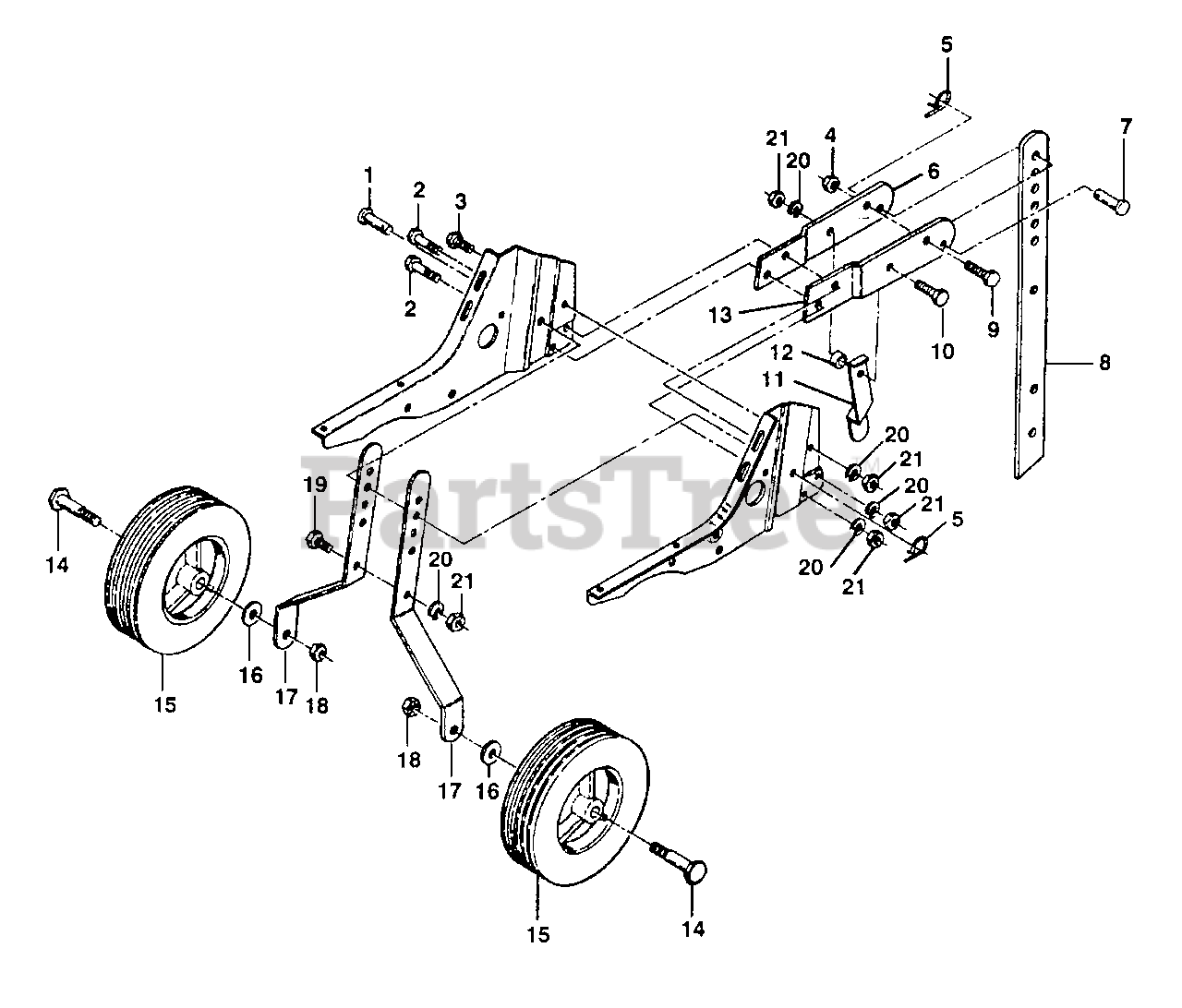

WHEEL AND DEPTH STAKE ASSEMBLY Parts Diagram

  • Title
1

Poulan 532009194

Pin, Clevis (AYP part number)
(Superseded to 532443676)

$13.99

$

In Stock, Qty 13

0

2

Poulan 874760520

Bolt, Hex 5/16-18 x 1-1/4 (AYP part number)
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

3

Poulan 874760512

Bolt, Hex 5/16-18 x 3/4 (AYP part number)
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

4

Poulan 532124701

Locknut 3/8-24 (AYP part number)
(Superseded to 532007810)

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 532124961

Clip, Hairpin (AYP part number)
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

6

Poulan 532124659

Support, Depth Stake, R.H. (AYP part number)
(Superseded to 532001952)

$

$

Not available

7

Poulan 532000326

Pin, Clevis (AYP part number)
(Superseded to 532004929)

$7.49

$

Usually ships in 3-10 days

0

8

Poulan 532122233

Stake, Depth (AYP part number)
(Superseded to 532446066)

$53.99

$

In Stock, only 1 left!

0

9

Poulan 874610624

Bolt, Hex 3/8-24 x 1-1/2 Gr.5 (AYP part number)

$6.49

$

In Stock, only 1 left!

0

10

Poulan 874760524

Bolt, Hex 5/16-18 x 1-1/2 Gr.2 (AYP part number)
(Superseded to 74760524)

$2.49

$

Usually ships in 3-10 days

0

11

Poulan 532124724

Spring, Stake (AYP part number)
(Superseded to 532446063)

$4.99

$

Usually ships in 3-10 days

0

12

Poulan 532120958

Washer (AYP part number)

$

$

Not available

13

Poulan 532001951

Support, Depth Stake, L.H. (AYP part number)
(Superseded to 532149209)

$9.49

$

Usually ships in 3-10 days

0

14

Poulan 532121117

Bolt, Shoulder (AYP part number)

$8.99

$

In Stock, Qty 5

0

15

Poulan 532009188

Wheel (AYP part number)
(Superseded to 532146248)

$

$

Not available

16

Poulan 819131311

Washer 13/32 x 13/16 x 11 Ga. (AYP part number)
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

17

Poulan 532124707

Bracket, Wheel (AYP part number)
(Superseded to 532009190)

$

$

Not available

18

Poulan 873680600

Locknut, Crown 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

19

Poulan 874760516

Bolt, Hex 5/16-18 x 1 (AYP part number)
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

20

Poulan 810040500

Washer, Lock 5/16 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

21

Poulan 873220500

Nut, Hex 5/16-18 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0
