FT 5 - Poulan Pro Front-Tine Tiller TRANSMISSION Parts Diagram

Front-Tine Tiller

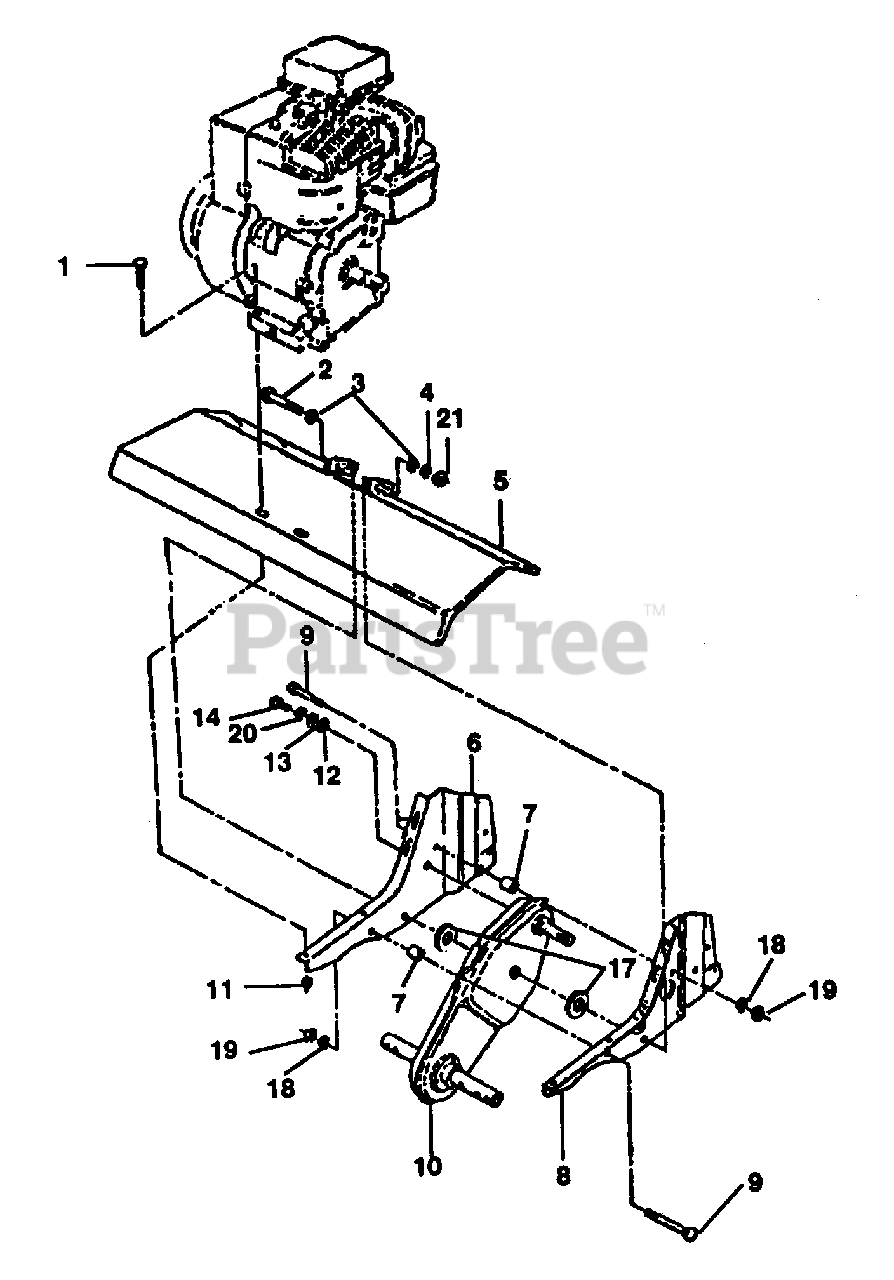

TRANSMISSION Parts Diagram

  • Title

1

Poulan 874760524

Bolt, Hex 5/16-18 x 1-1/2 Gr. 2 (AYP part number)
(Superseded to 74760524)

$2.49

$

Usually ships in 3-10 days

0

2

Poulan 874610652

Bolt, Hex 3/8-24 x 3-1/4 Gr.5 (AYP part number)

$

$

Not available

3

Poulan 819131311

Washer 13/32 x 13/16 x 11 (AYP part number)
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

4

Poulan 810040600

Washer, Lock 3/8 (AYP part number)
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

5

Poulan 532124706

Shield, Tine (AYP part number)

$51.99

$

Usually ships in 3-10 days

0

6

Poulan 532001949

Bracket, Engine, R.H. (AYP part number)
(Superseded to 532188195)

$

$

Not available

7

Poulan 532009178

Spacer, Split (AYP part number)
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

8

Poulan 532110519

Bracket, Engine, L.H. (AYP part number)
(Superseded to 110519X)

$18.99

$

Usually ships in 3-10 days

0

9

Poulan 874760544

Bolt, Hex 5/16-18 x 2-3/4 (AYP part number)
(Superseded to 596218601)

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 532126669

Transmission
(Superseded to 582800901)

$205.99

$

Usually ships in 3-10 days

0

11

Poulan 873510500

Nut, Keps 5/16 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

12

Poulan 819091412

Washer 9/32 x 7/8 x 12 Ga. (AYP part number)
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

13

Poulan 819092016

Washer 9/32 x 1-1/4 x 16 Ga. (AYP part number)

$6.99

$

In Stock, only 1 left!

0

14

Poulan 874610412

Bolt, Hex 1/4-28 x 3/4 Gr. 5 (AYP part number)
(Superseded to 582738901)

$4.99

$

In Stock, only 1 left!

0

17

Poulan 819171616

Washer 17/32 x 1 x 16 Ga. (AYP part number)
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

18

Poulan 810040500

Washer, Lock 5/16 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

19

Poulan 873220500

Nut, Hex 5/16-18 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

20

Poulan 810040400

Lockwasher 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

21

Poulan 532124701

Locknut 3/8-24 (AYP part number)
(Superseded to 532007810)

$3.99

$

Usually ships in 3-10 days

0

Poulan 532110593

Decal, Caution (Engine, Top) (AYP part number)

Note: Not Shown.

$

$

Not available

Poulan 532120075

Decal, Warning (Tine Shield) (AYP part number)

Note: Not Shown.

$5.99

$

Usually ships in 3-10 days

0

Poulan 532121543

Decal, Engine, B & S (Engine) (AYP part number)
(Superseded to 532271948)

Note: Not Shown.

$

$

Not available
