FT 35 - Poulan Pro Front-Tine Tiller Tine Assembly Parts Diagram

Front-Tine Tiller

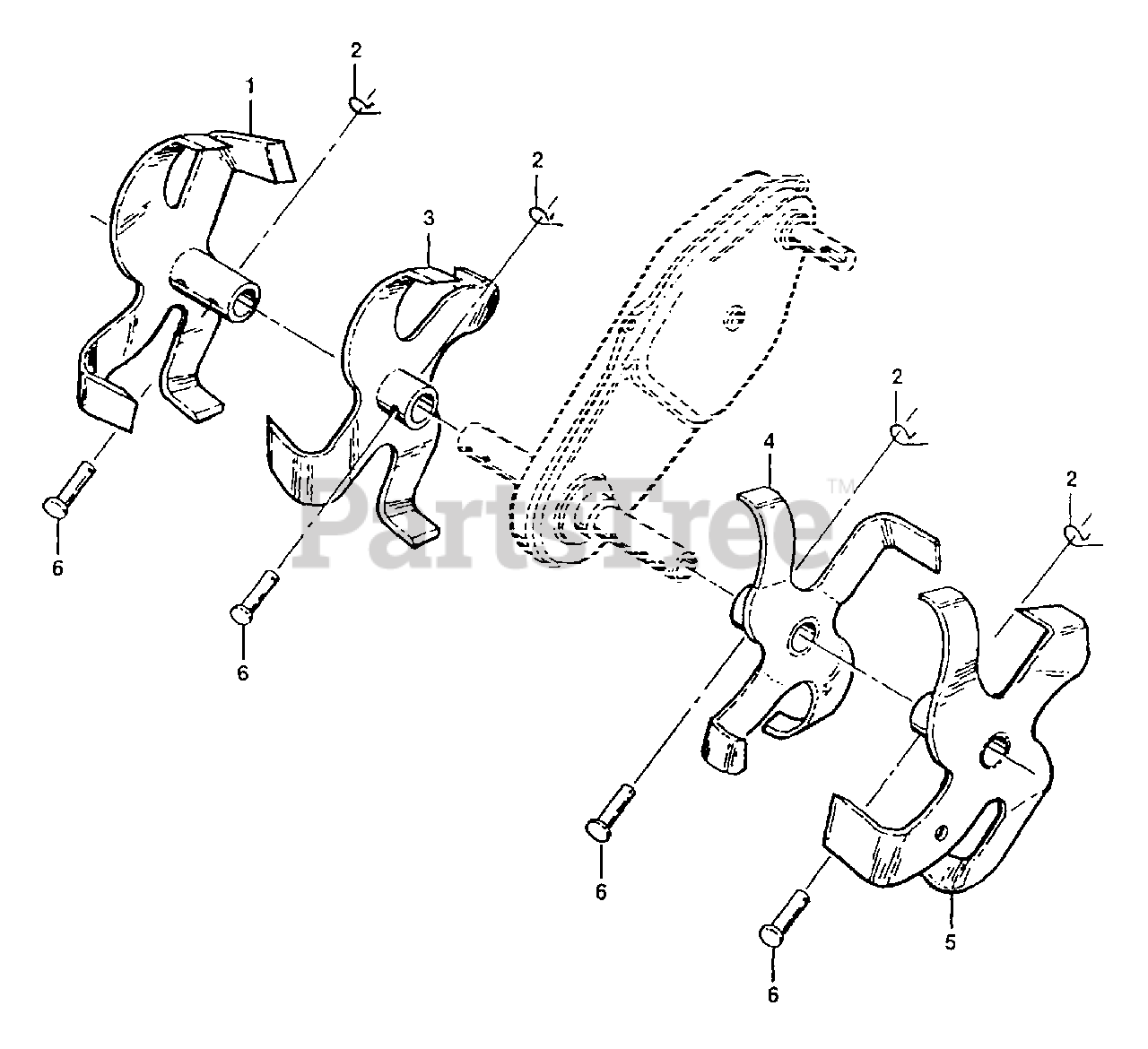

Tine Assembly Parts Diagram

  • Title
1

Poulan 106860X

Tine, Outer, R.H. (AYP part number)
(Superseded to 165774)

$

$

Not available

2

Poulan 4921H

Clip, Hairpin
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

3

Poulan 106858X

Tine, Inner, R.H. (AYP part number)
(Superseded to 165772)

$28.99

$

Usually ships in 3-10 days

0

4

Poulan 106857X

Tine, Inner, L.H. (AYP part number)
(Superseded to 583017401)

$

$

Not available

5

Poulan 106859X

Tine, Outer, L.H. (AYP part number)
(Superseded to 165773)

$

$

Not available

6

Poulan 9194R

Pin, Clevis
(Superseded to 532443676)

$13.99

$

In Stock, Qty 13

0
