FT 35 C - Poulan Pro Front-Tine Tiller Belt Guard And Pulley Assembly Parts Diagram

Front-Tine Tiller

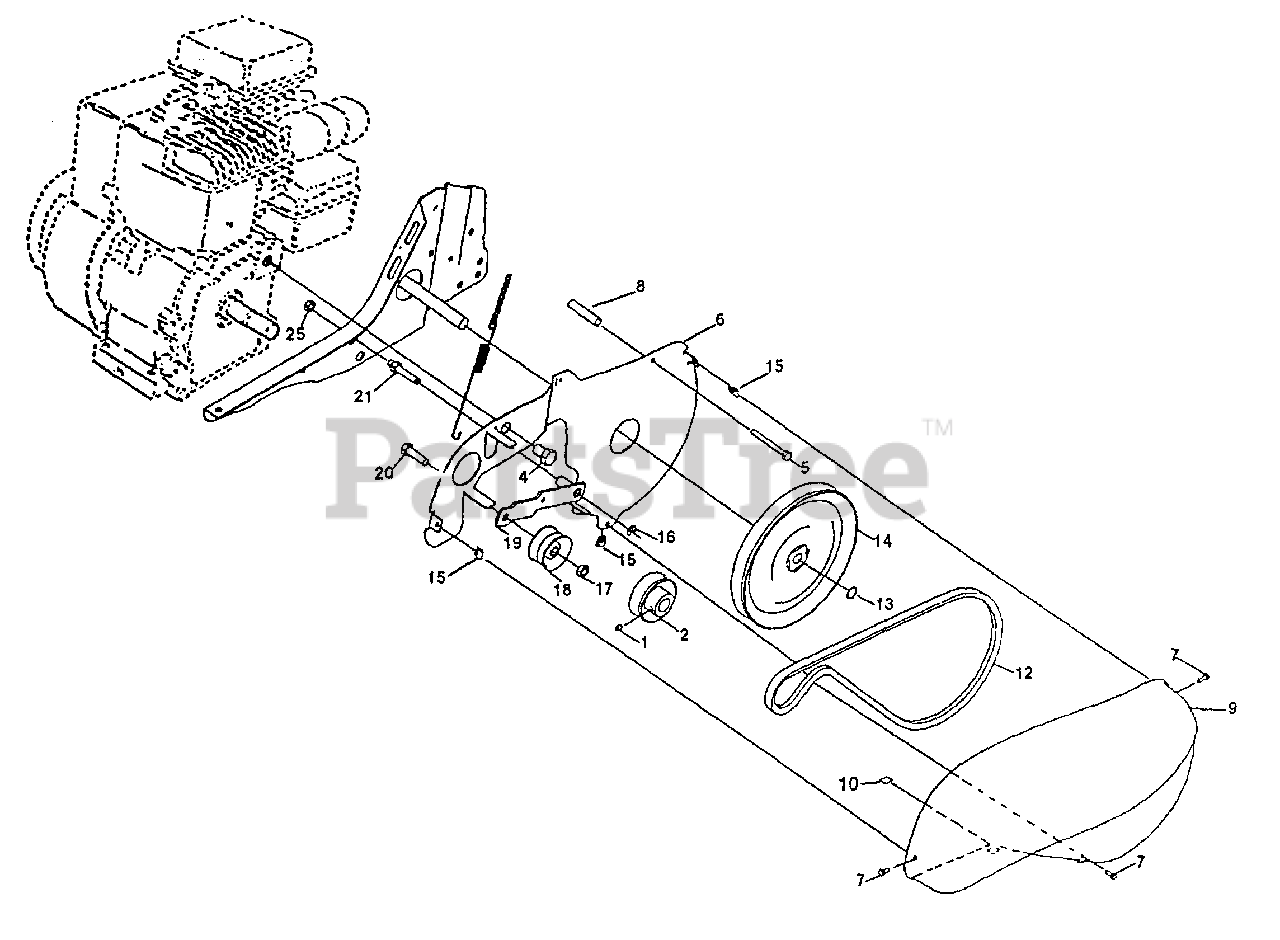

Belt Guard And Pulley Assembly Parts Diagram

  • Title

1

Poulan 23230506

Screw, Set, Forged Socket, Headless 5/16-18 x 3/8
(Superseded to 823230506)

$4.99

$

In Stock, only 2 left!

0

2

Poulan 130812

Pulley, Engine
(Superseded to 592642101)

$13.99

$

In Stock, only 2 left!

0

4

Poulan 74610812

Bolt, Hex 1/2-20 x 3/4
(Superseded to 583614001)

$4.99

$

Usually ships in 3-10 days

0

5

Poulan 17490440

Bolt Thd Roller 1/4-20 x 2-1/2
(Superseded to 583789401)

$5.99

$

Usually ships in 3-10 days

0

6

Poulan 165770

Shield Inner Belt Guard
(Superseded to 583017301)

$12.99

$

Usually ships in 3-10 days

0

7

Poulan 165503

Screw Hex Wsh Head #8-18 x 1/2
(Superseded to 584450201)

$2.99

$

Usually ships in 3-10 days

0

8

Poulan 139155

Spacer Split .523 x .718 x 2
(Superseded to 532139155)

$6.99

$

Usually ships in 3-10 days

0

9

Poulan 165768X505

Guard, Belt
(Superseded to 583687801)

$30.99

$

Usually ships in 3-10 days

0

10

Poulan 109227X

Pad, Idler
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

12

Poulan 9180R

V-Belt
(Superseded to 532009180)

$30.99

$

In Stock, only 3 left!

0

13

Poulan 12000028

Ring, Retainer (AYP part number)

$0.99

$

Usually ships in 3-10 days

0

14

Poulan 151223

Pulley, Transmission
(Superseded to 532151223)

$39.99

$

Usually ships in 3-10 days

0

15

Poulan 165504

Nut J Clip #8
(Superseded to 574987901)

$

$

Not available

16

Poulan 12000036

Ring, Klip
(Superseded to 812000036)

$6.49

$

In Stock, only 1 left!

0

17

Poulan 73350600

Nut, Hex, Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

18

Poulan 161806

Pulley, Idler
(Superseded to 532161806)

$31.99

$

Usually ships in 3-10 days

0

19

Poulan 162290

Idler Arm Assembly
(Superseded to 583005201)

$5.99

$

Usually ships in 3-10 days

0

20

Poulan 74760620

Bolt, Hex 3/8-16 x 1-1/4
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

21

Poulan 106968X

Shaft, Idler Arm
(Superseded to 532106968)

$15.99

$

Usually ships in 3-10 days

0

25

Poulan 73350500

Nut, Hex, Jam 5/16-18
(Superseded to 873350500)

$8.99

$

Usually ships in 3-10 days

0
