FT 35 A - Poulan Pro Front-Tine Tiller Wheel and Depth Stake Assembly Parts Diagram

Front-Tine Tiller

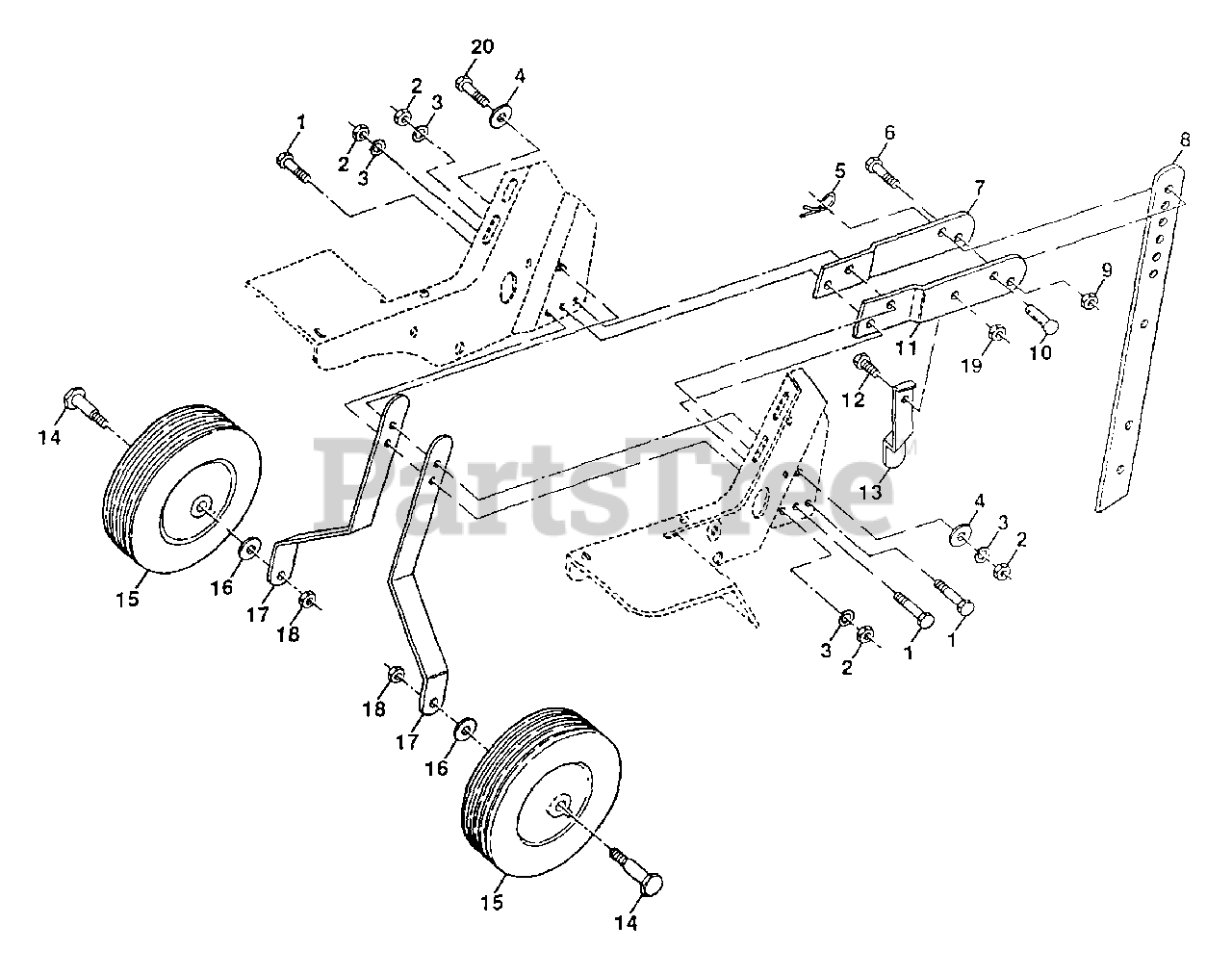

Wheel and Depth Stake Assembly Parts Diagram

  • Title
1

Poulan 74760520

Bolt, Hex 5/16-18 x 1-1/4

$2.49

$

Usually ships in 3-10 days

0

2

Poulan 73220500

Nut, Hex 5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

3

Poulan 10040500

Washer, Lock 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

4

Poulan 19121414

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

5

Poulan 4921H

Clip, Hairpin
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

6

Poulan 74780628

Bolt, Fin, Hex 3/8-16 x 1-3/4
(Superseded to 582740701)

$6.49

$

In Stock, only 2 left!

0

7

Poulan 318J

Support, Depth Stake, R.H.
(Superseded to 583732001)

$

$

Not available

8

Poulan 9193R500

Depth Stake
(Superseded to 532144540)

$

$

Not available

9

Poulan 73800600

Locknut, w/Insert 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 9551R

Pin, Clevis

$

$

Not available

11

Poulan 317J500

Support, Depth Stake, L.H.
(Superseded to 583731901)

$

$

Not available

12

Poulan 74760512

Bolt, Hex 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

13

Poulan 325J

Spring, Depth Stake
(Superseded to 583732201)

$

$

Not available

14

Poulan 121117X

Bolt, Shoulder
(Superseded to 532121117)

$8.99

$

In Stock, Qty 5

0

15

Poulan 127858

Wheel
(Superseded to 539127858)

$56.99

$

Usually ships in 3-10 days

0

16

Poulan 19131311

Washer 13/32 x 13/16 x 11 Ga
(Superseded to 582732401)

$6.99

$

In Stock, Qty 12

0

17

Poulan 674H4

Bracket, Wheel

$

$

Not available

18

Poulan 73680600

Nut, Crownlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 73800500

Locknut, w/Insert 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

20

Poulan 74760524

Bolt Hex 5/16-18 x 1-1/2

$2.49

$

Usually ships in 3-10 days

0
