FT 35 A - Poulan Pro Front-Tine Tiller Belt Guard and Pulley Assembly Parts Diagram

Front-Tine Tiller

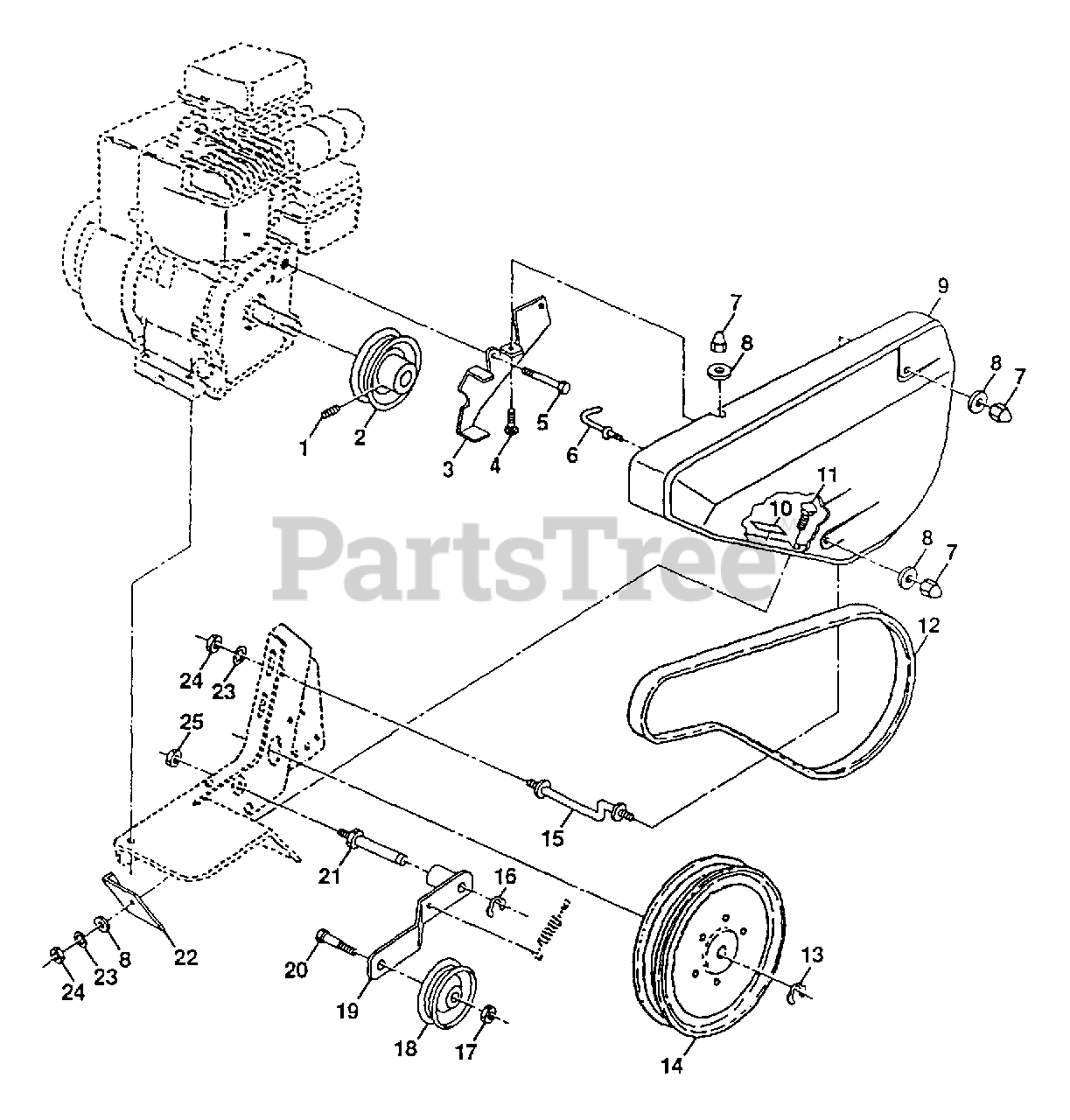

Belt Guard and Pulley Assembly Parts Diagram

  • Title
1

Poulan 23230506

Screw, Set, Forged Socket, Headless 5/16-18 x 3/8
(Superseded to 823230506)

$4.99

$

In Stock, only 2 left!

0

2

Poulan 130811

Pulley, Engine (AYP part number)

$

$

Not available

3

Poulan 122955X

Bracket Assembly, Guard, Belt

$5.99

$

Usually ships in 3-10 days

0

4

Poulan 72140404

Bolt, Carriage 1/4-20 x 1/2
(Superseded to 872140404)

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 74770812

Bolt, Hex 1/2-20 x 3/4

$2.49

$

Usually ships in 3-10 days

0

6

Poulan 121463X

Keeper, Belt, Transmission Pulley

$

$

Not available

7

Poulan 104213X

Nut, Cap 1/4-20
(Superseded to 583644101)

$6.49

$

Usually ships in 3-10 days

0

8

Poulan 19091016

Washer 9/32 x 5/8 x 16 Ga.
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 131157X421

Guard, Belt

$12.99

$

Usually ships in 3-10 days

0

10

Poulan 109227X

Pad, Idler
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

11

Poulan 72140406

Bolt, Carriage 1/4-20 x 3/4
(Superseded to 872140406)

$4.99

$

Usually ships in 3-10 days

0

12

Poulan TH3H390

V-Belt
(Superseded to 583784801)

$30.99

$

Usually ships in 3-10 days

0

13

Poulan 12000028

Ring, Retainer (AYP part number)

$0.99

$

Usually ships in 3-10 days

0

14

Poulan 151939

Pulley, Transmission
(Superseded to 584319201)

$7.99

$

Usually ships in 3-10 days

0

15

Poulan 532132213

Bolt, Belt Guard

$

$

Not available

16

Poulan 12000036

Ring, Klip
(Superseded to 812000036)

$6.49

$

In Stock, only 1 left!

0

17

Poulan 73350600

Nut, Hex, Jam 3/8-16
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

18

Poulan 75673

Pulley, Idler
(Superseded to 532009178)

$1.99

$

Usually ships in 3-10 days

0

19

Poulan 674A30

Idler Arm Assembly

$

$

Not available

20

Poulan 74760620

Bolt, Hex 3/8-16 x 1-1/4
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

21

Poulan 106968

Shaft, Idler Arm (AYP part number)

$

$

Not available

22

Poulan 105358X

Shield, Dirt
(Superseded to 583645201)

$2.99

$

Usually ships in 3-10 days

0

23

Poulan 10040400

Washer, Lock 1/4
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

24

Poulan 73220400

Nut, Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

25

Poulan 73350500

Nut, Hex, Jam 5/16-18
(Superseded to 873350500)

$8.99

$

Usually ships in 3-10 days

0
