FT 3 KA - Poulan Pro Front-Tine Tiller TRANSMISSION Parts Diagram

Front-Tine Tiller

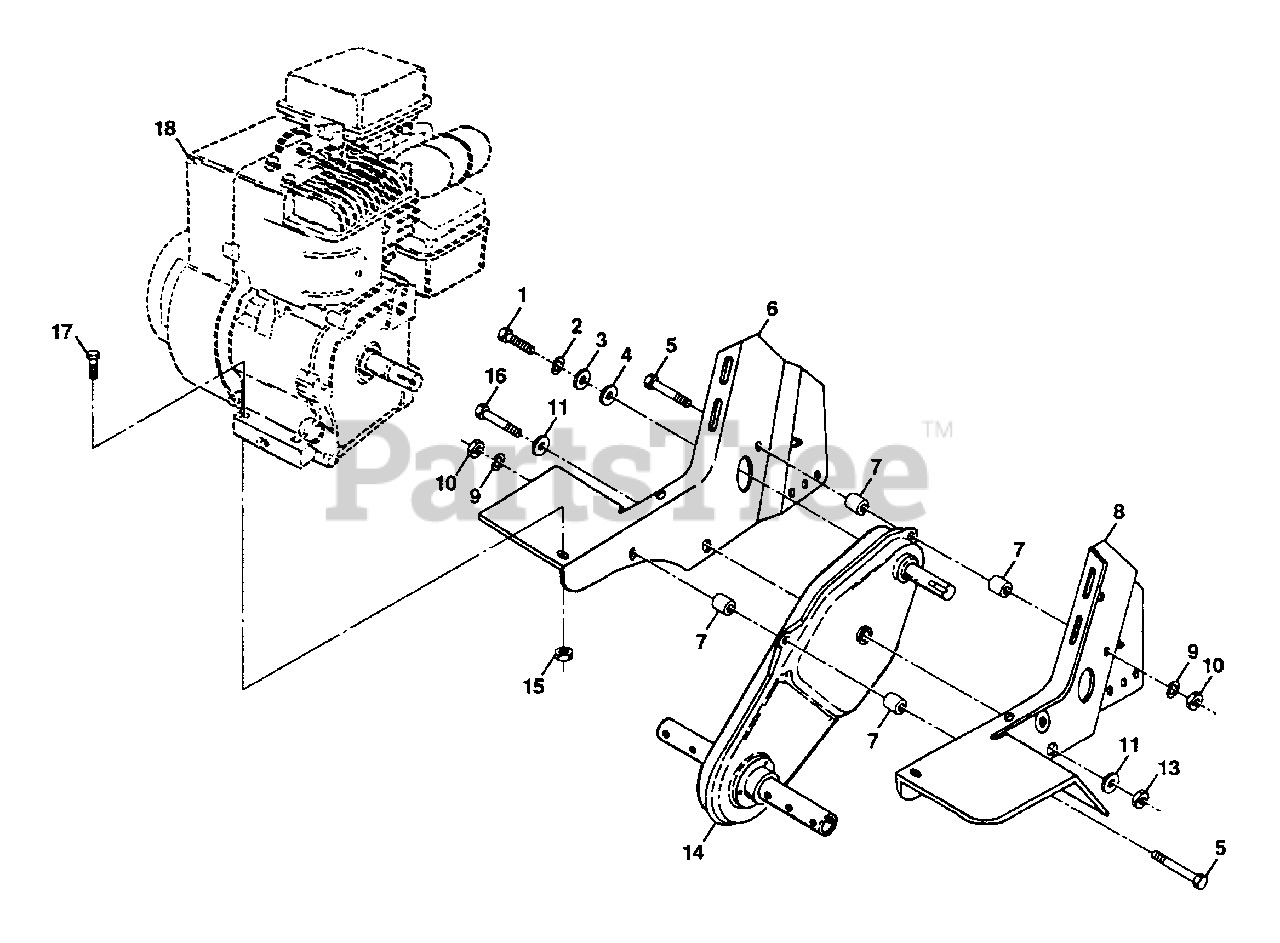

TRANSMISSION Parts Diagram

  • Title

1

Poulan 874610412

Bolt, Hex 1/4-28 x 3/4 Gr. 5 (AYP part number)
(Superseded to 582738901)

$4.99

$

In Stock, only 1 left!

0

2

Poulan 810040400

Washer, Lock 1/4 (AYP part number)
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

3

Poulan 819092016

Washer 9/32 x 1-1/4 x 16 Ga. (AYP part number)

$6.99

$

In Stock, only 1 left!

0

4

Poulan 819091412

Washer 9/32 x 7/8 x 12 Ga. (AYP part number)
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

5

Poulan 874760544

Bolt, Hex 5/16-18 x 2-3/4 (AYP part number)
(Superseded to 596218601)

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 532125357

Bracket, Engine, R.H. (AYP part number)

$

$

Not available

7

Poulan 532009173

Spacer, Split (AYP part number)

$

$

Not available

8

Poulan 532125358

Bracket, Engine, L.H. (AYP part number)

$11.99

$

Usually ships in 3-10 days

0

9

Poulan 810040500

Washer, Lock 5/16 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

10

Poulan 873220500

Nut, Hex 5/16-18 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 819131311

Washer 13/32 x 13/16 x 11 Ga. (AYP part number)
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

13

Poulan 873800600

Locknut, w/Insert 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 532105391

Transmission (AYP part number)

$

$

Not available

15

Poulan 873510500

Nut, Keps 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

16

Poulan 874780652

Bolt, Hex 3/8-16 x 3-1/4 (AYP part number)
(Superseded to 583614901)

$2.99

$

Usually ships in 3-10 days

0

17

Poulan 874760524

Bolt, Hex 5/16-18 x 1-1/2 (AYP part number)
(Superseded to 74760524)

$2.49

$

Usually ships in 3-10 days

0
