FT 3 C - Poulan Pro Front-Tine Tiller WHEEL AND DEPTH STAKE ASSEMBLY Parts Diagram

Front-Tine Tiller

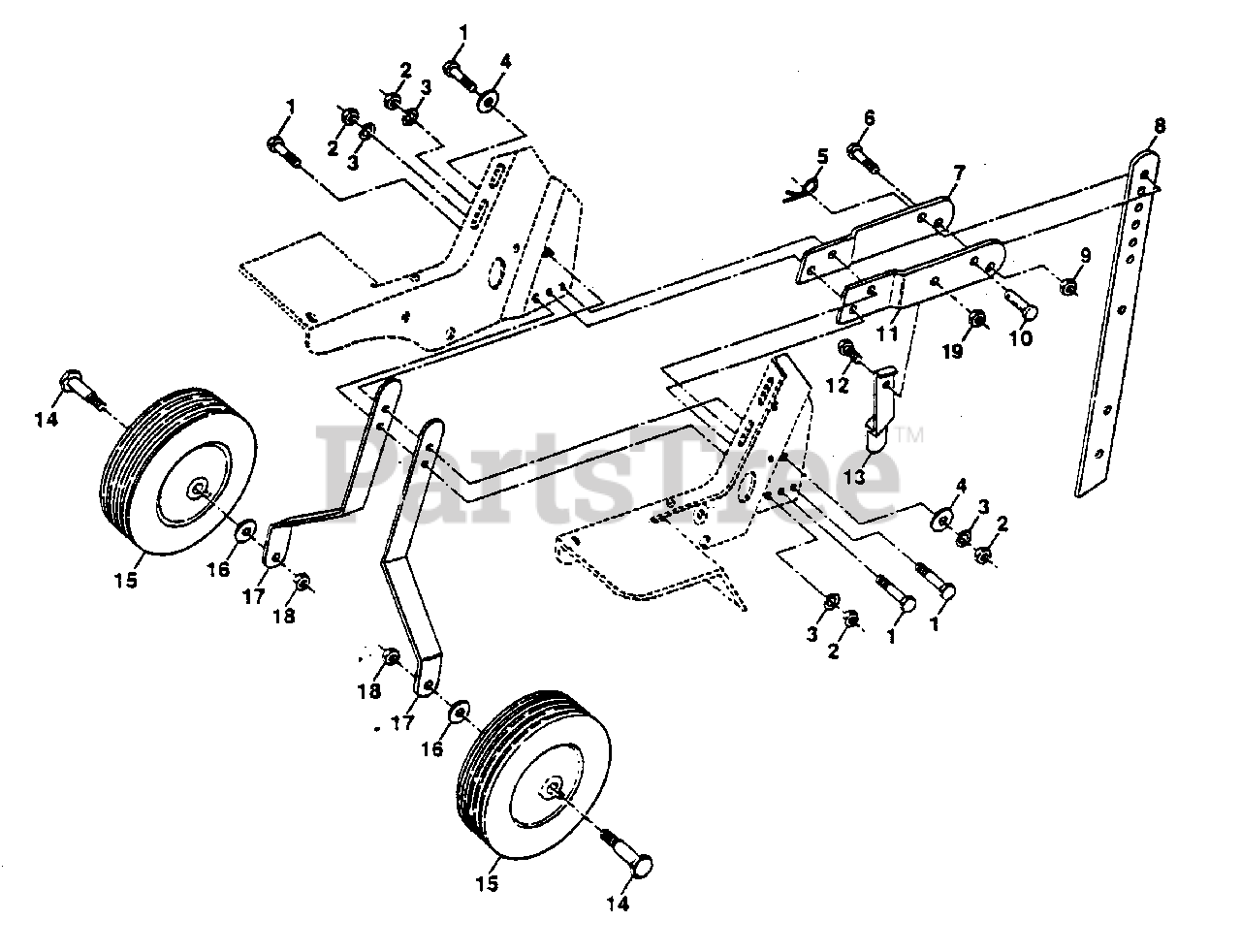

WHEEL AND DEPTH STAKE ASSEMBLY Parts Diagram

  • Title

1

Poulan 874760520

Bolt, Hex 5/16-18 x 1-1/4 (AYP part number)
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

2

Poulan 873220500

Nut, Hex 5/16-18 (AYP part number)

$6.49

$

Usually ships in 3-10 days

0

3

Poulan 810040500

Washer, Lock 5/16 (AYP part number)

$4.99

$

Usually ships in 3-10 days

0

4

Poulan 819121414

Washer 3/8 x 7/8 x 14 Ga. (AYP part number)
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

5

Poulan 532124961

Clip, Hairpin (AYP part number)
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

6

Poulan 874780628

Bolt, Fin, Hex 3/8-16 x 1-3/4 (AYP part number)
(Superseded to 582740701)

$6.49

$

In Stock, only 2 left!

0

7

Poulan 532000318

Support, Depth Stake, R.H. (AYP part number)

$

$

Not available

8

Poulan 532144541

Depth Stake (AYP part number)

$

$

Not available

9

Poulan 873800600

Locknut, w/Insert 3/8-16 (AYP part number)
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 532009551

Pin, Clevis (AYP part number)

$

$

Not available

11

Poulan 532000317

Support, Depth Stake, L.H. (AYP part number)

$

$

Not available

12

Poulan 874760512

Bolt, Hex 5/16-18 x 3/4 (AYP part number)
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

13

Poulan 532000325

Spring, Depth Stake (AYP part number)

$

$

Not available

14

Poulan 532121117

Bolt, Shoulder (AYP part number)

$8.99

$

In Stock, Qty 5

0

15

Poulan 532009186

Wheel (AYP part number)

$

$

Not available

16

Poulan 819131311

Washer 13/32 x 13/16 x 11 Ga. (AYP part number)
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

17

Poulan 532144538

Bracket, Wheel (AYP part number)

$

$

Not available

18

Poulan 873680600

Nut, Crownlock 3/8-16
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

19

Poulan 873800500

Locknut, w/Insert 5/16-18 (AYP part number)
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0
